H.5: Regen Resistor Specifications

H.5.1: XTL-RA-03, XTL-RA-04 Specifications

Specifications for Copley's standard regen resistors are described below.
Model Resistance
XTL-RA-03 30 ohms
XTL-RA-04 15 ohms
High Temperature Risk.
!
Setting Default Continuous Power for a standard Copley regen resistor to a value greater
than the default of 65 W may cause the resistor casing to heat to temperatures that could
cause injury. If higher settings are required, contact Copley Controls customer support.
WARNING
Failure to heed this warning can cause equipment damage or injury.

H.5.2: XTL-RA-03, XTL-RA-04 Dimensions

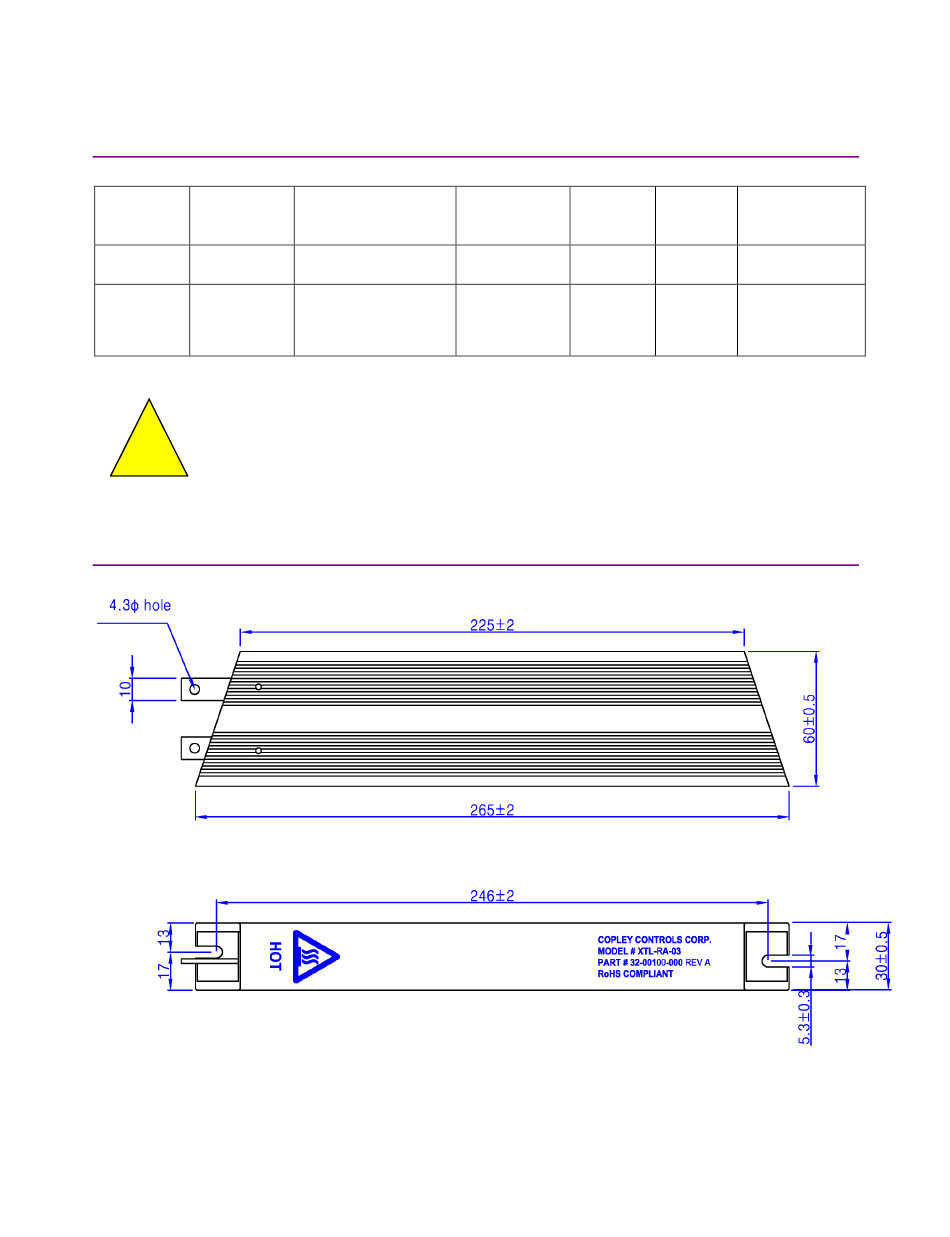

The diagram below shows XTL-RA-03 and XTL-RA-04 mounting dimensions (in mm).
198
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Default Max
Continuous Power Continuous
Power
65 W 400 W
65 W 400 W
Xenus XSL User Guide
Peak Peak For Use With
Power Power
Time
5 kW 1000 ms XSL-230-18
XSL-230-18-R
10 kW 1000 ms XSL-230-36
XSL-230-36-R
XSL-230-40
XSL-230-40-R
