Audio Visual Furniture TVCB Assembly And Mounting Instructions

Note: If you cannot understand these instructions or are concerned about safety of the installation
Contact a qualified contractor or contact AVFI at 1-877-834-3876.
Confirm all hardware is included before you begin assembly.
Not all hardware supplied will be used depending on the manufacturer of your display/s.
Supplied Parts:
Hardware
Bag:
TVCB
Rev 2

Supplied Hardware:

Multiwasher

Tools required:

Attaching to Desktop TV

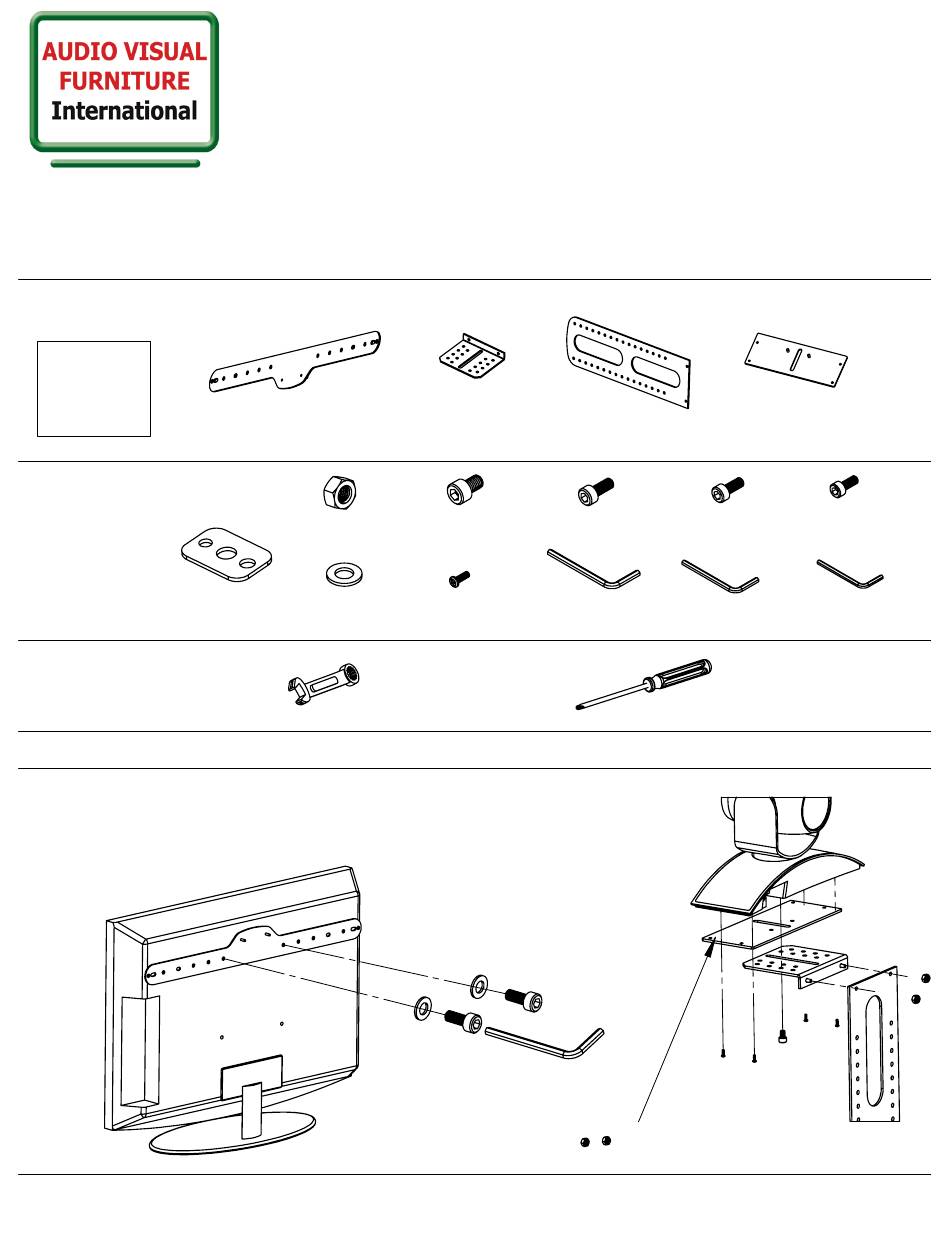

Step 1
Use the set of provided bolts
(M5, M6, M8) that matches
your TV's mounting holes
to install the TVCB_1.
288 Don Hillock Drive
Toll Free: 1-877-834-3876
TVCB
Assembly and mounting Instructions
Thank you for purchasing AVFI's TVCB camera mounting system.
This product was designed for tabletop and wall mounting of a
video conferencing camera to 32- 60" TV's.
TV-Bracket
10-32 Nut
(6)
Washers
(2)
(6)
AUDIO VIDEO FURNITURE INTERNATIONAL
Aurora , Ontario L4G 0G9
Camera
plate
1/4-20 x 3/8" M8 x 20
(1) (2)
M3 x 8
8mm Hex Key
(4x)
(1)
3/8" Wrench
or Socket
Step 2
Use the included 10-32 nuts
to assemble the camera plate/s and
neck.
Use the provided 1/4-20 or
M3 bolts to secure the video
conferencing camera.
(Method will vary
depending on camera)
Wide
Bracket
(optional)
Fax: 1-905-751-1488 Local:905-751-1459
Camera Wide Camera
Neck plate
M6 x 20
(2)
6mm Hex Key
(1)
Philips
Screwdriver
www.video-furn.com
