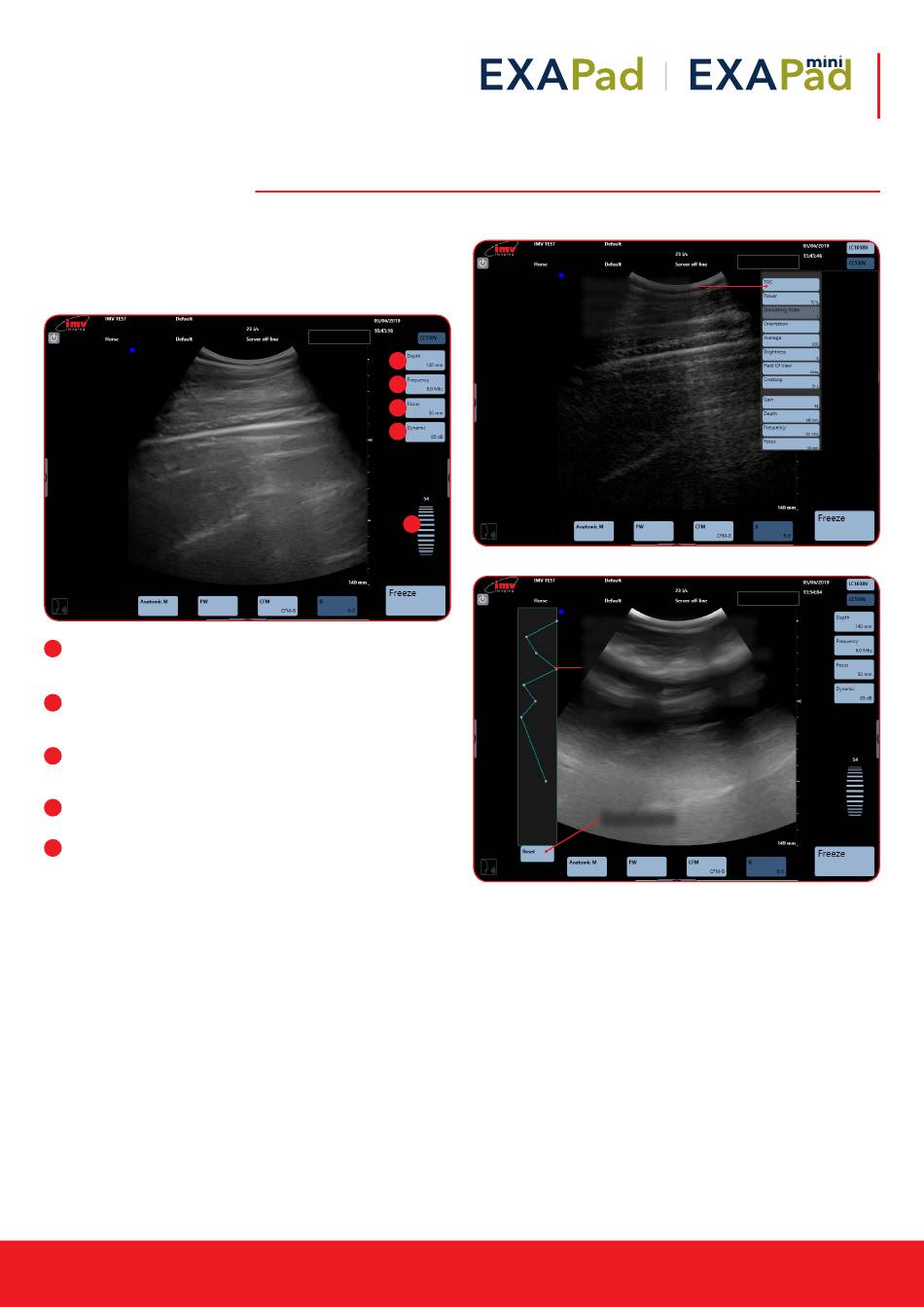

4. B Mode Imaging

The B-mode is the basis for other available modes.
When using one of the combined modes, you can return to the
B-Mode by pressing the button "B".
The main adjustment parameters for the B-mode are always
displayed on the screen and gives quick access.
Depth: Increase and decrease of the examination depth by
1
pressing the button "Depth". Maximum depth varies by probe.
Updated Depth is displayed on depth button.
Frequency: Each probe has 3 frequency settings within its
2
bandwidth. The updated frequency is displayed on the
frequency button.
Focus: The position of the focal point on screen is adjusted by
3
the 'Focus' button. The updated position of focus is displayed
on the focus button
4
Dynamic: Increase and decrease dynamic range. The
updated range is displayed on the Dynamic button.
Gain: Scroll up and down to adjust gain. Gain units go from
5
1-100 and is displayed above the gain scroller.
The advanced adjustment menu is accessible when pressing on
the arrow button on the right side of the screen
4.1 TCG – Time Gain Control
1
2
3
4
5
Instruction manual
Time gain control
curve is displayed
by selecting 'ON'
on the TGC menu.
Each zone is represented by
a blue dot on the curve. The
number of adjustment markers
depends on the exploration
depth. Move each dot to the
left or right to adjust the time
gain control curve.
Reset curve
www.imv-imaging.com | 9
