Web Server

Section 3: Web Server

The internal web server presents two classes of web pages; Setup pages and Control pages. Setup
pages are used by an installer to provision and configure the XW-110. The Control pages (in comparison
with other ControlByWeb devices) don't control anything; however, it displays temperature status
information. The Control Page displays measurement and status information for the user.
To access the setup pages, enter the following URL in the address bar of your web browser:
http://192.168.1.2/setup.html
To access the control page, enter the following URL in the address bar of your web browser:
http://192.168.1.2
The internal web server is enabled by default in the stand-alone mode and disabled in the slave mode. If
you wish to access to the web server when it is disabled, press and hold the WPS button for 10
seconds. This will temporarily enable the web-server for 5 minutes or until the unit is rebooted.
Note that if you are accessing the unit as an access point the above IP address will work even if you
have changed the IP address in the setup pages. If you are accessing the unit through the network after
it has been configured (and the web server remains enabled) you will use the IP address that was
assigned to the device.
If the XW-110 has been added to a network using WPS, it will use DHCP and you will need to use the IP
address assigned to it. This can be found in the DHCP server, or by using mDNS. The mDNS name is
http://xw-110.local/ for the XW-110 and http://xw-110p.local/ for the XW-110-Plus.

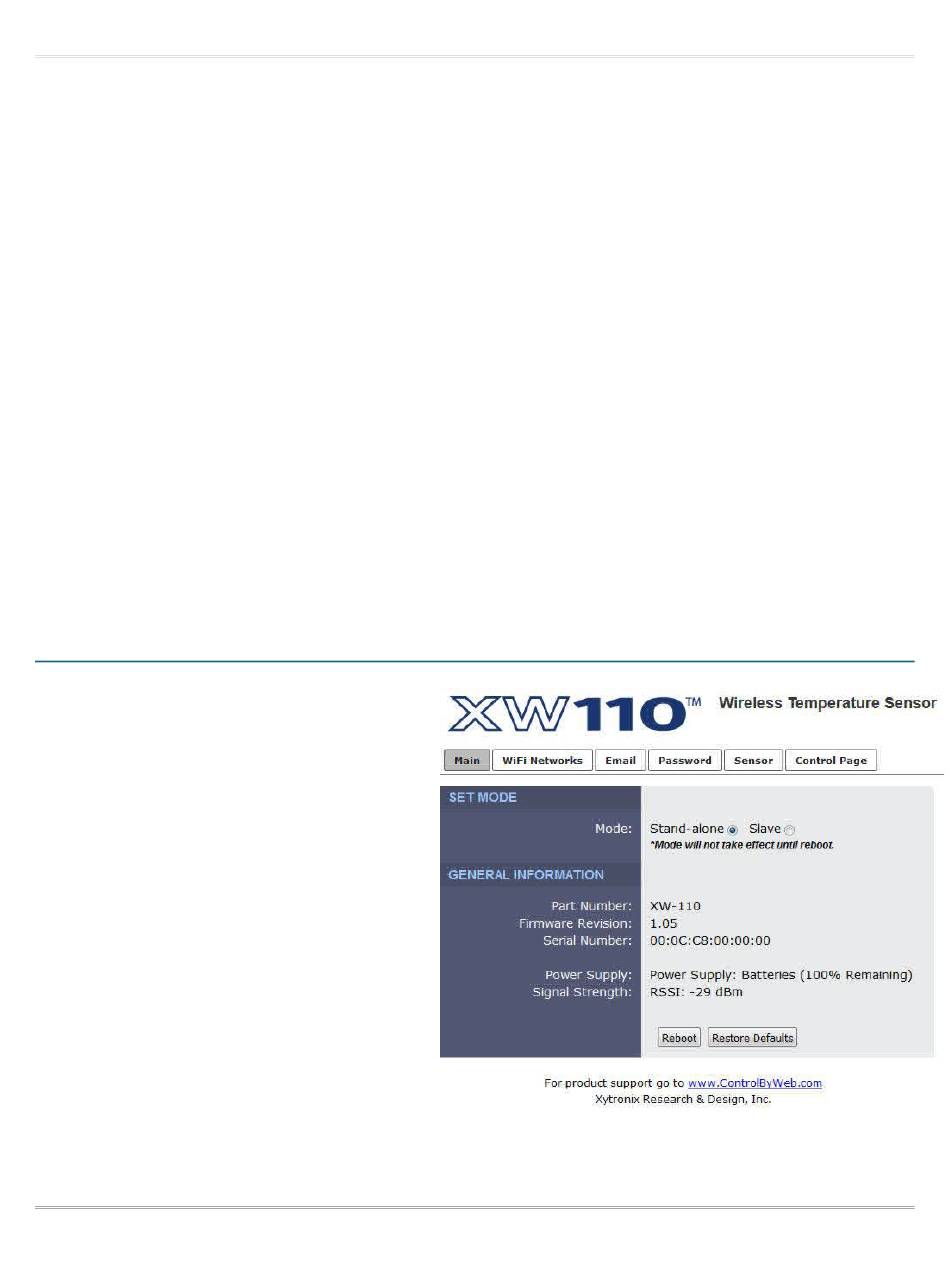

3.1 Main Tab
This is the initial page that is displayed
when setup.html is entered in the address
bar of the browser. It displays model and
serial number information, and has
navigation tabs which allow access to the
configuration and setup settings.
The web pages and communication
settings for the XW-110 and XW-110-
Plus have many common settings.
Unique settings specific for each model
are shown where applicable.
Page 14
XW-110™ WiFi Temperature Sensor Users Manual
The XW-110-Plus has an extra tab (Date/Time) and Slave mode is not
available.
