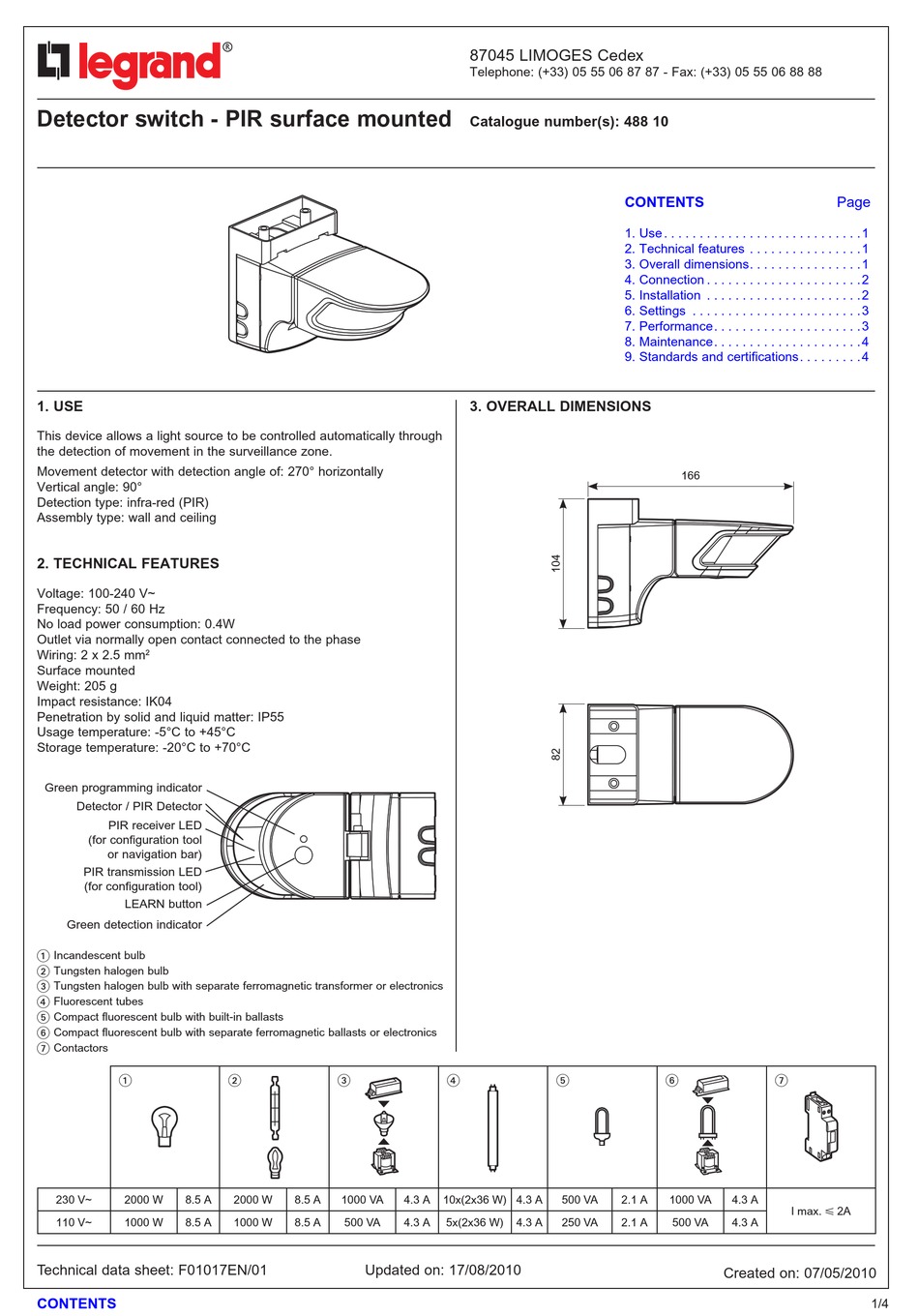

Detector switch - PIR surface mounted
1. USE
This device allows a light source to be controlled automatically through
the detection of movement in the surveillance zone.
Movement detector with detection angle of: 270° horizontally
Vertical angle: 90°
Detection type: infra-red (PIR)
Assembly type: wall and ceiling
2. TECHNICAL FEATURES
Voltage: 100-240 V~
Frequency: 50 / 60 Hz
No load power consumption: 0.4W
Outlet via normally open contact connected to the phase
Wiring: 2 x 2.5 mm
2
Surface mounted
Weight: 205 g
Impact resistance: IK04
Penetration by solid and liquid matter: IP55
Usage temperature: -5°C to +45°C
Storage temperature: -20°C to +70°C
Green programming indicator
Detector / PIR Detector
PIR receiver LED
(for configuration tool
or navigation bar)
PIR transmission LED
(for configuration tool)
LEARN button
Green detection indicator
1
Incandescent bulb
2
Tungsten halogen bulb
3
Tungsten halogen bulb with separate ferromagnetic transformer or electronics
4
Fluorescent tubes
5
Compact fluorescent bulb with built-in ballasts
6
Compact fluorescent bulb with separate ferromagnetic ballasts or electronics
7
Contactors
1
230 V~
2000 W
8.5 A
110 V~
1000 W
8.5 A
Technical data sheet: F01017EN/01
CONTENTS
2
3
2000 W
8.5 A
1000 VA
1000 W
8.5 A
500 VA
Updated on: 17/08/2010
87045 LIMOGES Cedex
Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88
Catalogue number(s): 488 10
3. OVERALL DIMENSIONS
4
5
4.3 A
10x(2x36 W) 4.3 A
500 VA
4.3 A
5x(2x36 W)
4.3 A
250 VA
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical features . . . . . . . . . . . . . . . .1
3. Overall dimensions. . . . . . . . . . . . . . . .1
4. Connection . . . . . . . . . . . . . . . . . . . . . .2
5. Installation . . . . . . . . . . . . . . . . . . . . . .2
6. Settings . . . . . . . . . . . . . . . . . . . . . . . .3
7. Performance. . . . . . . . . . . . . . . . . . . . .3
8. Maintenance. . . . . . . . . . . . . . . . . . . . .4
9. Standards and certifications. . . . . . . . .4
166
6
7
2.1 A
1000 VA
4.3 A
I max. 2A
2.1 A
500 VA
4.3 A
Created on: 07/05/2010
Page
1/4
Advertisement
Table of Contents
Related Manuals for LEGRAND LIMOGES Cedex 87045
Summary of Contents for LEGRAND LIMOGES Cedex 87045
- Page 1 87045 LIMOGES Cedex Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88 Detector switch - PIR surface mounted Catalogue number(s): 488 10 CONTENTS Page 1. Use ......1 2.
- Page 2 Detector switch - PIR surface mounted Catalogue numbers(s): 488 10 4. CONNECTION 5. INSTALLATION Number of terminals: 4 Wall Type of terminals: automatic Terminal capacitiy: 2x2.5 mm Stripping length: 8 mm Wiring with auxiliary control: Manual switch-on/ Automatic switch-off (Manual on/Auto off) CLICK 8.5 A max.
- Page 3 Detector switch - PIR surface mounted Catalogue numbers(s): 488 10 6. SETTINGS 6. SETTINGS (continued) - Parameters: - Modification of the parameters by the configuration tools Detection parameters Default Modifiable parameters Configuration value tools 88230 88235 3, 5, 10, 15, 20 mins −...
- Page 4 Detector switch - PIR surface mounted Catalogue numbers(s): 488 10 8. MAINTENANCE Keep the lens clean. Clean the surface with a cloth. Do not use: acetone, tar-removing cleaning agents or trichloroethylene. Maintenance with the following products: - Hexane (En 60669-1), - Methylated spirit, - Soapy water, - Diluted ammonia,...
