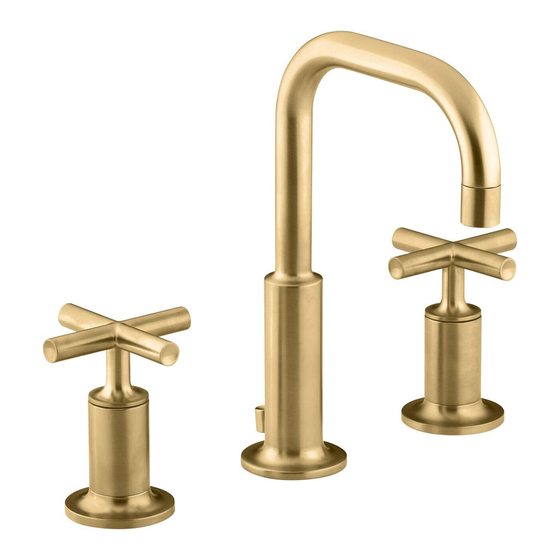

Kohler PURIST 14406 Installation Instructions

Kohler PURIST 14406 Installation Instructions

8″ widespread lavatory faucet, 8″ widespread tall lavatory faucet

Advertisement

Quick Links

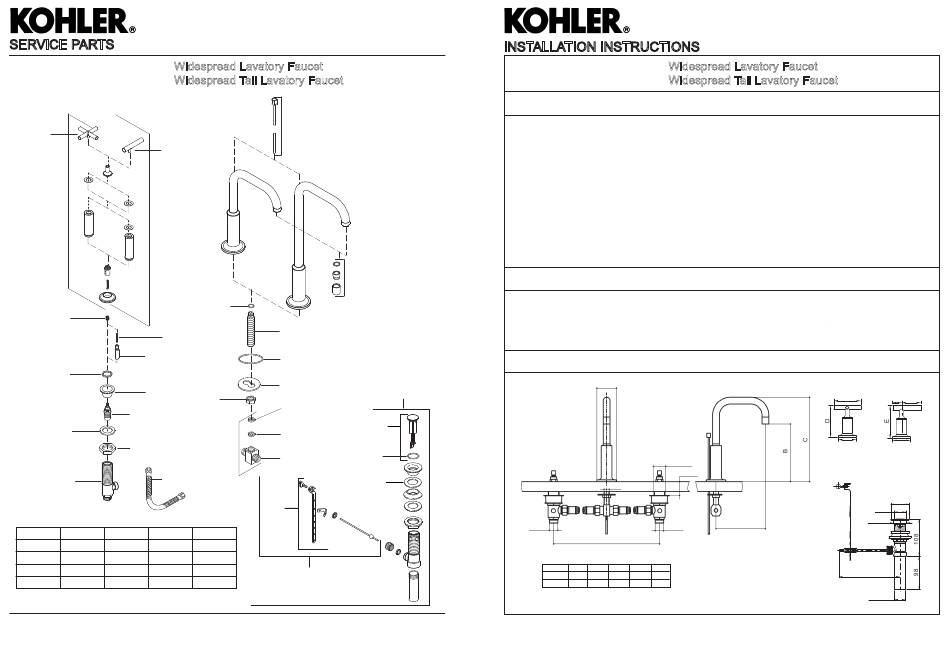

SERVICE PARTS
14406
8" Widespread Lavatory Faucet
14408
8" Widespread Tall Lavatory Faucet
1009889**
Cross Handle
1009890**
Lever Handle
1059034-C**(right)
1059036-C**(right)
1059034-H**(left)
1059036-H**(left)
Cross Handle Kit
High Cross Handle Kit
(Only for 14406-3)
(Only for 14408-3)
1059035-C**(right)
1059037-C**(right)
1059035-H**(left)
1059037-H**(left)
Lever Handle Kit
High Lever Handle Kit
(Only for 14406-4)
(Only for 14408-4)
78125
Spline Adapter
3002641
Screw
(Only for 14408)
1012840
Stem Extension
(Only for 14408)
1047530
Gasket
1008705
Dished Washer
Valve
830915
Washer
864342
Nut
880062
1112775
Hose
Side Body Assy
SKU
Handle
Velve(left) Velve(right) Handle Kit
14406-3** 1009889**
835749
835749
14406-4** 1009890**
835749
835750
14408-3** 1009889**
835749
835749
14408-4** 1009890**
835749
835750
**Color code must be specified when ordering
1049310-2A-A
1013347**
Lift Rod Assy
(Not for 14406-3ND/4ND)
1077948**
Aerator Kit
1060036**
(Only for Thailand)
91640
O-Ring
1017818
Shank
3006312
O-Ring
834753**
40015
Pop Up Drain
Washer
40014
(Not for 14406-3ND/4ND)
Nut
40097
Washer
880008**
40013
Stopper
Gasket
1049172
1080817
Tee Assembly
1046513
O-ring
Centre Tee
880406
Washer
1176997
Link Kit
1059034**
1059035**
1059036**
880037
Link Kit
1059037**
PURIST
Installation INSTRUCTIONS

BEFORE YOU BEGIN

All information is based on the latest product information available at the time of publication.
Kohler Co. reserves the right to make changes in product characteristics, packaging, or availability at any time
without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage. Replace as necessary.
3. Observe local plumbing codes.
4. If possible, install this faucet before installing the lavatory.

HANDLE OPERATION

Left handle opens with one-quarter turn counter clockwise. Right handle opens with one-quarter turn clockwise
(Lever Handle).
Left handle opens with one-quarter turn clockwise. Right handle opens with one-quarter turn counter clockwise
(Corss Handle).

ROUGH-IN DIMENSIONS

G1/2"
14406
14408
4
1049310-2A-A
14406
8" Widespread Lavatory Faucet
14408
8" Widespread Tall Lavatory Faucet
Ø50
Ø32MIN
45MAX
Ø13
A
G1/2"
155~440
A
B
C
D
E
127
148
216
90
92
140
221
291
126
128
PURIST
Handle Selection
76
25
55
Ø50
Ø50
Cross Handle
Lever Handle
(14406-3/3ND)
(14406-4/4ND)
(14408-3)
(14408-4)
Ø54
Ø32
Ø36.5
176.5
Ø31.75
1
