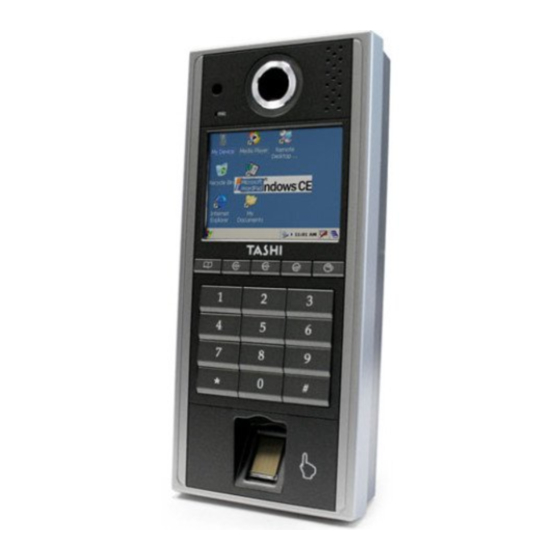

- Page 1 A Versatile Multi-Function Terminal Installation Guide 400640G Version 1.2...
-
Page 2: Mounting Position
3*16mm Mounted Screw (STP-35) x4 3*25mm Plastic Conical Anchors x4 2*5mm Screw_FPHM2-5L_TP-P x4 In Wall Metal Frame x1 Metal Spring x4 Copyright 2008 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. - Page 3 68.7º Unit: mm Take out MT380, drill a rectangle on the wall with dimension W97mm x H225mm x D35mm. Unit: mm Copyright 2008 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
- Page 4 Put the metal frame on the rectangle and mark the four screw holes location. Take out the metal frame, drill the screw holes with size 7/32 inch. Depth of screw: 30mm. Unit: mm Copyright 2008 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
- Page 5 Insert the stripped end of the wire into respective terminal block position of the male plug (See Using Terminal Block on page 14), then tighten the lock screw to secure the wire. Lock Screw Copyright 2008 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
- Page 6 Locate the I/O panel on MT380’s rear cover, and remove the I/O panel by twisting a Philips screwdriver on the cross mark. Insert the terminal block plug into the female socket of MT380. Copyright 2008 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
- Page 7 Locate four In Wall Mounting Holes on MT380: Put four Metal Springs on MT380 and screw them with four Screw_FPHM2-5L_TP-P to com- bine the terminal and metal springs. Copyright 2008 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
- Page 8 10. Put the terminal in the rectangle hole and mount MT380 terminal on the metal frame. (Only the panel of the terminal is exposed) Side View of MT380 In Wall Unit: mm Copyright 2008 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
-
Page 9: On Wall Installation
You can adjust the height accordingly to fit the pan- toscopic angle 68.7º. 68.7º Unit: mm Copyright 2008 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. - Page 10 Take out MT380, put the metal frame on the wall and mark the four screw holes location. Take out the metal frame, drill the screw holes with size 7/32 inch. Depth of screw: 30mm. Unit: mm Copyright 2008 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
- Page 11 Insert the stripped end of the wire into respective terminal block position of the male plug (See Using Terminal Block on page 14), then tighten the lock screw to secure the wire. Lock Screw Copyright 2008 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
- Page 12 Locate the I/O panel on MT380’s rear cover, and remove the I/O panel by twisting a Philips screwdriver on the cross mark. Insert the terminal block plug into the female socket of MT380. Copyright 2008 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
- Page 13 Locate four On Wall Mounting Holes on MT380. Mount the terminal and screw the bottom part of the terminal with one Screw_M3*6 T10. Copyright 2008 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
-
Page 14: Using Terminal Block
D2+ and D2- are the positive and negative nodes of the external power input. D2 = High Digit input2 = High D2 = Low Digit input2 = Low Copyright 2008 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
