3001434-2006-09-01.fm
GB
EBC12-EU-01
EXHAUSTO A/S
Odensevej 76
DK-5550 Langeskov
Tel. +45 65 66 12 34
Fax +45 65 66 11 10
exhausto@exhausto.dk
www.exhausto.dk
Product Instruction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EBC12 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Exhausto EBC12 Series

Summary of Contents for Exhausto EBC12 Series

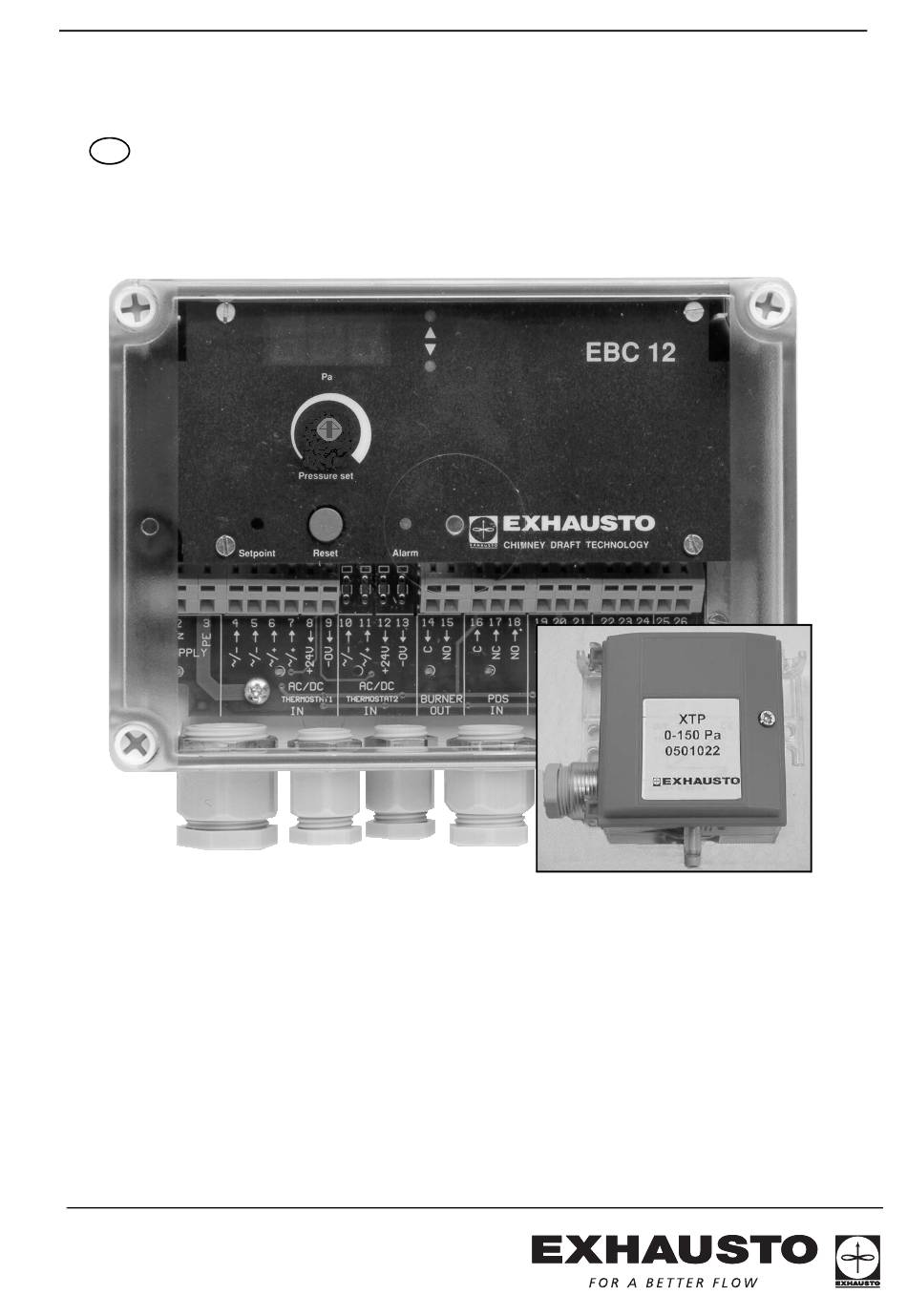

  • Page 1 Product Instruction 3001434-2006-09-01.fm EBC12-EU-01 EXHAUSTO A/S Tel. +45 65 66 12 34 Odensevej 76 Fax +45 65 66 11 10 DK-5550 Langeskov exhausto@exhausto.dk www.exhausto.dk...

  • Page 2: Table Of Contents

    3001434-2006-09-01.fm 2/12 Product information ____________________________________________________________________________ 3 Installation ___________________________________________________________________________________ 4 Fitting .................................. 4 Wiring.................................. 4 2.2.1 Connection examples..........................5 2.2.2 Example 1 - Voltage signal (fig. 5)......................5 2.2.3 Example 2 - Voltage free contact (fig. 6) ....................6 2.2.4 Example 3 - Extra fail-safe supervision with pressure differential switch (fig. 7) ........7 2.2.5 Example 4 - Continuous chimney fan operation (fig.

  • Page 3: Product Information

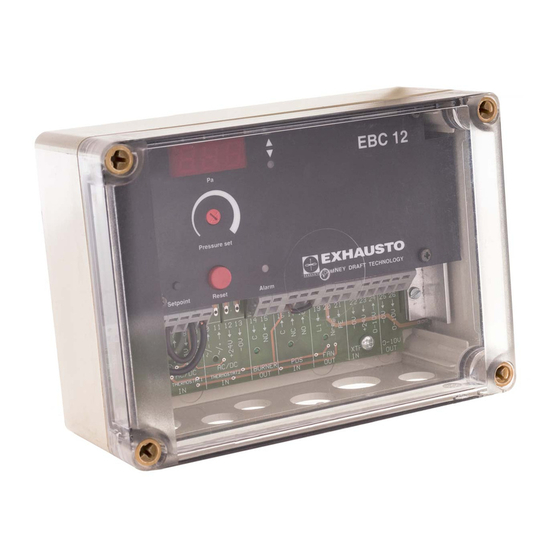

    All in- and outputs have an LED for fail-safe supervi- sion and servicing the system (fig. 1-I). EBC12 (fig. 1) is an automatic control unit with con- stant pressure regulation of EXHAUSTO chimney Additional function fans. EBC12 is used for multiple systems and for boil- The controls have two extra safety functions which ers with a modulating burner.

  • Page 4: Installation

    3001434-2006-09-01.fm 4/12 Installation Wiring Fitting The control terminals are spring-loaded. Use a suita- Fit the control and the pressure transducer in the ble size of screwdriver for fitting the conductors. boiler room. The XTP-sensor’s probe (fig. 2-A) must Fig. 4 shows how to fit the wires. be mounted in the boiler’s fluepipe or manifold.

  • Page 5: 2.2.1 Connection Examples

    3001434-2006-09-01.fm 5/12 2.2.1 Connection examples Terminals (fig. 5) The controls can be connected to a voltage signal as Supply L1 well as a voltage free set of contacts - see connection Supply N example 1 or 2. It is recommended to contact the Supply PE boiler manufacturer to ensure correct connections to Boiler thermostat.

  • Page 6: Example 2 - Voltage Free Contact (Fig. 6)

    3001434-2006-09-01.fm 6/12 2.2.3 Example 2 - Voltage free contact (fig. 6) Terminals (fig. 6) The example shows how a voltage free contact from Supply L1 the boiler control is connected to the EBC12. Supply N • Connect the power supply to terminals 1-3. Supply PE Boiler thermostat.

  • Page 7: Example 3 - Extra Fail-Safe Supervision With Pressure Differential Switch (Fig. 7)

    3001434-2006-09-01.fm 7/12 2.2.4 Example 3 - Extra fail-safe supervision with pres- Terminals (fig. 7) sure differential switch (fig. 7) Supply L1 The example shows how a pressure differential Supply N switch (PDS) must be connected to an EBC12. The Supply PE pressure differential switch carries out extra fail-safe Boiler thermostat.

  • Page 8: Example 4 - Continuous Chimney Fan Operation (Fig. 8)

    3001434-2006-09-01.fm 8/12 2.2.5 Example 4 - Continuous chimney fan operation Terminals (fig. 8) (fig. 8) Supply L1 This example shows how the EBC12 is to be con- Supply N nected if continuous chimney fan operation is Supply PE required. Boiler thermostat. Opto coupler (-)(10-230V) •...

  • Page 9: Installation

    (PDS) has not been con- sequencer or management system we recommend nected. the EXHAUSTO Relay Box ES12-EU-01 to interface a maximum of 4 boilers, use multiple relay boxes for more boilers. Please refer to the Instruction Manual If the factory setting is to be changed, the black top on ES12-EU-01 for wiring details.

  • Page 10: Commissioning

    3001434-2006-09-01.fm 10/12 Commissioning Concerning setpoint values please refer to the data of Commissioning must be carried out on the EBC12 to each boiler, anyway the following may be considered ensure a correct draught from the system. as typical values. Proceed as follows: •...

  • Page 11: Fault Finding

    3001434-2006-09-01.fm 11/12 Fault finding Observation Fault type Solution The supply LED (fig.11-A) is not lit. Defective fuse or no 1) Check the fuse (fig. 11-B) and the chimney fan. mains connection. 2) Check the wiring. Permanent light in LED for Upwards System fault.

  • Page 12: Technical Data

    Height x width x depth: 74mm x 92mm x 49mm Degree of protection: IP54 Ambient temperature: -20°C to 60°C EXHAUSTO A/S EXHAUSTO AB EXHAUSTO NORGE A/S Odensevej 76 Verkstadsgatan 13 Lilleakerveien 4 DK-5550 Langeskov S-542 33 Mariestad N-0283 Oslo Tel.: +45 6566 1234 Tel.: +46 501 39 33 40...
