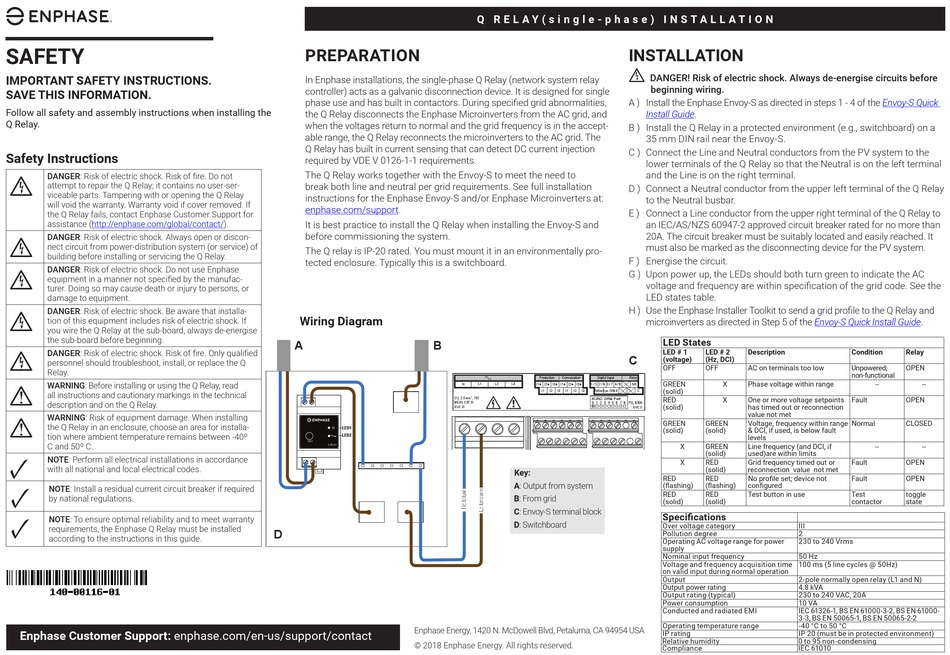

enphase Q Relay Installation

SAFETY
IMPORTANT SAFETY INSTRUCTIONS.
SAVE THIS INFORMATION.
Follow all safety and assembly instructions when installing the
Q Relay.
Safety Instructions
DANGER: Risk of electric shock. Risk of fire. Do not
+
attempt to repair the Q Relay; it contains no user-ser-
viceable parts. Tampering with or opening the Q Relay
will void the warranty. Warranty void if cover removed. If
the Q Relay fails, contact Enphase Customer Support for
assistance (http://enphase.com/global/contact/).
DANGER: Risk of electric shock. Always open or discon-
+
nect circuit from power-distribution system (or service) of
building before installing or servicing the Q Relay.
DANGER: Risk of electric shock. Do not use Enphase
+
equipment in a manner not specified by the manufac-
turer. Doing so may cause death or injury to persons, or
damage to equipment.
DANGER: Risk of electric shock. Be aware that installa-
+
tion of this equipment includes risk of electric shock. If
you wire the Q Relay at the sub-board, always de-energise
the sub-board before beginning.
+ DANGER: Risk of electric shock. Risk of fire. Only qualified
personnel should troubleshoot, install, or replace the Q
Relay.
WARNING: Before installing or using the Q Relay, read
*
all instructions and cautionary markings in the technical
description and on the Q Relay.
WARNING: Risk of equipment damage. When installing
*
the Q Relay in an enclosure, choose an area for installa-
tion where ambient temperature remains between -40º
C and 50º C.
✓
NOTE: Perform all electrical installations in accordance
with all national and local electrical codes.
✓
NOTE: Install a residual current circuit breaker if required
by national regulations.
✓
NOTE: To ensure optimal reliability and to meet warranty
requirements, the Enphase Q Relay must be installed
according to the instructions in this guide.
Enphase Customer Support: enphase.com/en-us/support/contact
PREPARATION

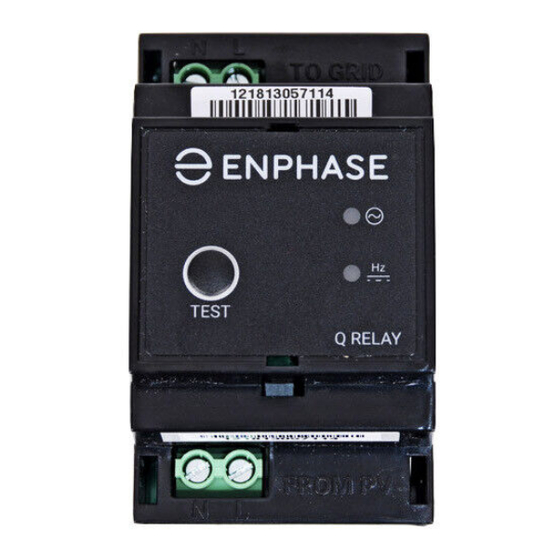

In Enphase installations, the single-phase Q Relay (network system relay
controller) acts as a galvanic disconnection device. It is designed for single
phase use and has built in contactors. During specified grid abnormalities,
the Q Relay disconnects the Enphase Microinverters from the AC grid, and
when the voltages return to normal and the grid frequency is in the accept-
able range, the Q Relay reconnects the microinverters to the AC grid. The
Q Relay has built in current sensing that can detect DC current injection
required by VDE V 0126-1-1 requirements.
The Q Relay works together with the Envoy-S to meet the need to
break both line and neutral per grid requirements. See full installation
instructions for the Enphase Envoy-S and/or Enphase Microinverters at:
enphase.com/support.
It is best practice to install the Q Relay when installing the Envoy-S and
before commissioning the system.
The Q relay is IP-20 rated. You must mount it in an environmentally pro-
tected enclosure. Typically this is a switchboard.
Wiring Diagram
A B
LED1
LED2
Hz
TEST
Q RELAY
D
Enphase Energy, 1420 N. McDowell Blvd, Petaluma, CA 94954 USA
© 2018 Enphase Energy. All rights reserved.
Q R E L A Y ( s i n g l e - p h a s e ) I N S T A L L A T I O N
INSTALLATION
+
A ) Install the Enphase Envoy-S as directed in steps 1 - 4 of the
B ) Install the Q Relay in a protected environment (e.g., switchboard) on a
C ) Connect the Line and Neutral conductors from the PV system to the
D ) Connect a Neutral conductor from the upper left terminal of the Q Relay
E ) Connect a Line conductor from the upper right terminal of the Q Relay to
F ) Energise the circuit.
G ) Upon power up, the LEDs should both turn green to indicate the AC
H ) Use the Enphase Installer Toolkit to send a grid profile to the Q Relay and
C
Production Consumption Digital Input Relay
N L1 L2 L3 I1● I2● I3● I1● I2● I3● NO
1 / 5 2 / 6 3 / 7 4 / 8
I1 I2 I3 I1 I2 I3 RefGen Com / DRM Ø
CU, 2.5 mm , 75C
2 AU/NZ: DRM Port
MEAS CAT III 0 1 2 3 4 5 6 7 8 PD, B300
OVC III OVC II
Key:
A: Output from system
B: From grid
C: Envoy-S terminal block
D: Switchboard
DANGER! Risk of electric shock. Always de-energise circuits before
beginning wiring.
Install Guide.
35 mm DIN rail near the Envoy-S.
lower terminals of the Q Relay so that the Neutral is on the left terminal
and the Line is on the right terminal.
to the Neutral busbar.
an IEC/AS/NZS 60947-2 approved circuit breaker rated for no more than
20A. The circuit breaker must be suitably located and easily reached. It
must also be marked as the disconnecting device for the PV system.
voltage and frequency are within specification of the grid code. See the
LED states table.
microinverters as directed in Step 5 of the Envoy-S Quick Install
LED States
LED # 1 LED # 2 Description
(voltage) (Hz, DCI)
OFF OFF AC on terminals too low
GREEN X Phase voltage within range
(solid)
C
RED X One or more voltage setpoints
(solid) has timed out or reconnection
value not met
GREEN GREEN Voltage, frequency within range
(solid) (solid) & DCI, if used, is below fault
levels
X GREEN Line frequency (and DCI, if
(solid) used)are within limits
X RED Grid frequency timed out or
(solid) reconnection value not met
RED RED No profile set; device not
(flashing) (flashing) configured
RED RED Test button in use
(solid) (solid)
Specifications
Over voltage category III
Pollution degree 2
Operating AC voltage range for power 230 to 240 Vrms
supply
Nominal input frequency 50 Hz
Voltage and frequency acquisition time 100 ms (5 line cycles @ 50Hz)
on valid input during normal operation
Output 2-pole normally open relay (L1 and N)
Output power rating 4.8 kVA
Output rating (typical) 230 to 240 VAC, 20A
Power consumption 10 VA
Conducted and radiated EMI IEC 61326-1, BS EN 61000-3-2, BS EN 61000-
3-3, BS EN 50065-1, BS EN 50065-2-2
Operating temperature range -40 °C to 50 °C
IP rating IP 20 (must be in protected environment)
Relative humidity 0 to 95 non-condensing
Compliance IEC 61010
Envoy-S Quick
Guide.
Condition Relay
Unpowered; OPEN
non-functional
-- --
Fault OPEN
Normal CLOSED
-- --
Fault OPEN
Fault OPEN
Test toggle
contactor state
