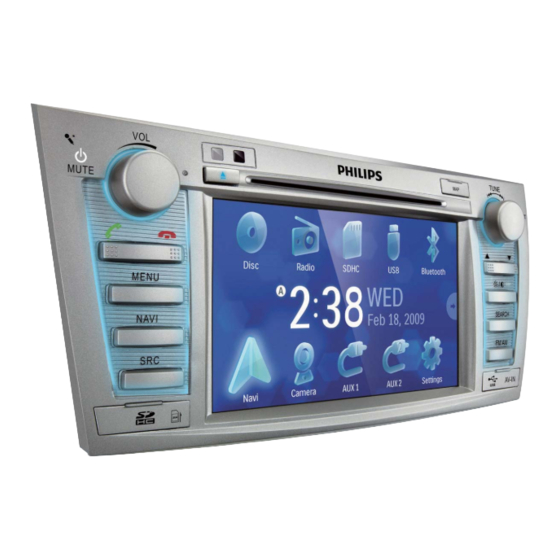

Philips CID3680/93 Quick Start Manual

Philips car entertainment system cid3680
Hide thumbs

Advertisement

Quick Links

Register your product and get support at
CID3680
www.philips.com/welcome
ENG
Quick Start Guide

Advertisement

loading

  Also See for Philips CID3680/93

  Related Manuals for Philips CID3680/93

  Summary of Contents for Philips CID3680/93

  • Page 1 Register your product and get support at CID3680 www.philips.com/welcome Quick Start Guide...
  • Page 3 Yellow Green Blue Yellow White Black Touch controller Yellow Rear screen Amplifier...
  • Page 7: Connect Wires

    These instructions are for a typical installation. However, if your car has different requirements, make the corresponding adjustment. If you have any questions regarding installation kits, consult your Philips car audio dealer. Caution This unit is designed for negative ground (earth) 12 V DC operation only.
  • Page 8: Connect Gps Antenna

    White and Left speaker (Front) white/black wires Gray and Right speaker (Front) gray/black wires Purple and Right speaker (Rear) purple/black wires Connect the other end of the two ISO connectors to the car audio system. If necessary, do the other connections. Connect GPS antenna To receive signal from satelite, you need to connect the supplied GPS antenna to your car and the...
  • Page 9: Tune To A Radio Station

    Set date Touch [Date]. Touch on the displayed date information. » A submenu is displayed. Touch to set year, month and day. Set clock mode Touch [Clock mode]. Touch on [12Hr] or [24Hr] to select clock mode. Set time Touch [Time]. Touch on the displayed time.
  • Page 10: Load Discs

    to tune to a radio station by step. Touch for over 1 seconds to tune to a radio station automatically. Load discs You can play video, audio or images stored on the following discs: DVD video, DVD-R, DVD-RW Audio CD, CD-R, CD-RW Note Ensure that the disc contains playable content.
  • Page 11: Adjust Sound

    Touch to select the paired phone, then touch Touch to search for phone number from the following list: Or touch to dial number directly, then touch to dial. Receive call By default, all incoming calls are received automatically. If there is incoming call, [Incoming call...] Bluetooth microphone.
  • Page 12 [Treb]treble range: -14 to +14. [LPH] 60, 80, 100, 200. [MPF] 500, 1K, 1.5K, 2.5K. [HPF] 10K, 12.5K, 15K, 17.5K. Touch to restore the above settings into default settings. Press to exit. © 2009 Koninklijke Philips Electronics N.V. All rights reserved. CID3680_93_QSG_V1.0...

This manual is also suitable for:

Cid3680
