Philips CID3610/00 User Manual

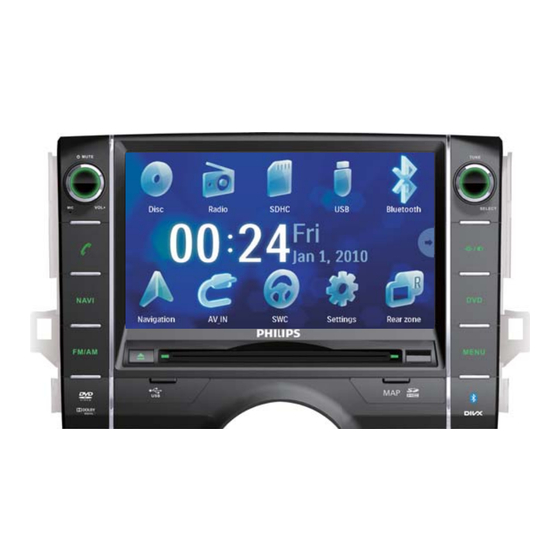

Philips car infotainment system cid3610 6.5" touch screen navigation bluetooth
Hide thumbs

Advertisement

Quick Links

Register your product and get support at
CID3610
www.philips.com/welcome
EN
User manual
3
ZH-CN
35

Advertisement

loading

  Also See for Philips CID3610/00

  Related Manuals for Philips CID3610/00

  Summary of Contents for Philips CID3610/00

  • Page 1 Register your product and get support at CID3610 www.philips.com/welcome User manual ZH-CN...
  • Page 2: Table Of Contents

    Contents 1 Important Safety Notice 2 Your in-car entertainment system Introduction What’s in the box Overview of the main unit 3 Get started Install the car audio Turn on Set date and time 4 Use map Upgrade the map 5 Listen to radio Tune to a radio station Store radio stations in memory Tune to a preset station...
  • Page 3: Important

    Notice Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. Recycling Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
  • Page 4 DivX The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Philips is under license. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
  • Page 5: Your In-Car Entertainment System

    2 Your in-car entertainment system Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Introduction With the car entertainment system, you can • Quickly found routine through the...
  • Page 6: Overview Of The Main Unit

    Overview of the main unit a TUNE/SELECT • Turn it to skip to the previous/next title, chapter, or track. • Press it to confirm an entry or selection. • Press it to start, pause or resume play. • Adjust display brightness. c DVD •...
  • Page 7: Get Started

    These instructions are for a typical installation. However, if your car has different requirements, make the corresponding adjustment. If you have any questions regarding installation kits, consult your Philips car audio dealer. Caution • This unit is designed for negative ground (earth) 12 V DC operation only.
  • Page 9 Mount in the dashboard Note • Check wire connection before you mount the unit into a car. • If preset radio stations are lost when the ignition key is turned OFF and then back ON, reconnect the red leads crosswise to the yellow ones.
  • Page 10: Turn On

    Turn on Caution • Risk of road accidents! Never watch video or adjust settings while you drive. Press to turn on the unit. » The available OSD (On-Screen Display) languages are displayed. Tap a language with fingertip. » The OSD language is changed to the selected language immediately.
  • Page 11: Use Map

    Set time Tap [Time]. Tap on the displayed time. » A submenu is displayed. to set hour and minute. • When date/time is set, tap to return to main menu. 4 Use map Note • You may need to upgrade the map (sold separately) before using it (see “Upgrade the map”...
  • Page 12: Listen To Radio

    5 Listen to radio Tune to a radio station to display home menu. Tap [Radio]. » Band and frequency information is displayed. Tap FM or AM to select band: • FM band options: FM1, FM2, FM3 • AM band options: AM1, AM2 Briefly tap to tune to a radio...
  • Page 13: Tune To A Preset Station

    Store stations automatically You can search for a station with intro search, which broadcasts a 10-second preview of each detected radio station. Select band. Tap [Search]. » Auto search starts. The six strongest stations of the selected band are saved in preset channels 1-6 automatically.
  • Page 14: Connect Usb Device

    Connect USB device Note • Ensure that the device contains playable content. Open the USB cover. Insert your USB device to the USB socket. » Play starts automatically. Insert USB or SD/MMC card Note • Ensure that the device contains playable content.
  • Page 15: Direct Select

    Direct select Tap anywhere except for the upper left corner to display menu on the screen, if necessary. Tap . » The search screen is displayed. Tap the numbers to enter chapter/file number, then tap • To clear the previous input, tap •...
  • Page 16: Random Play

    repeatedly to mark: • [Repeat A-]: the start of the section to repeat. • [Repeat A-B]: the end of the section to repeat. • The selected section plays repeatedly. To exit A-B repeat mode, tap repeatedly until [Repeat A-B off] is displayed.
  • Page 17: Select Slide Show Duration

    to pan through the enlarged picture. Select slide show duration Tap anywhere except for the upper left corner to display menu on the screen, if necessary. repeatedly to select: • Fast: 3 seconds • Normal: 5 seconds • Slow: 8 seconds 7 Play with Bluetooth device...
  • Page 18: Make A Call

    Disconnect Bluetooth devices To disconnect one device, tap » (green) is displayed. • The device will also be disconnected when the device is moved beyond the operational range. • If you want to reconnect the device to the unit, place it within the operational range. •...
  • Page 19: Listen To Music From Bluetooth Device

    » The voice is transferred from the unit’s loudspeaker to the mobile phone. Listen to music from Bluetooth device If the connected Bluetooth device supports Advanced Audio Distribution Profile (A2DP), you can listen to the music stored on the device through the unit.
  • Page 20: Adjust Sound

    8 Adjust sound Adjust volume Turn /MUTE/VOL+ clockwise to increase volume. • Turn /MUTE/VOL+ anti-clockwise to reduce volume. Mute During play, press /MUTE/VOL+. • To turn the sound back on, press /MUTE/VOL+ again. • You can also turn off sound by tapping the screen.
  • Page 21: Set Dynamic Bass Boost (Dbb)

    Tap F, R, L, or R to adjust fader/balance value. • [Fade] fader range: +24 to -24. (F = front speaker, R = rear speaker) • [Balance] balance range: -24 to +24. (L = left speaker, R = right speaker) to exit.
  • Page 22: Adjust Settings

    9 Adjust settings Display system setup menu Touch the upper left corner to display main menu. » The main menu is displayed. Touch [Settings]. » The settings menu is displayed. Adjust general settings Tap [General], if necessary. to highlight a setting. Tap on the option to display/select an option.
  • Page 23: Adjust Sound Settings

    [F1] Select F1 picture as wall paper. [Calibration] [Start] Calibrate the touch screen. to exit. Adjust sound settings Tap [Sound]. Tap an option repeatedly to select: Sound Options Description settings [Sub [On] Turn on the subwoofer. woofer] [Off] Turn off the subwoofer. [Sub [80Hz] Select subwoofer filter...
  • Page 24: Adjust Bluetooth Settings

    [Mirror] When you drive in reverse, the rear view is displayed in mirror. [Parking] [On] Disable video view during drive. [Off] Enable video view during drive. [DivX View code for DivX registration registration. code] to exit. Adjust Bluetooth settings Tap [Bluetooth]. Tap an option repeatedly to select: Bluetooth Options Description...
  • Page 25: Adjust Volume Settings

    to exit. Adjust volume settings You can set different volume for different modes. Tap [Volume]. » The volume setting sub-menu is displayed. Tap on a source. • [DVD] • [USB] • [SDHC] • [Radio] • [Bluetooth] • [Navigation] • [AV-IN] to assign value: 0 to 12.
  • Page 26: Others

    10 Others Play from rear displays If there is a display installed for passengers on rear seat to watch, you can select to play disc, USB or SD card on the rear display while you are using navigation system, listening to Radio or using Bluetooth.
  • Page 27 AV IN AV IN...
  • Page 28: Remove The Unit

    Check the electric connection. Buy a fuse that matches the voltage of the damaged fuse (15A) Replace the fuse. If the fuse gets damaged immediately after it has been replaced, there may be an internal malfunction. In such case, consult your Philips dealer.
  • Page 29: Product Information

    11 Product information Note • Product information is subject to change without prior notice. Power supply 12 V DC (11 V - 16 V), negative ground Fuse 15 A Aux-in level 500 mV Dimensions (W x H 283.8 x 168.4 x 188 x D) Weight (main unit) 2.4 kg...
  • Page 30 Compatible USB devices: • USB flash memory (USB 2.0 or USB1.1) • USB flash players (USB 2.0 or USB1.1) • memory cards (SD / MMC / SDHC) Supported formats: • USB or memory file format: FAT16, FAT32 • MP3 bit rate (data rate): 32-320 Kbps and variable bit rate •...
  • Page 31: Troubleshooting

    If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www. philips.com/welcome). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available.
  • Page 32 • The system is not in the pairing mode. • The system is already connected with another Bluetooth-enabled device. Disconnect that device or all other connected devices and then try again. The paired mobile phone connects and disconnects constantly. • The Bluetooth reception is poor.
  • Page 33: Glossary

    13 Glossary Bite rate The max data transfer through the USB port. Bluetooth ® Bluetooth is a short-rang wireless protocol that is meant to allow mobile devices to share information and applications without the worry of cables or interface incompatibilities. The name refers to a Viking King who unified Denmark.
  • Page 34 Name of the Parts (Pb, Lead) Housing DVD/CD loader DVD/CD LCD Panel PWBs Accessories (Remote control & cables) Batteries in Remote Control (ZnC) O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363 X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T11363 - 2006.
  • Page 35 © 2011 Koninklijke Philips Electronics N.V. All rights reserved. CID3610_00_UM_V1.0...
