Cotech 52008X36 + 50074 Quick Start Manual

Cotech Smart Home
Outdoor Remote Switch
Art.no 36-6758 Model 52008X36 + 50074
Please read the entire instruction manual before using the pro-
duct and then save it for future reference. We reserve the right
for any errors in text or images and any necessary changes
made to technical data. In the event of technical problems or
other queries, please contact our Customer Services.

Operating instructions

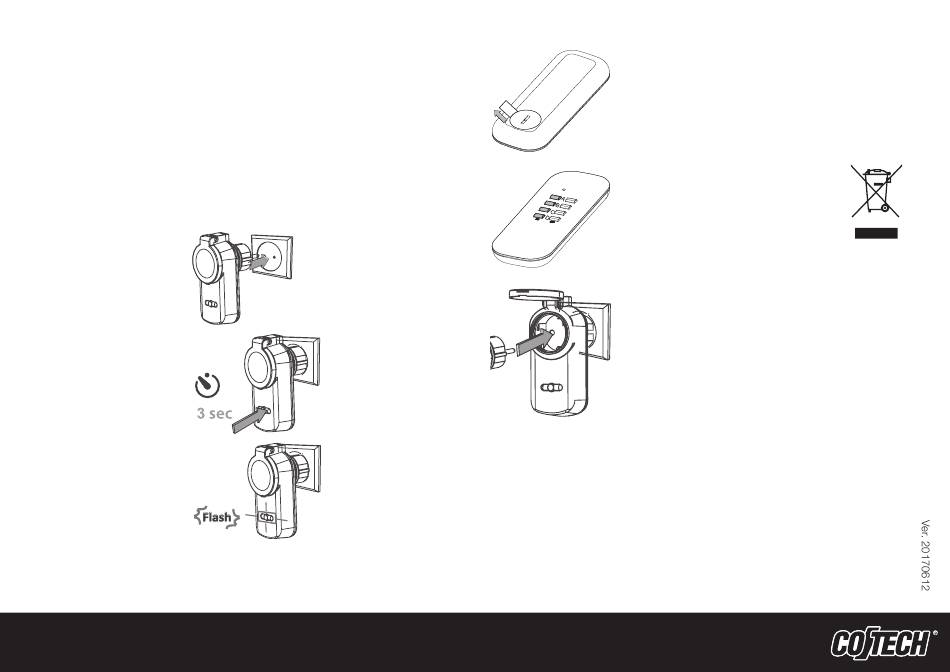

Installation

1. Plug the remote switch
into a wall socket.
2. Hold in the button on
the front of the receiver
for at least 3 seconds
and then release it.
3. The LED in the button
will start flashing slowly.
The receiver is now
ready to be paired
with a remote control/
transmitter. Note:
The button will begin to
flash after it has been
released. If the button is
flashing when it is being
pressed, the pairing will
not be successful.
GREAT BRITAIN • CUSTOMER SERVICE tel 020 8247 9300 e-mail customerservice@clasohlson.co.uk internet www.clasohlson.co.uk postal 10 – 13 Market Place, Kingston Upon Thames, Surrey, KT1 1JZ
4. Remove the plastic tab
to activate the battery in
the remote control.
5. Press the specific button
on the [ ON ] side of
the remote to select
the corresponding channel
(A, B, C or D) you want
to pair with the receiver.
The LED indicator button
will shine briefly to indicate
that pairing is complete.
6. Plug a light into the remote
switch and make sure that
it is switched on.
7. Turn the light on or off using the [ ON ]/[ OFF ] buttons on
the remote control.

Care and maintenance

Receiver
• Always unplug the receiver before cleaning it with
a damp cloth. Use only mild cleaning agents, never
solvents or corrosive chemicals. Make sure that
the receiver is completely dry before plugging it back in.
• If it is not to be used for an extended period, the receiver
should be unplugged from the wall socket and stored in
a dry, dust-free environment, out of children's reach.

Remote control

• Clean the remote control by wiping it with a dry cloth.
• Remove the battery from the remote control and store
it in a dry, dust-free environment and out of the reach of
children whenever it is not to be used for an extended
period.

Responsible disposal

This symbol indicates that this product
should not be disposed of with general
household waste. This applies throughout
the entire EU. In order to prevent any harm to
the environment or health hazards caused by
incorrect waste disposal, the product must
be handed in for recycling so that the material
can be disposed of in a responsible manner.
When recycling your product, take it to your
local collection facility or contact the place of
purchase. They will ensure that the product is
disposed of in an environmentally sound manner.

Specifications

Receiver
Mains voltage 230 V AC, 50 Hz
Frequency 433.92 MHz
Max range 25 m
0–3680 W
Load (resistive)
Load (inductive) 0–613 W
Remote control
Battery 1 × CR2032
Frequency 433.92 MHz
