Summary of Contents for Everet EVP435
-
Page 1: User Manual

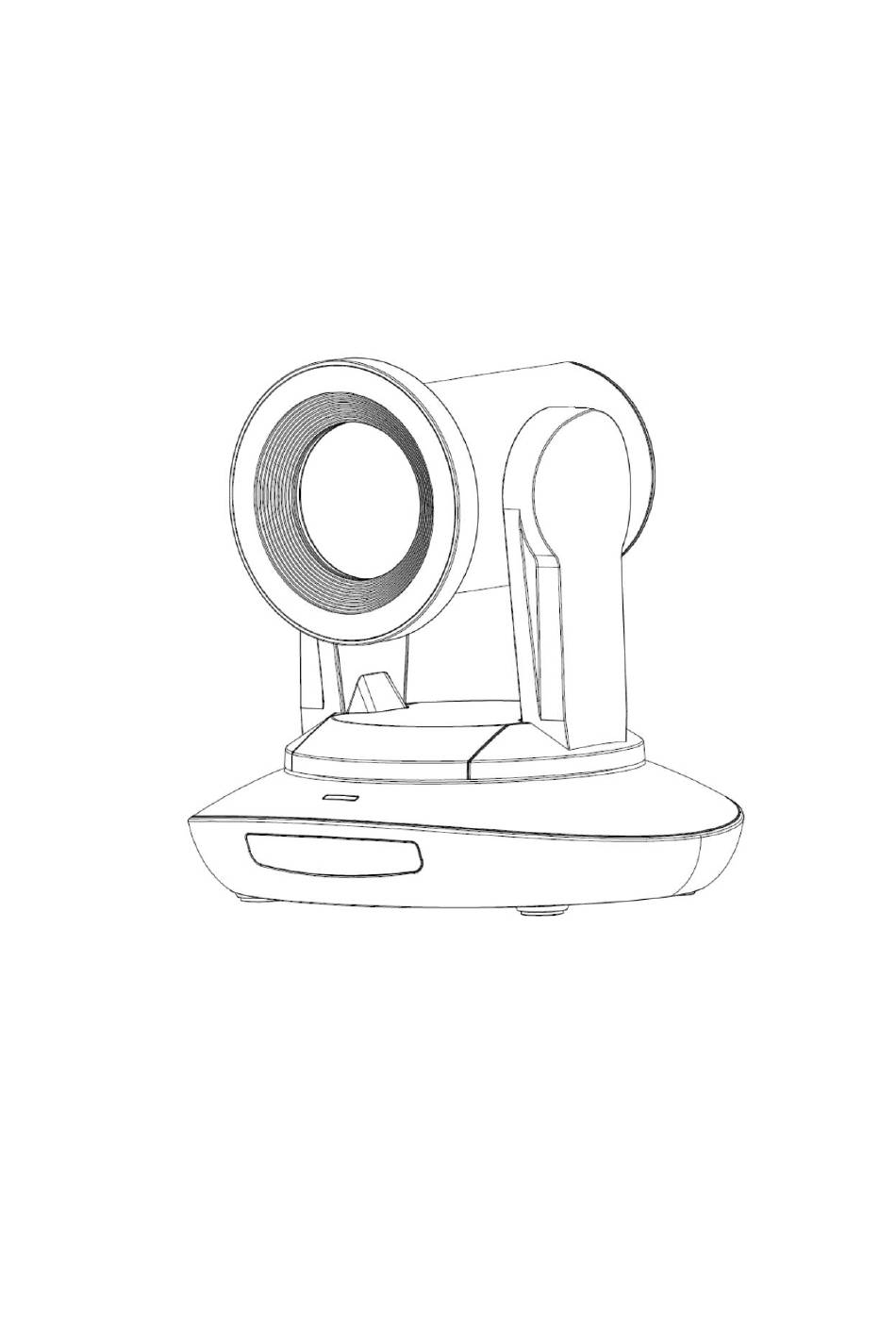

EVERET 4K 35x UHD PTZ Video Camera User Manual Version V1.0 （English）... -
Page 2: Table Of Contents
CONTENT CONTENT ......................................1 SAFETY GUIDES ....................................2 PACKING LIST....................................... 3 QUICK START ....................................... 3 PRODUCT HIGHLIGHTS..................................4 CAMERA SPEC..................................... 4 CAMERA INTERFACE.................................... 6 CAMERA DIMENSION..................................6 IR REMOTE CONTROLLER..................................7 VISCA（RS232）PORT..................................9 VISCA PROTOCOL ........................... ERROR! BOOKMARK NOT DEFINED. PELCO-D PROTOCOL .................................. -
Page 3: Safety Guides
SAFETY GUIDES 1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. 2.The camera power input range is 100-240VAC(50-60Hz),ensure the power supply input within this rate before powering on. 3.The camera power voltage is 12VDC, rated currency is 2A. -
Page 4: Packing List
PACKING LIST Check all bellow items when open the package: Camera ············································································································· 1 Power Adapter ·································································································· 1 Power Cable······································································································ 1 RS232 Control Cable ························································································· 1 USB3.0 Cable ···································································································· 1 Remote Controller ···························································································· 1 User Manual ····································································································· 1 Double-sided Adhesive ····················································································· 1 QC certification ·································································································... -
Page 5: Product Highlights
PRODUCT HIGHLIGHTS • Adopts most advanced ISP, 1/1.7 inch 12MP sensor, providing 3840x2160 p30 Ultra HD video resolution • 4K wide angle optical lens: 35x optical zoom, with 60 degree field of view; • 4K video over IP, H.264, H.265 encoding; •... - Page 6 Sensor CMOS sensor Zoom F5.8～203mm(35X), F1.5 – 4.8. View Angle:60°(Far)-2.02°(Near) Rotation Angle Pan: -170° ~ +170°; Tilt: -30° ~ +90° Rotation Speed Pan: 0°~120°/s ; Tilt: 0°~80°/s Preset: Remote controller: 10; RS232: 128; Accuracy: 0.1° RS232、RS485(optional)、RJ45 (VISCA over IP)、USB3.0(UVC1.5) 、USB2.0(UVC1.1) Control Port Network Speed 1000M...
-
Page 7: Camera Interface
CAMERA INTERFACE 1.Camera Lens 6. Tripod Screw Hole 10. HDMI port 2.Camera Base 7. Installation Hole 11.3G-SDI port 3.IR Receiver Panel 8. RS232 control port (input) 12, USB port 4.Power Indicator Light 9. RS232 control port(output) 13, RJ45 port 5.Dial Switch 14. -
Page 8: Ir Remote Controller
IR REMOTE CONTROLLER POWER Under normal working mode, short press POWER key, to enter standby mode; Press it again, the camera will do self-configuration, then go back to HOME position. It will go to preset position if power on model has been set before. FREEZE （Not Supported）... - Page 9 FOCUS KEY ( ON THE LEFT) Manual focus, only valid under manual focus model. ZOOM KEY( ON THE RIGHT SIDE) Set the zoom rate NAVIGATE KEY: UP/DOWN/LEFT/RIGHT Under working mode, use navigate key to set the pan tilt, and select menu when enter OSD.
-
Page 10: Visca（Rs232）Port
VISCA IN （RS232 PORT） Function VISCA IN RS485 A(+) IR OUT IR OUT B(-) VISCA IN &Mini DIN Connection VISCA IN & DB9 Connection Camera VISCA IN Camera VISCA IN Windows DB-9 Mini DIN A(+) A(+) IR OUT IR OUT B(-) B(-) VISCA Network Construction:... -
Page 11: Visca Protocol
VISCA PROTOCOL Part1 Camera Return Command Ack/Completion Message Command Packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera adderss+8 Error Messages Command Packet Note Returned when the command format is different or when a command with illegal command Syntax Error z0 60 02 FF... - Page 12 Command type function Command packet Note Auto Focus 81 01 04 38 02 FF Manual Focus 81 01 04 38 03 FF One Push AF 8x 01 04 18 01 FF pqrs: Zoom Position (0(wide)~ 8x 01 04 47 0p 0q 0r 0s CAM_ZoomFocus Direct 0x4000(tele))
- Page 13 Command type function Command packet Note 8x 01 04 0B 02 FF Down 8x 01 04 0B 03 FF Direct 8x 01 04 4B 00 00 0p 0q FF pq: Iris Position (0~ 0x11) Reset 8x 01 04 0C 00 FF 8x 01 04 0C 02 FF Gain Setting (0~0x0F)
- Page 14 Command type function Command packet Note CAM_ZoomSpeed Zoom Speed 8x 01 04 D1 00 00 0p 0q FF pq :Zoom speed 0x01~0x07 8x 01 06 C2 02 FF CAM_ZoomDisplay 8x 01 06 C2 03 FF CAM_IRaddress IR address 8x 01 06 D8 0p FF p:IR address 1~4 CAM_Gamma Gamma set...
- Page 15 Command type function Command packet Note 4K@30 0x1D 4K@25 0x1E CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF) DHCP off 8x 01 04 AE 00 FF DHCP off DHCP control DHCP on 8x 01 04 AE 01 FF DHCP on pqrs : Column(x size)
- Page 16 Command type function Command packet Note Default is 32 Flare mode blue value Flare green 8x 01 04 BA dat FF Default is 32 Menu On 8x 01 06 06 02 FF Turn on the menu Menu Off 8x 01 06 06 03 FF Turn off the menu SYS_Menu Menu Back...
- Page 17 y0 50 03 FF OnePush mode y0 50 04 FF y0 50 05 FF Manual CAM_RGainInq 8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain y0 50 00 FF Full Auto...
- Page 18 y0 50 0w 0w 0w 0w Pan-tiltPosInq 8x 09 06 12 FF wwww: PanPosition zzzz: Tilt Position 0z 0z 0z 0z FF pqrs : Column(x size) MainstreamResolutionInq 8x 09 04 C2 00 FF y0 50 0p 0q 0r 0s 0m 0n 0x 0y FF mnxy: Line (y size) only support:1920*1080,3840*2160 MainstreamRateInq...
-
Page 19: Pelco-D Protocol
PELCO-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02... -
Page 20: Pelco-P Protocol
PELCO-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0Xa0 Address 0x00 0x08 Pan Speed Tilt Speed 0Xaf Down 0Xa0 Address 0x00 0x10 Pan Speed Tilt Speed 0Xaf Left 0Xa0 Address 0x00 0x04 Pan Speed Tilt Speed 0Xaf Right 0Xa0... -
Page 21: Osd Menu
OSD MENU 1. Under working mode, press the MENU key on the IR remote controller, to enter the OSD menu as bellow: 2, After enter the main menu, use the navigate UP/DOWN key to select the main menu. Once been selected, the main menu will change to blue background, and the right side will show all sub menu options. - Page 22 GAIN Gain setting:0dB~28dB , only valid under manual mode Default：AUTO BRIGHT Bright setting:0~15, only valid under bright priority mode. Default：8 ON/OFF Default：OFF WDR Level WDR Level Default：1 ON/OFF Default：OFF Optional： AUTO、 INDOOR、 OUTDOOR、 MANUAL、 OUTAUTO、 SODIUM WB MODE Default：ATW LAMP AUTO 、SODIUM LAMP R GAIN Red gain level: 0~255, only valid under manual white balance mode.
- Page 23 3840*2160P25 720P29.97 video format, there is no change. 4K mode does not support menu switching, when switch to 4K model, menu will be 1080P59.94 720P25 existed automatically. 1080P50 1080P60 1080I59.94 1080P30 1080I50 720P60 1080P29.97 720P30 1080P25 1080I60 720P59.94 1080P24 DHCP ON/OFF 192.168.001.188 MASK...
-
Page 24: Uvc Control
UVC CONTROL 1. Only run the client software after the USB3.0 camera has completed self-configuration (the IR indicator in blue color and will not flash); otherwise may cause black video issue. 2. Make sure the USB3.0 camera is recognized by the PC Device Manager. 3．Make sure the interval of video format switching more than 3 seconds, otherwise black video maybe caused. -
Page 25: Web Setting
WEB SETTING Download and install Flash Player When visit IP camera via Internet Explore browser the first time, need to install Flash Player, we suggest user download it from flash official website to get latest version: https://www.flash.cn/english after installation, we will be able to see bellow via PC’s Programs and Features Control Panel: Login Run browser, input IP address( defaulted IP address is 192.168.1.188), to enter login interface, can select Language (Chinese or English), input admin and password to login as following:... - Page 26 Preview interface as above image, on the right side, there are options to control camera pan, tilt, zoom, focus, presets, focus speed, zoom speed can be set. On the top of the image, main stream and sub stream preview can be selected, image width&height rate can be selected, and full size view can be selected.
- Page 27 White Balance includes white balance mode, red gain, blue gain. Image includes mirror, flip, backlight compensation, Gamma, WDR(wide dynamic range). Image Setting includes brightness, sharpness, contrast, saturation Noise reduction includes 2D/3D reduction. There is on/off option for 2D, and off/auto/1~4 six options. “Ethernet”...
- Page 28 “Firmware upgrade”: it is for camera program upgrade, currently only for ISP part update. How to update: As following picture, click “clicking to upload file” icon, open dialog box, select to open the file, and click “upgrade” to start. DO NOT power off or do other operation when upgrading, reboot the camera after 5 min when upgrade finished. Then login web end to select “reset all”...
- Page 29 Account Setting: is used for setting camera account and password Input the account firstly, then input same password twice, click set to finish Please remember account and password, otherwise you may be not able to login. Using VCL to view RTSP/RTMP Video Default RTSP main streaming address: rtsp://192.168.1.188/stream/main Default RTSP sub streaming address: rtsp://192.168.1.188/stream/sub Default RTMP main streaming address: rtmp://192.168.1.188:1935/app/rtmpstream0...
- Page 30 VISCA over IP VISCA over IP means VISCA protocol transmit via IP, to reduce RS232/RS485 cable layout (the controller must support IP communication function) Communication port spec: ⚫ Control port: RJ45 Gigabit LAN ⚫ IP protocol: IPv4 ⚫ Transmit protocol: UDP ⚫...
- Page 31 Note: LAN output way is big-endian, LSB is in the front. Payload type: Data definition as following: Name Value (Byte 0) Value (Byte 0) Value (Byte 0) VISCA command 0x01 0x00 Stores the VISCA command. VISCA inquiry 0x01 0x10 Stores the VISCA inquiry. Stores the reply for the VISCA command and VISCA VISCA reply 0x01...
- Page 32 Save VISCA return packet ⚫ VISCA device setting command Save VISCA equipment setting command packet. ⚫ Control command The following data is saved in control command payload ⚫ Controlled reply The following data is saved in return command payload of control command. Delivery confirmation VISCA over IP uses UDP as transmission communication protocol, UDP communication message transmission is not stable, it is necessary to confirm delivery and resent in application.
-
Page 33: Visca Over Ip
Sequence chart as following Sequence chart when returned message lost Sequence chart when command lost Note: Do not set IP address, subnet mask, gateway parameter in VISCA over IP command, otherwise, it will cause network breaks off. Due to change these parameter, network will be in off status.
