Zehnder Rittling Timer Installation Instructions

15 Push one end of the flexiduct through the ceiling and attach it to the fan
unit using one of the ties provided.
Mark and plug three holes using the three fixing holes on the light unit,
16
secure by using three No. 6 countersunk screws (supplied).
17 lternatively use the 2x ceiling fixing clips on the unit, these are used by
first slightly unscrewing the two long screws provided so that the clips are
loose.
18 Twist the 2x ceiling fixing clips around so that they rotate outwards. Then
tighten them against the ceiling (do not overtighten). Fit lamp.
Replace internal grille onto light unit body.
19
Wiring Details
WARNING:
• Isolate electricity supply before starting work.
• Installation or disconnection must be carried out by a qualified Electrician
and all wiring must conform to IEE Wiring or local Regulations. Fan must
only be connected using flexible supply cord.
• The light unit is double insulated and does not require an earth connection.
• The units must be connected to a double pole isolating switch having
contact separation of at least 3mm at each pole and fitted with a 3 amp
fuse.
• When supplied from a 6 amp lighting circuit, no local fuse is required.
• The LED Driver must be sited within a dry location and not within reach of a
person using a bath or shower nor within a shower cubicle/enclosure.
• Connect only one light unit per LED Driver..
DO NOT OPERATE LIGHT WITHOUT FAN RUNNING.
Fan Specification
Voltage: 230V/240V~50Hz. Power Consumption:
Cable sizes: Timer model - 16W
Fixed wiring (Plus 6W when light fitting added)
2 core 1mm 2 3 core 1/1.5mm 2
IP44
LED Lamp Specification
SELV 12V~50Hz 6W LED Lamp, Type MR16 [GU5.3]
LED Lamp fitting and replacement WARNING:
• Isolate electricity supply before starting work.
• Remove LED lamp by pulling down.
• Fit LED lamp by pushing upwards into the lamp holder.
• Push up internal grille.

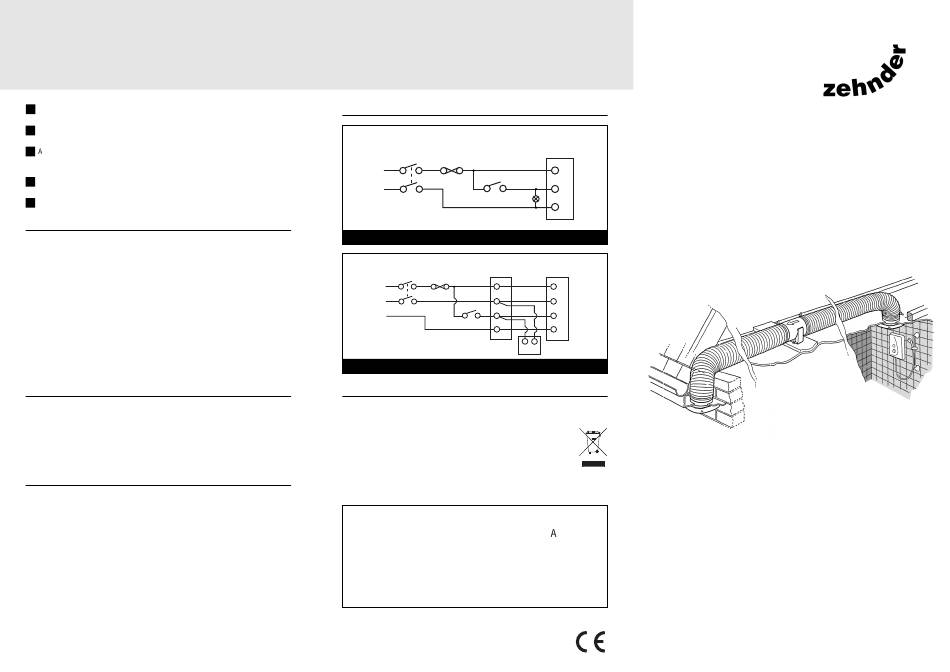

Wiring Diagrams
Double Pole
3 Amp
Isolating Switch
Fuse
L
Light Switch
N
Light (Optional)
Timer Shower Kit
Junction Box
Double Pole
(Not Supplied)
3 Amp
Isolating Switch
Fuse
L
L
N
N
SL
E
Light Switch
E
Light Unit
Timer Shower Kit with Light
WEEE Statement
This product may not be treated as household waste. Instead it should be
handed to an appropriate collection point for the recycling of electrical and
Electronic equipment.
For more detailed information about the recycling of this product,
please contact your local council office or your household waste
disposal service.
Zehnder (Retail) - A Division of Zehnder Group UK Ltd
Watchmoor Point, Camberley, Surrey, GU15 3 D
Tel: +44 (0)1276 605800
email: retailsales@zehnder.co.uk
web: www.zehnder.co.uk
05.10.1053 January 2017
PCB Terminal
in Fan
L
L1
N
PCB Terminal
in Fan
L
N
SL
E
L N
Timer Silent Shower Kit
Installation
Instructions
Without / With Light
