GATEWAY LED INDICATIONS
Receiver On (normal operation)
Yellow
Transmitter On
Red
Not configured - Rapid blinking / flickering
Idle / configured - 1 blink per second
Green
Lock Communication Fail - 2 blinks
(continuously)
Expander Communication Fail - 4 blinks
(continuously)
CLOSE HOUSING COVER
Close the housing cover by first engaging the hooks at
the top, then snapping the bottom together. Secure
the cover with the Bottom Screw provided as shown in
Fig. 6.
Congratulations! You're finished! Now go to the
DL-WINDOWS™ for Networx™ V5 USER'S GUIDE
(OI383) for instructions about discovering your Gate-
way from DL-Windows.
(Gateway Status)

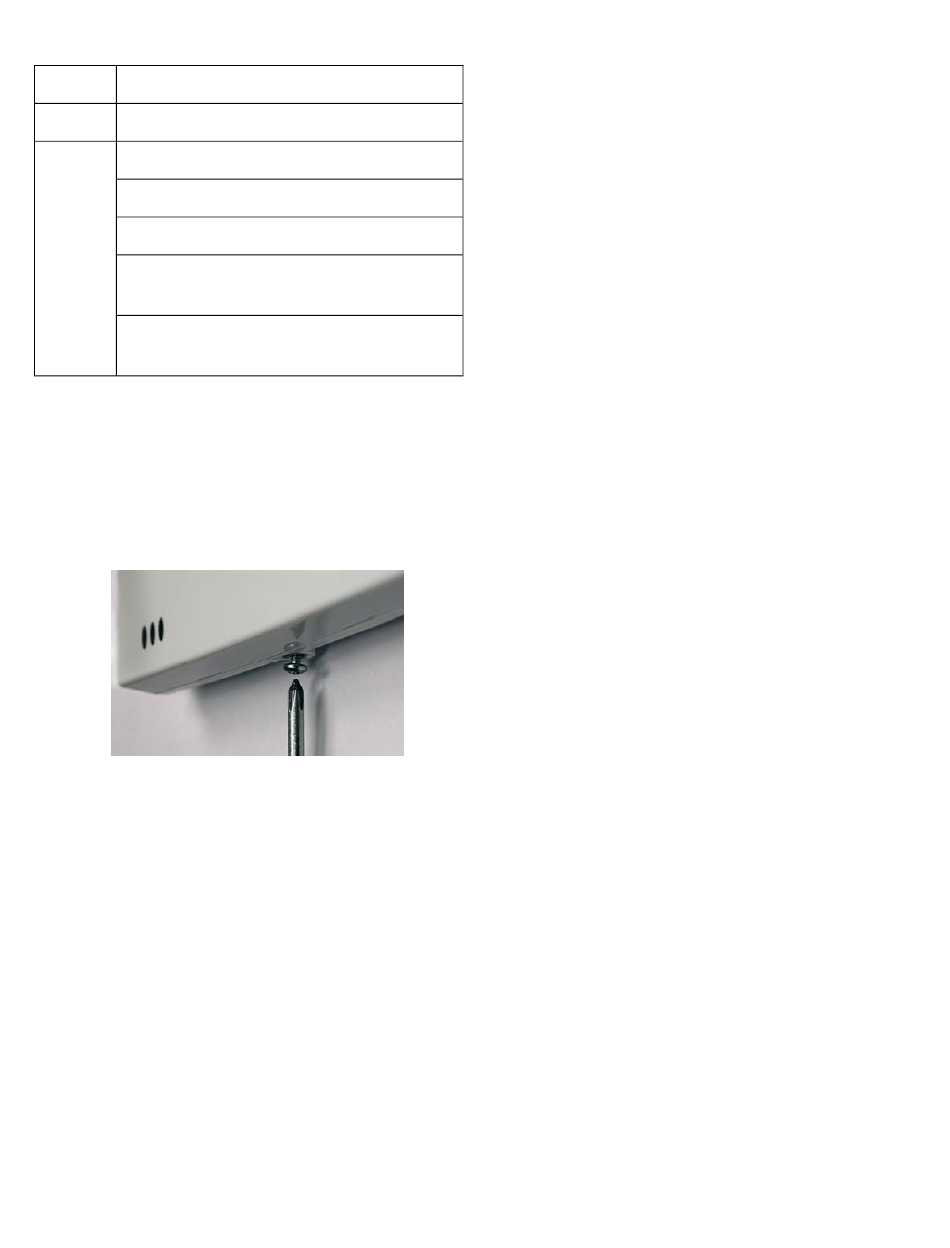

Fig. 6: Bottom Screw
