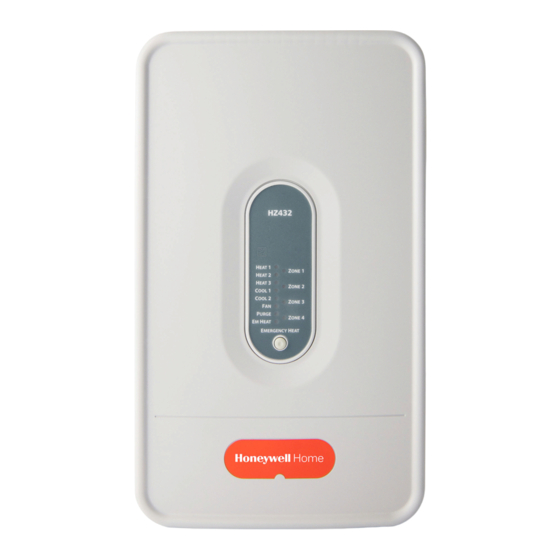

Honeywell TrueZONE HZ432 Installing Manual

4-zone dual fuel system, with wireless focuspro thermostats
Hide thumbs

Advertisement

Quick Links

Installing a 4-Zone
Dual Fuel System
With TrueZONE
We Recommend:
(1) HZ432 Wireless Zoning Kit –
YHZ432R1108
Wireless-Enabled TrueZONE – HZ432*
(2) Programmable Wireless FocusPRO Thermostats – TH6320R1004
Wireless Adapter – THM4000R1000**
Contains:
Portable Comfort Control – REM5000R1001***
Wireless Outdoor Sensor – C7089R1013****
Discharge Air Temp Sensor & Transformer
(2) Programmable Wireless FocusPRO Thermostats –
TH6320R1004
*HZ432 is required for dual fuel control.
**Wireless Adapter can control up to 4 wireless thermostats when used with a 4-Zone HZ432 TrueZONE.
***Portable Comfort Control is optional, but provides an opportunity to offer advanced homeowner comfort, convenience, and control.
****Wireless Outdoor Sensor enables dual fuel control & advanced homeowner comfort & control.
Additional Options:
Option 1:
(1) Wireless-Enabled TrueZONE – HZ432K
(1) Programmable Wireless Zoning Adapter Kit – YTH6320R1023
Programmable Wireless FocusPRO Thermostat – TH6320R1004
Contains:
(1) Wireless Adapter – THM4000R1000**
(3) Programmable Wireless FocusPRO Thermostat – TH6320R1004
(1) Portable Comfort Control – REM5000R1001***
(1) Wireless Outdoor Sensor – C7089R1013****
Option 2:
(1) Wireless-Enabled TrueZONE – HZ432K
(1) Non-Programmable Wireless Zoning Adapter Kit – YTH5320R1025
Non-Programmable Wireless FocusPRO Thermostat – TH5320R1002
Contains:
(1) Wireless Adapter – THM4000R1000**
(3) Non-Programmable Wireless FocusPRO Thermostat – TH5320R1002
(1) Portable Comfort Control – REM5000R1001***
(1) Wireless Outdoor Sensor – C7089R1013****
50-1433 RL 9/09
© 2009 Honeywell International Inc.
and Wireless FocusPRO
®
Thermostats
®
