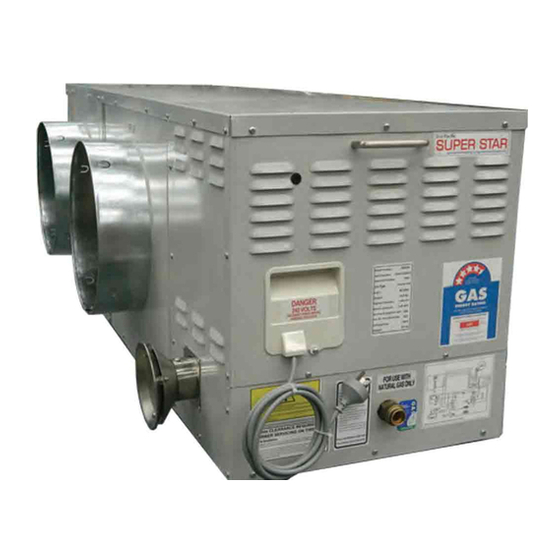

Eco Pacific Super Star SS Series Installation & Service Instructions Manual
High efficiency gas ducted heaters
Hide thumbs
Also See for Super Star SS Series:
- Installation & service instructions manual (22 pages)
Advertisement
Quick Links

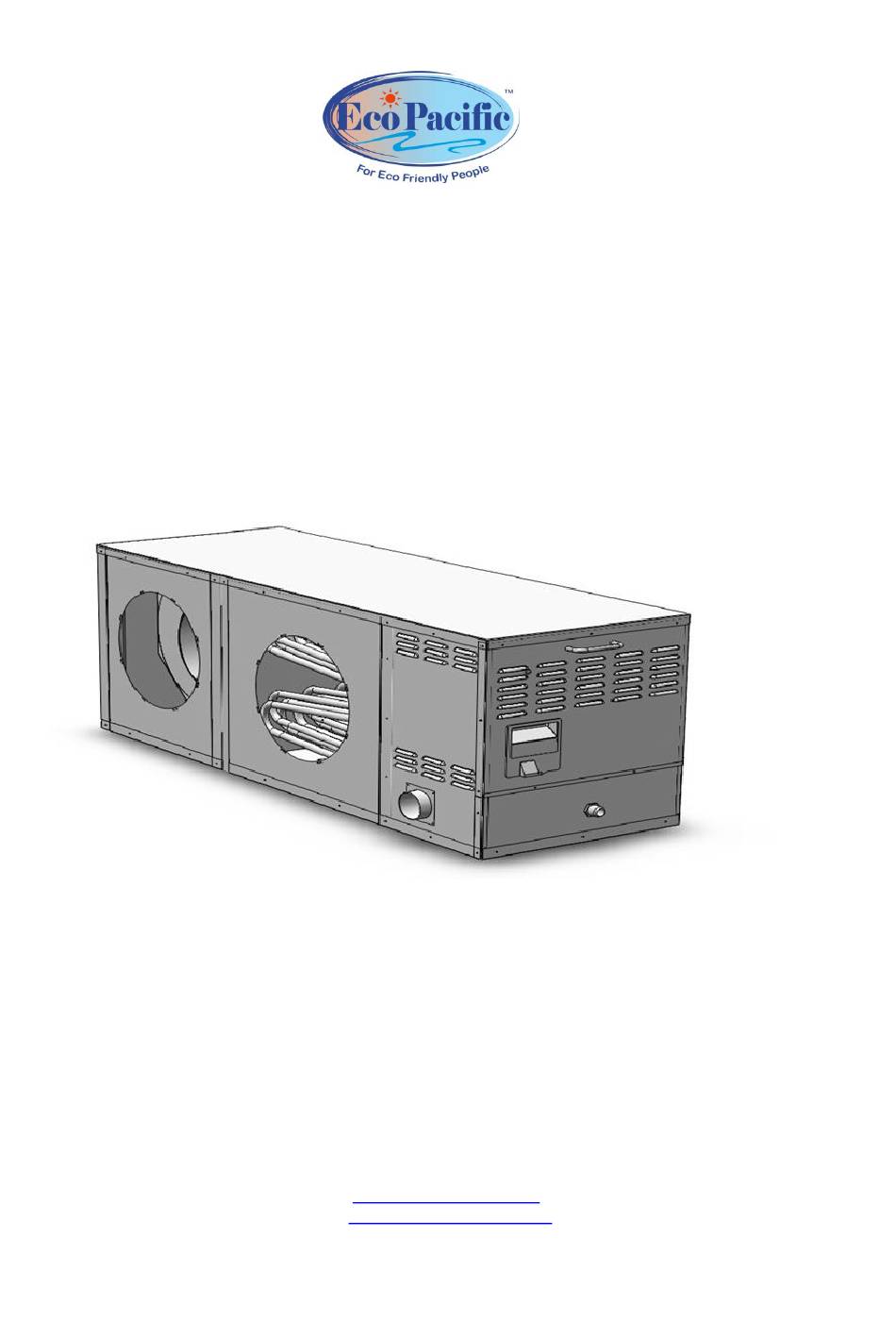

Installation & Service Instructions
for
'Super Star' SS and HB series (non-condensing)
High Efficiency Gas Ducted Heaters
(For internal & external installations)
(4.5- 4.8 star energy rated)
DO NOT MODIFY THIS APPLIANCE
Manufacturers of High Efficiency Ducted Gas Heaters,
Evap Coolers, and Fresh Air Heat Recovery Ventilators
Tel: (03) 9706 6228
Fax: (03) 9706 6089
Web: www.ecopacific.com.au,
Email:
sales@ecopacific.com.au
(This document is copy-right protected and must not be used for
commercial purposes without expressed consent of Eco Pacific)
Eco Pacific/Super Star- Installation and Service Instructions, 2017
Advertisement
Related Manuals for Eco Pacific Super Star SS Series
Summary of Contents for Eco Pacific Super Star SS Series
- Page 1 Evap Coolers, and Fresh Air Heat Recovery Ventilators Tel: (03) 9706 6228 Fax: (03) 9706 6089 Web: www.ecopacific.com.au, Email: sales@ecopacific.com.au (This document is copy-right protected and must not be used for commercial purposes without expressed consent of Eco Pacific) Eco Pacific/Super Star- Installation and Service Instructions, 2017...
-
Page 2: Table Of Contents
AS5601 installation standard and also according to the instructions and guidelines provided by Eco Pacific. Failure to do so Eco Pacific will not accept responsibility for any problems, which occur as a result of faulty installation and or service. - Page 3 Access to the fan wheel and motor is achieved on the far-right hand side. Models These installation instructions cover the Eco Pacific ‘Super Star’ range of internal and external heaters of 12.5, 16.5, 19.5, 26.5- and 31.5-kw heat output class. The SS and HB range of heaters is intended for use with natural gas as specified on the data plate.
-
Page 4: General Requirements
2. Care should be taken to locate the unit and ductwork so that the supply air does not short circuit to the return air. Eco Pacific/Super Star- Installation and Service Instructions 20173... -
Page 5: Clearances
6. External units come with factory fitted flue terminal with no work required. 7. Connect a 24 V thermostat using low voltage wiring to connect to W & R terminals both ends. 8. Power up the heating unit. Eco Pacific/Super Star- Installation and Service Instructions 20173... - Page 6 The following picture can give some idea how it should be installed facing the outside wall. Flue terminal is provided with the unit which should remain fastened on to the flue pipe. Eco Pacific/Super Star- Installation and Service Instructions 20173...
- Page 7 Check that the electrical supply meets the values specified on the name plate and wiring diagram of the unit. The wiring diagram should be found on the front panel of the heater. A 10-Amp Eco Pacific/Super Star- Installation and Service Instructions 20173...
- Page 8 Ductwork should not be fastened directly to the structure. Care should be taken to ensure that all ducting is free from internal obstructions, free of leaks and adequately supported. Likewise, ducting should not be caved in, crushed, or slack in any manner. Eco Pacific/Super Star- Installation and Service Instructions 20173...
-
Page 9: Pre-Commissioning Check List
3. No modification inside the heater is allowed by any body at the installation site. If the heater is found modified on site Eco Pacific will not honour the given warranty conditions and will not be responsible for the consequences whatsoever if occurs from the modification in gas or air flow change or parts and components change. -
Page 10: Operating Instructions
Turn the thermostat to “OFF” for 3 seconds, then back on again. Step 5. Turn the thermostat to “ON”. Unit should ignite in approximately 20 seconds. Step 6. Check the battery condition, if fitted. Eco Pacific/Super Star- Installation and Service Instructions 20173... -
Page 11: Commissioning Procedure
If having proceeded through steps 1-6 it is determined that the gas line has been purged off gas and the system still fails to ignite/operate correctly, refer to the Service Instructions and wiring diagram given in the end, or contact the Service Division of Eco Pacific on- Tel (03) 9706 6228, or email: service@ecopacific.com.au... - Page 12 Abnormal Operation Should any of the following characteristics occur, advise the user to contact their local Eco Pacific service agent or the local gas authority immediately: •...
-
Page 13: Final Checks
Has the correct operation of the unit been tested? Have all the relevant regulatory bodies been advised of the installation? Has the warranty card been completed and returned to Eco Pacific? Has the Installer's Declaration been signed off in the Operating Instructions provided with the heater? Has the owner/user been given a copy of the ‘Operating Instructions’... - Page 14 300x300 300x300 350x350 350x350 Return/Supply, mm Extra panel 350x350 400x400 400x400 collars, mm Figure 6 : Dimensions ( ref Table 2) Figure 7: Super Star Wiring Diagram with Fenwal 3580 ignition module. Eco Pacific/Super Star- Installation and Service Instructions 20173...
-
Page 15: Service Instructions
No flash- cheque the fuse, find the reason of the short circuit, rectify, and replace the 3 Amp fuse. If the system still fails to operate, please contact Eco Pacific on (03) 9706 6228. Eco Pacific/Super Star- Installation and Service Instructions 20173... - Page 16 Once the unit is operating, set the thermostat to the temperature which satisfies your comfort requirements. Eco Pacific endeavours to produce world class eco friendly high efficiency gas ducted heaters as per Australian Standards. The company takes utmost care and follows documented systematic procedures through approved process control plans to produce, test, and pack the Super Star heaters.
- Page 17 The switch can malfunction if it is not mounted and harnessed properly on the specified location. The location of the pressure switch is given next to the combustion fan and is shown through the photograph 5 and 6. Eco Pacific/Super Star- Installation and Service Instructions 20173...
- Page 18 The location of the PCB is shown through the following photograph 7, and 8. Photograph 7 and 8- Location of the PCB and thermostat terminal for W &R connections Eco Pacific/Super Star- Installation and Service Instructions 20173...
- Page 19 The location of the combustion fan is given in photograph 11 and 12 Photograph 11 and 12- Location of the combustion inducer fan in the front of the heater Eco Pacific/Super Star- Installation and Service Instructions 20173...
- Page 20 This is a separate assembly that can be procured only from the Eco Pacific factory. If it is found faulty, it can be removed by undoing the screws on the base, outer lid, inner lid, and burner box. Finally undo the screws on the base and remove its sealing and take the heat exchanger out.
