Installation & Service Instructions
Super Star' SS and HB series (non-condensing)
For
High Efficiency Gas Ducted Heaters
(For internal & external installations)
(4.5 star to 4.8-star energy rated)
DO NOT MODIFY THIS APPLIANCE
Manufacturers of High Efficiency Ducted Gas Heaters,
Evap Coolers, and Fresh Air Heat Recovery Ventilators
Tel: (03) 9706 6228
Fax: (03) 9706 6089
Web: www.ecopacific.com.au,
Email:
sales@ecopacific.com.au
(This document is copy-right protected and must not be used for
commercial purposes without expressed consent of Eco Pacific)

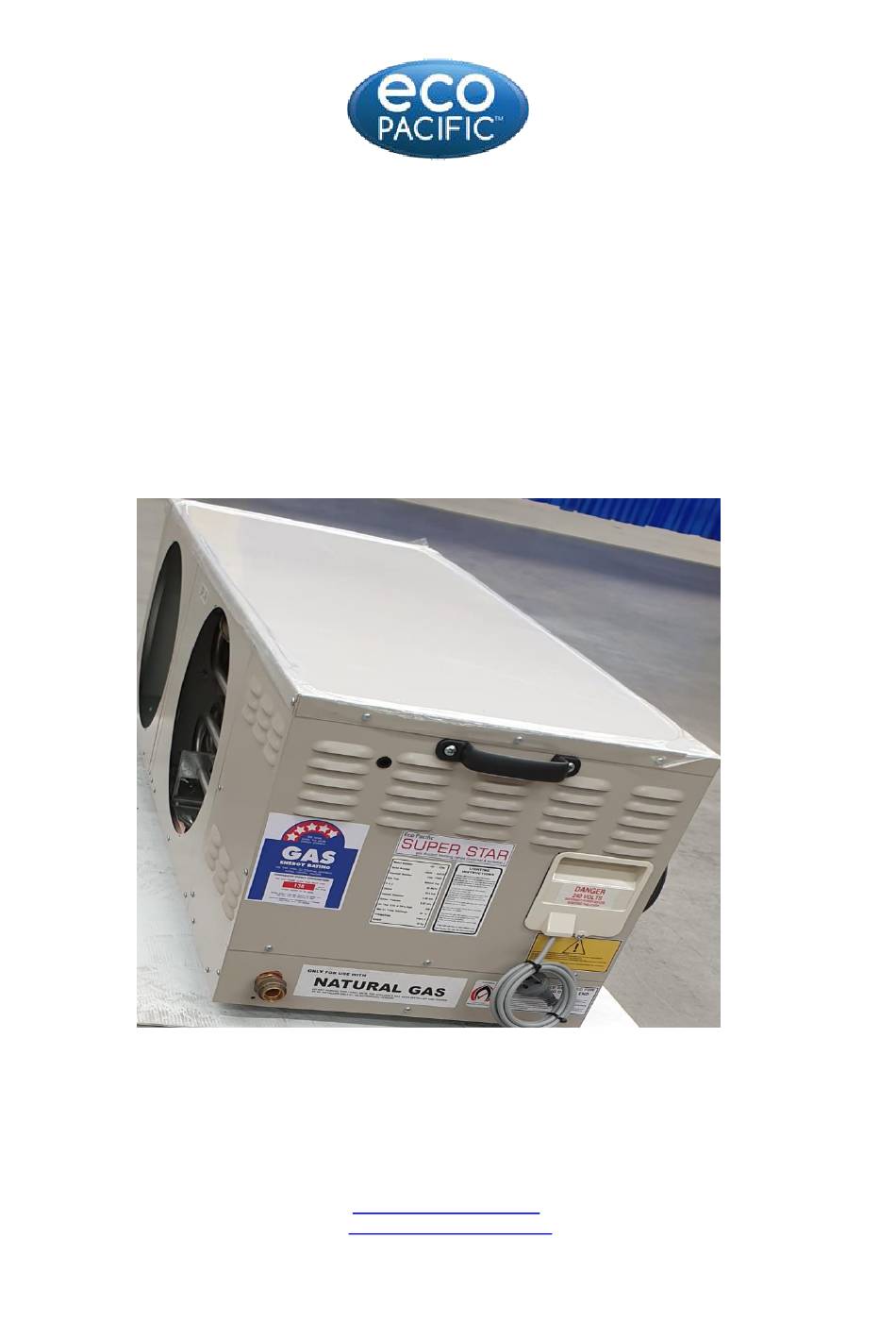

Eco Pacific 'Super Star'
series Gas Ducted Heaters
Eco Pacific/Super Star- Installation and Service Instructions, 2021
Advertisement
Related Manuals for Eco Pacific Super Star' SS Series
Summary of Contents for Eco Pacific Super Star' SS Series
- Page 1 Fax: (03) 9706 6089 Web: www.ecopacific.com.au, Email: sales@ecopacific.com.au (This document is copy-right protected and must not be used for commercial purposes without expressed consent of Eco Pacific) Eco Pacific ‘Super Star’ series Gas Ducted Heaters Eco Pacific/Super Star- Installation and Service Instructions, 2021...
- Page 2 AS5601 installation standard and also according to the instructions and guidelines provided by Eco Pacific. Failure to do so Eco Pacific will not accept responsibility for any problems, which occur as a result of faulty installation and or service.
- Page 3 Access to the fan wheel and motor is achieved on the far-right hand side. Models These installation instructions cover the Eco Pacific ‘Super Star’ range of internal and external heaters of 12.5, 16.5, 19.5, 26.5 and 31.5 kw heat output class. The SS and HB range of heaters are intended for use with natural gas as specified on the data plate.
- Page 4 Location Eco Pacific Super Star gas ducted heaters are supplied separately for internal and external for installation in either a roof space, or in the space underneath a floor, or external to the house- if it is an external unit in colour bond metal casing with duct collars to connect to a warm air heating insulated duct-system.
- Page 5 3. Route ¾ inch natural gas piping with isolating gas cock connected next to the unit. 4. Connect all ductwork after 1.5-meter straight ducts length for return and supply from the heater. Eco Pacific/Super Star- Installation and Service Instructions 2021...
- Page 6 The heater can be installed with flue facing the wall, or opposite to Eco Pacific/Super Star- Installation and Service Instructions 2021...
- Page 7 The following diagram illustrates a typical gas valve showing the location of the gas inlet and outlet and the pressure testing point. Figure 4: Gas valve connections (Note: the valve used may differ from that shown) Eco Pacific/Super Star- Installation and Service Instructions 2021...
- Page 8 All ductwork, fittings and registers shall be sized to comply with AS5706- Design Manual for Indirect Gas Fired Ducted Warm Air Central Heating Systems or the relevant one. It is highly recommended that the ductwork be insulated, Eco Pacific/Super Star- Installation and Service Instructions 2021...
- Page 9 3. No modification inside the heater is allowed by any body at the installation site. If the heater is found modified on site Eco Pacific will not honour the warranty conditions and will not be responsible for the consequences whatsoever if occurs from the modification in gas or air flow change or parts and components change without written consent of the manufacturer.
- Page 10 If having proceeded through steps 1-6 it is determined that the gas line has been purged of gas and the system still fails to ignite/operate correctly, refer to the Service Instructions and wiring diagram given in the end, or contact the Service Division of Eco Pacific on- Tel (03) 9706 6228, or email: sales@ecopacific.com.au...
- Page 11 No flash- cheque the fuse, find the reason of the short circuit, rectify, and replace the 3 Amp fuse. If the system still fails to operate, please contact Eco Pacific on (03) 9706 6228. Once the unit is operating, set the thermostat to the temperature which satisfies your comfort requirements.
- Page 12 Abnormal Operation Should any of the following characteristics occur, advise the user to contact their local Eco Pacific service agent or the local gas authority immediately: •...
- Page 13 Has the correct operation of the unit been tested? Have all the relevant regulatory bodies been advised of the installation? Has the warranty card been completed and returned to Eco Pacific? Has the Installer's Declaration been signed off in the Operating Instructions provided with the heater? Has the owner/user been given a copy of the ‘Operating Instructions’...
- Page 14 Figure 6: Dimensions (ref. Table 2) Figure 7a: Super Star Wiring Diagram with Fenwal 3580 ignition module including ventilation fan timer. Eco Pacific/Super Star- Installation and Service Instructions 2021...
- Page 15 Single stage fan timer Eco2020R5 board (above) for SS and HB series Figure 7b: Super Star Wiring Diagram for Fenwal 3561 ignition module with Eco2020 fan timer board shown above. Eco Pacific/Super Star- Installation and Service Instructions 2021...
- Page 16 No flash- cheque the fuse, find the reason of the short circuit, rectify, and replace the 3 Amp fuse. If the system still fails to operate, please contact Eco Pacific on (03) 9706 6228. Eco Pacific/Super Star- Installation and Service Instructions 2021...
- Page 17 Once the unit is operating, set the thermostat to the temperature which satisfies your comfort requirements. Eco Pacific endeavours to produce world class eco friendly high efficiency gas ducted heaters as per Australian Standards. The company takes utmost care and follows documented systematic procedures through approved process control plans to produce, test, and pack the Super Star heaters.
- Page 18 The switch can malfunction if it is not mounted fully harnessed properly on the specified location. The location of the pressure switch is given next to the combustion fan and is shown through the photograph 5 and 6. Eco Pacific/Super Star- Installation and Service Instructions 2021...
- Page 19 The location of the PCB is shown through the following photograph 7, and 8. Photograph 7 and 8- Location of the PCB and thermostat terminal for W &R connections Eco Pacific/Super Star- Installation and Service Instructions 2021...
- Page 20 Fasten the fan with mounting plate onto the flue box using the 4 screws sealing off with high temperature silicon sealant for any leakage. The location of the combustion fan is given in photograph 11 and 12. Eco Pacific/Super Star- Installation and Service Instructions 2021...
- Page 21 Make sure the heat exchanger is not cracked or blackened, if any abnormality is found on the tubes of the heat exchanger, please ring Eco Pacific on 1300ecopac or 9706 6228. The heat exchanger is proprietary part that does not normally fail, and if failed, can only be replaced by Eco Pacific authorised personnel only.
- Page 22 This is a separate assembly and can be procured only from the Eco Pacific factory. If it is found faulty, it can be removed by undoing the screws on the base, outer lid, inner lid, and burner box. Finally undo the screws on the base and remove its sealing and take the heat exchanger out.
