Quick installation
instructions
Export Power Manager

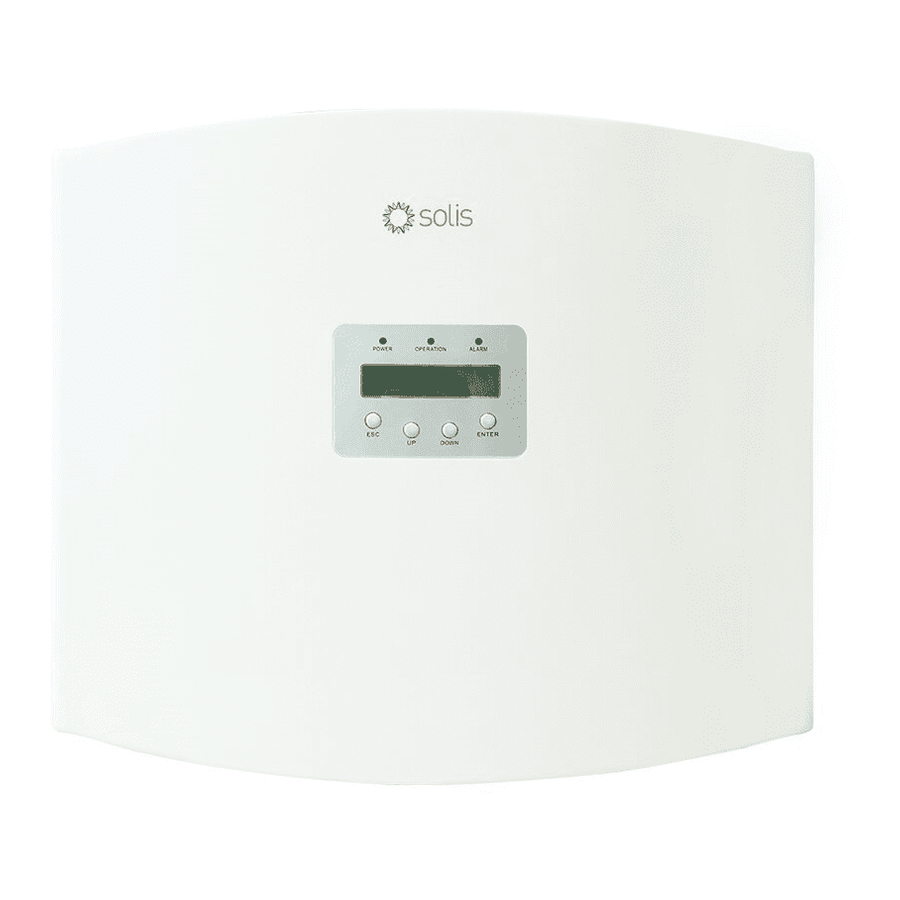

Solis-EPM3-5G-Plus
Ningbo Ginlong Technologies Co., Ltd.
C
1
Determine location of EPM
Following minimum clearance is required.
300mm
Install the EPM
2
Step 1: Mark A,B,C,D mounting holes on the wall.
A
C
Step 2: Drill four φ8 holes and fix the bracket onto the wall
with expansion bolts.
Expansion screws
Bracket
Step 3: Hang the EPM on the bracket by the steps below.
300mm
Step 4: Fix the two locking screw on both side of the bracket
and connect the grounding wire to the grounding screw.
M4 locking screw
B
3
Connect cables
D
1. Grid input cable -> Grid Port
Connect the grid input cables to the grid connector and
then to the Grid port of the EPM as described below.
3 connect
to L3
connect to N
M4 locking screw
Groundingscrew
2 connect
to L2
1 connect
to L1
connect to
