EVA Logik ZW36 Installation Manual

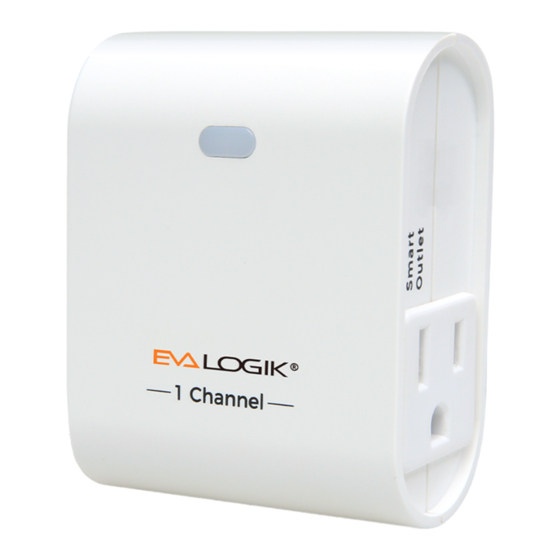

ZW36
Z-Wave Smart Plug
(1 channel)
Always On Outlet
Specifications:
Power: 120VAC, 60Hz
Loading: 10 Amp Max Smart Outlet
15 Amp Max Always-On Outlet
Total(Both Outlets): 15 Amp Max
Frequency: 908.42MHz
FCC ID: OXGZW36
IC: 10460A-ZW36
INTRODUCTION
The EVA LOGIK ZW36 is a Z-Wave enabled 15A receptacle
designed for most residential lighting and motor applications. It's
compatible with LED, halogen, incandescent, xenon, fluorescent
and compact fluorescent bulbs.The ZW36 fully works with the
Fibaro, Smartthings, Wink hub as well as all other certified Z-Wave
controllers.
Plug the light you want to control into the Z-Wave Smart plug
controlled outlet .
NOTE: Plug directly into outlet, do not use with extension cords

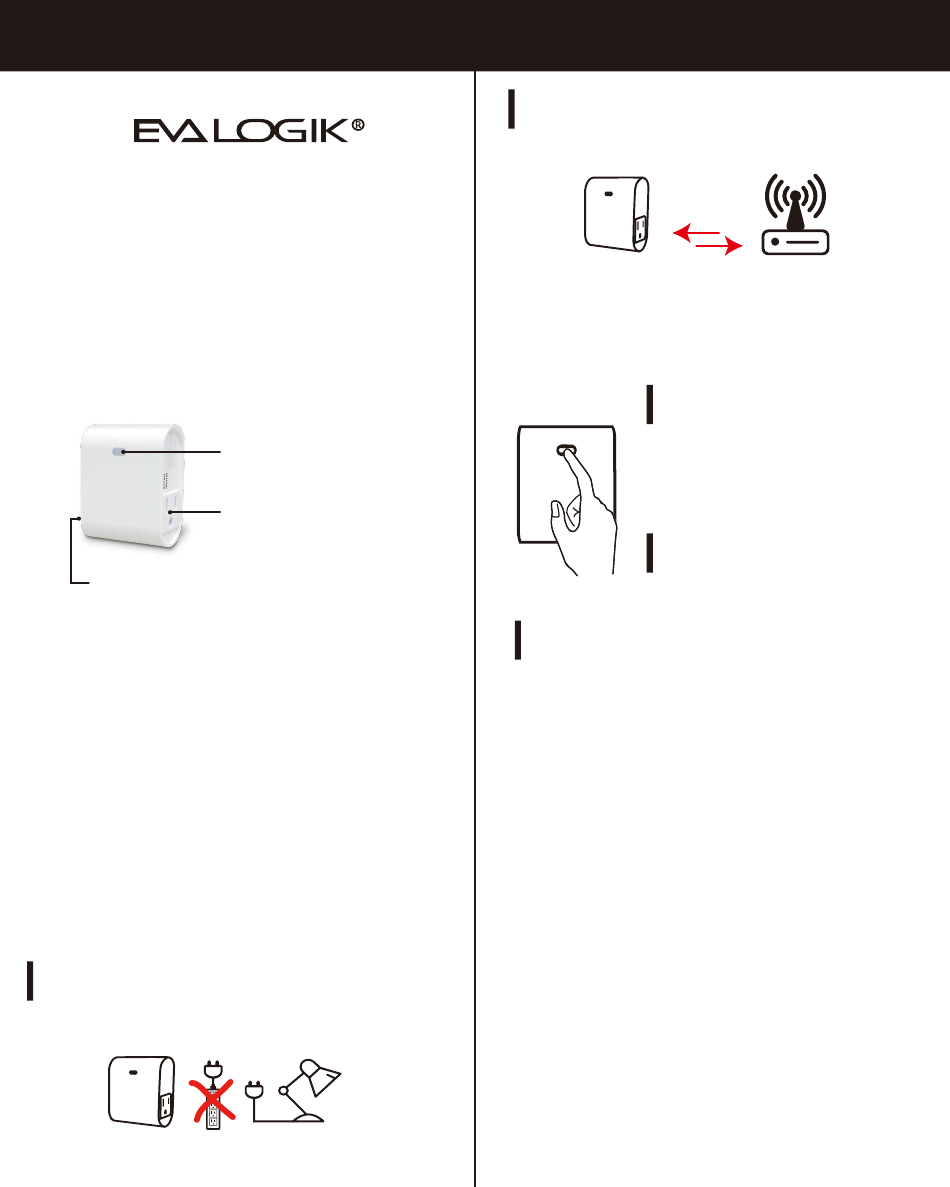

Installation Manual
Manual / Program button
Single press: manually turn
on/off your device.
Smart Outlet
This outlet can remotely turn
On/Off the connected device
One Z-Wave controlled AC outlet for standard incandescent
lighting, CFL/LED, fans or small appliances. Total load
capacity for both outlets is 1800W (15A) Resistive.
100 feet
Note:
Your device may need to be within 100 feet of the
controller to be included. If so, include the device to the
network within 10 feet of the controller and relocate it to
the desired position in your home. Be sure to refresh the
network if the device is included in this manner.
Add to Z-Wave Network
Put the Z-wave interface controller into
"Add" mode, triple press the Program
button (A).
It will be included to network.
(Once your controller confirmed, refresh
the Z-Wave network to optimize
performance. )
Remove from Z-Wave Network
Put the Z-Wave interface controller
into "Remove" mode, triple press the
Program button (A). It will be excluded
to network.
To return your switch to factory defaults
Press and hold button 5S while power on.
Note: This should only be used in the event your network's
primary controller is missing or otherwise inoperable
Parameter Settings
1: LED Indicator
Parameter=1, Size=1, Value=0 On when On and Off when Off
Value=1 On when Off and Off when On
Value=2 Always Off
Default =0
2: Auto Turn-Off Timer
Parameter=2, Size=4, Values: 0 - 65535 (M); default 0M
3: Auto Turn-OnTimer
Parameter=3, Size=4, Values: 0 - 65535 (M); default 0M
4: Restores state after power failure
Parameter=4, Size=1, Value=0 out put the state after power
Value=1 output off
Value=2 output on
Default =0
5:Association(Support 2 group, each group max support 5
devices)
Group 1 lifeline
Group 2 Relay on/off send basic set
Special Settings
Press and hold 5 s on Button (A) = Change LED Status
