ZW36
Z-Wave Smart Plug
(1 channel)

Always On Outlet

Specifications:
Power: 120VAC, 60Hz
Loading: 10 Amp Max Smart Outlet
15 Amp Max Always-On Outlet
Total(Both Outlets): 15 Amp Max
Frequency: 908.42MHz
FCC ID: OXGZW36
IC: 10460A-ZW36

INTRODUCTION

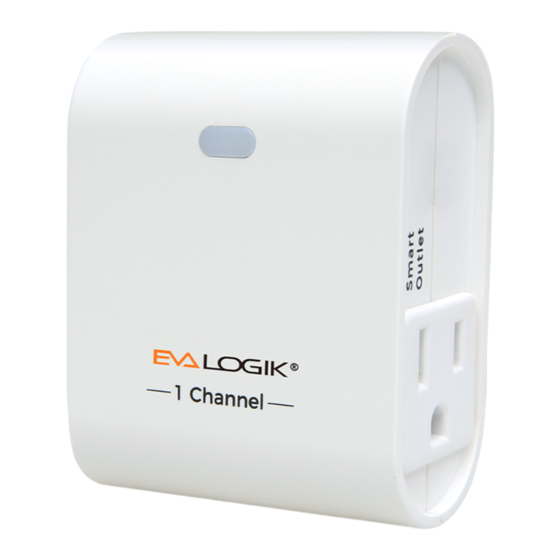

The EVA LOGIK ZW36 is a Z-Wave enabled 15A receptacle
designed for most residential lighting and motor applications. It's
compatible with LED, halogen, incandescent, xenon, fluorescent
and compact fluorescent bulbs.The ZW36 fully works with the
Fibaro, Smartthings, Wink hub as well as all other certified Z-Wave
controllers.

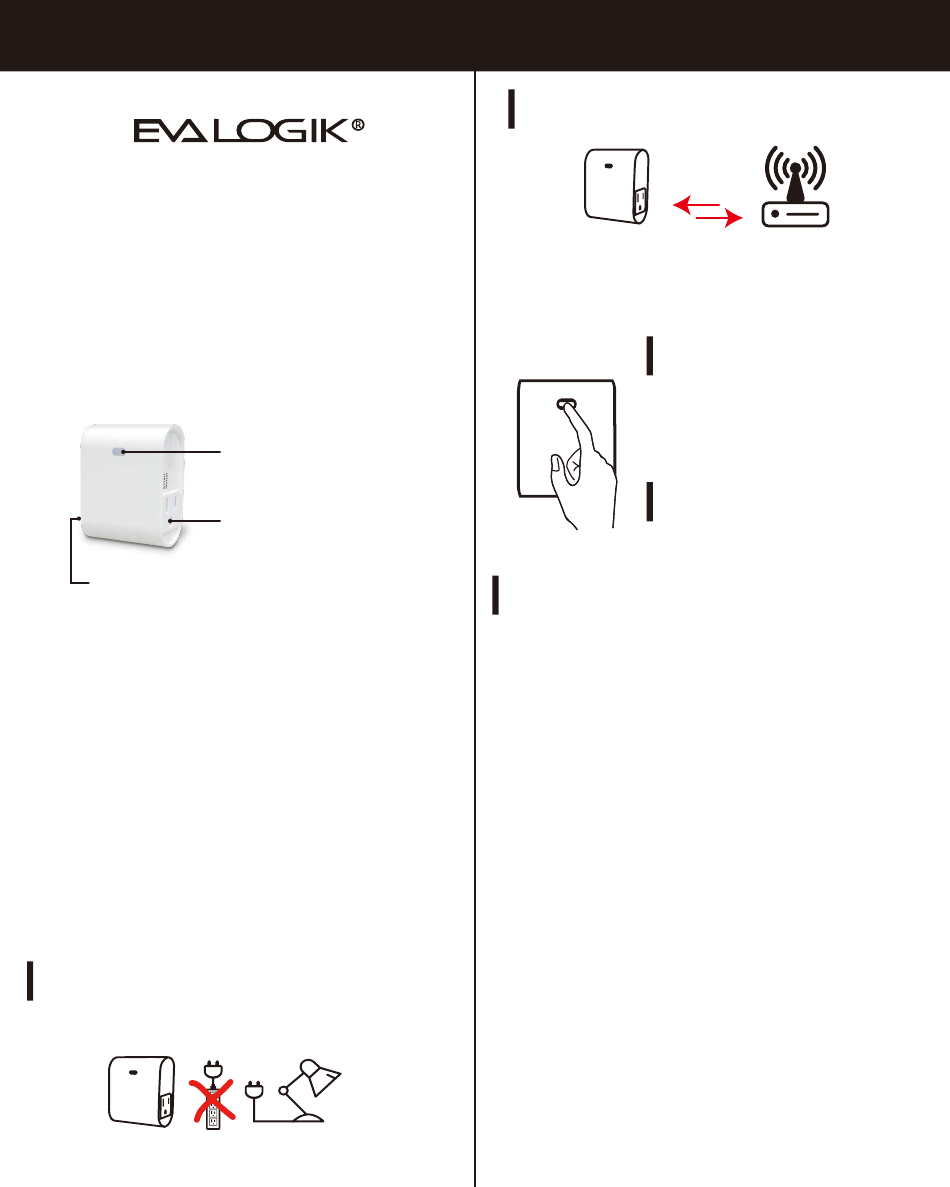

Plug the light you want to control into the Z-Wave Smart plug
controlled outlet .
NOTE: Plug directly into outlet, do not use with extension cords
Installation Manual

Manual / Program button

Single press: manually turn
on/off your device.
Scene 1: Tap 2x
Smart Outlet
This outlet can remotely turn
On/Off the connected device
One Z-Wave controlled AC outlet for standard incandescent
lighting, CFL/LED, fans or small appliances. Total load
capacity for both outlets is 1800W (15A) Resistive.
100 feet
Note:
Your device may need to be within 100 feet of the
controller to be included. If so, include the device to the
network within 10 feet of the controller and relocate it to
the desired position in your home. Be sure to refresh the
network if the device is included in this manner.

Add to Z-Wave Network

Put the Z-wave interface controller into
"Add" mode, triple press the Program
button.
It will be included to network.
(Once your controller confirmed, refresh
the Z-Wave network to optimize
performance. )

Remove from Z-Wave Network

Put the Z-Wave interface controller
into "Remove" mode, triple press the
Program button. It will be excluded to
network.
To return your switch to factory defaults
Manual : Click the button 2 times quickly, and hold for at least 10 seconds.
Host reset: Remove it from the host and the device is factory reset.
Note: This should only be used in the event your network's primary
controller is missing or otherwise inoperable

Parameter Settings

1: ADD/REMOVE
--Manual add mode: Press the button 3 times.
--Auto-add mode: LED will blink within 30 seconds after first power on
Tap x1: control on/off
Tap x2: scene 1
2: Factory reset:
Manual: Click the button 2 times quickly, and hold for at least 10 seconds
Host reset: Remove it from the host and the device is factory reset.
3:Association(Support 2 group, each group max support 5 devices)
Group 1 lifeline
Group 2 send basic set
4: LED indicator (quickly press 6x: change Parameter)
(LED flashes 2 times when the configuration parameter changed.)
Parameter=1, Size=1,
Value=0(Default) Load On, Indicator LED On
Value=1
Value=2
5: Auto Turn-OFF Timer
(LED flashes 2 times when the configuration parameter changed.)
Parameter =2, Size=4, Values: 0 – 65535 (Min); Defualt =0 turn off outlet
6: Auto Turn-ON Timer
(LED flashes 2 times when the configuration parameter changed.)
Parameter =4, Size=4, Values: 0 – 65535 (Min); Defualt =0 turn on outlet
7: Restores state after power failure(quickly press 10x: change Parameter)
(LED flashes 2 times when the configuration parameter changed.)
Parameter=6, Size=1, Value=0 Output off
Value=1 Output on
Value = 2 Restores state after power failure(Default)
8: Scene function
scene 1: Tap 2x
Load On, Indicator LED Off
LED always Off
