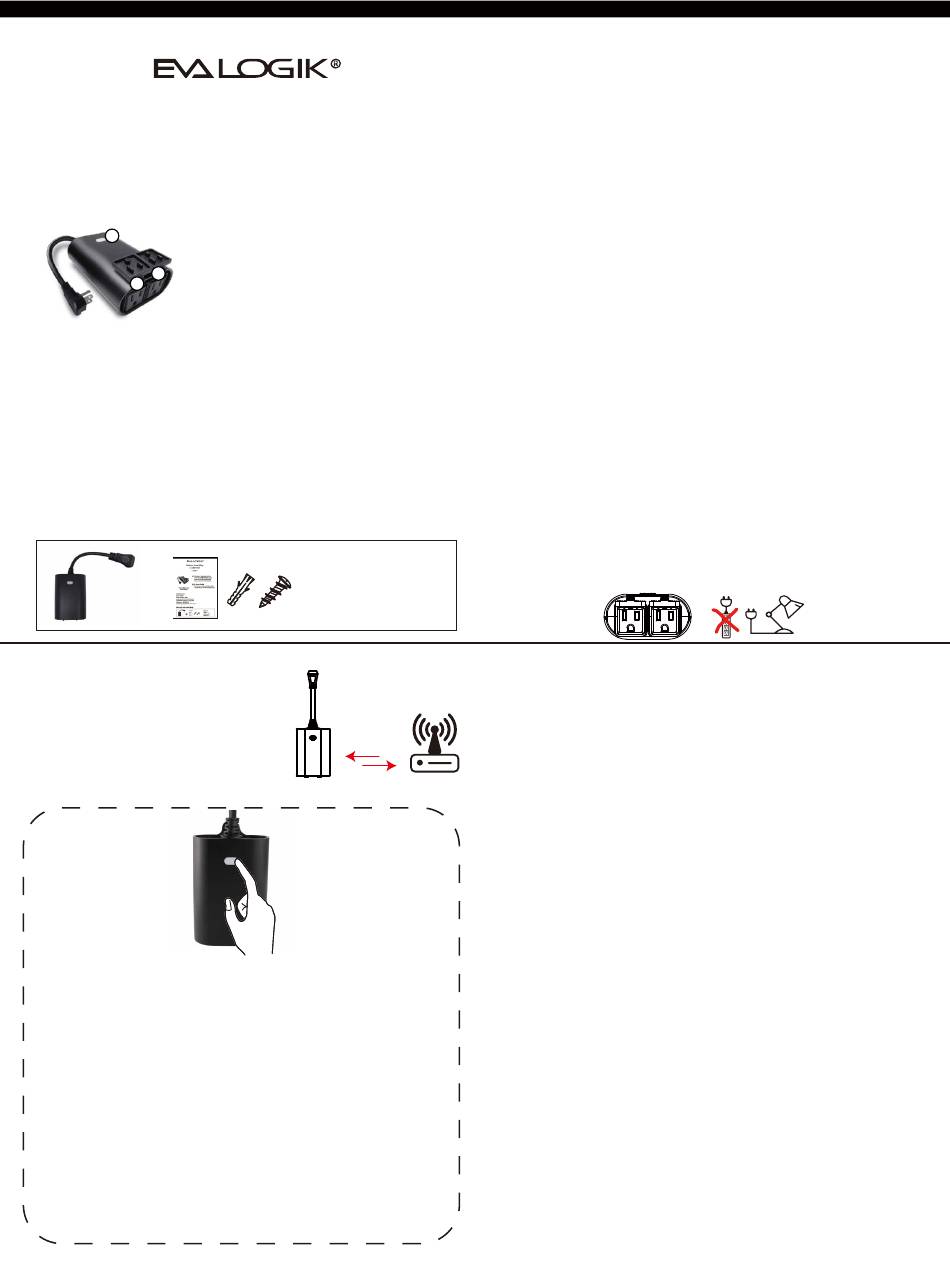

EVA Logik ZW97 Quick Start Manual

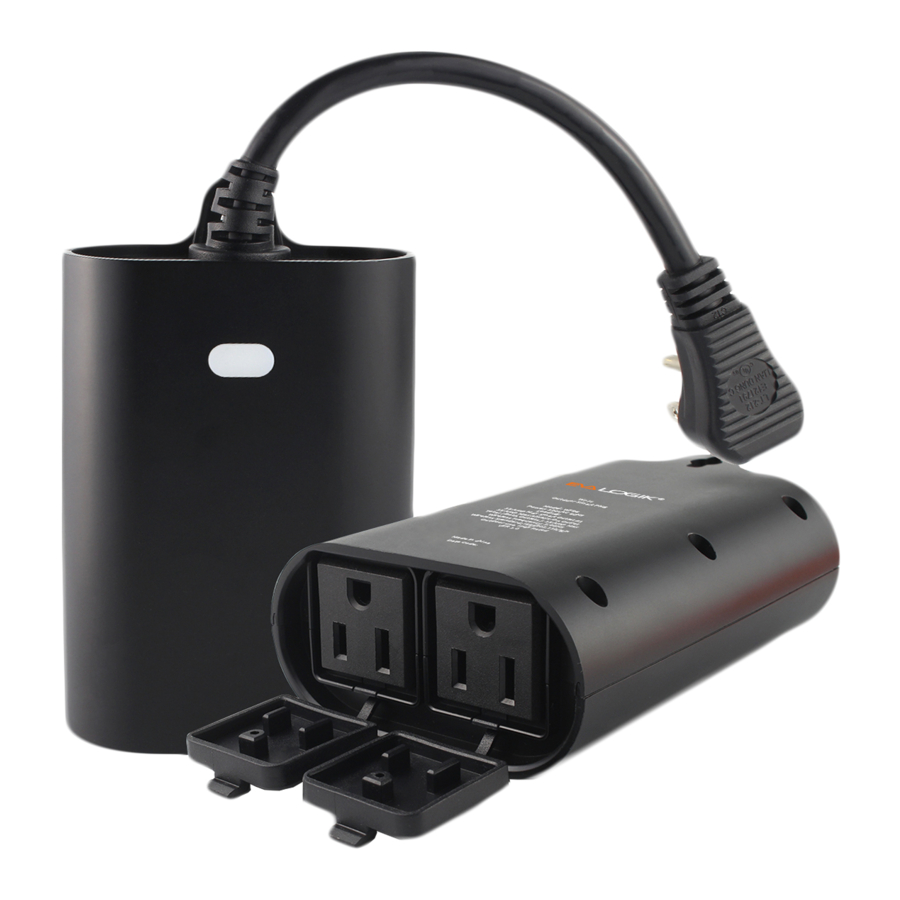

Outdoor Smart Plug
( 2 channel )
• ZW97 •
(A) Manual / Program button
A
C
B
(B/C) Smart Outlet
For outdoor use
IP65 rated
Specifications
Model: ZW97
Power: 120VAC, 60Hz
Loading : 15 Amp Smart Outlet*2
Total(Both Outlets): 15 Amp Max
Frequency: 908.42 MHz
Operating Temperature: -4° F~122° F
Meet your new smart plug !
+
Note:
Include the device to the network
within 10 feet of the controller when
adding to the controller then
relocate it to the desired position in
your home, no more than 100 feet
distance from controller. Be sure to
refresh the network while the device
is included in this manner.
Add to Z-Wave Network
Put the Z-wave interface controller into "Add" mode, triple press
the Program button (A). It will be included to network. (Once your
controller confirmed, refresh the Z-Wave network to optimize
performance. )
Remove from Z-Wave Network
Put the Z-Wave interface controller into "Remove" mode, triple
press the Program button (A). It will be excluded to network.
To return your switch to factory defaults
Manual reset: Click the button 2 times quickly, and hold for at least
10 seconds.
Host reset: Remove it from the host and the device is factory reset.
Note: This should only be used in the event your network's primary
controller is missing or otherwise inoperable.
press 1x: On/Off the Left outlet
press 2x: On/Off the Right outlet
hold 3s: On/Off simultaneously.
Those are your smart outlets that will be
included to your smart Hub/Gateway.
Plug * 1
Screw * 1
Plastic Anchor * 1
Manual * 1
100 feet
• White LED indicator
Z-Wave Internet
The Internet of Things offers tremendous promise to consumers by
enabling remote control and management of an ever-growing variety
of connected devices—from home security systems to energy manage-
ment, appliances and lighting, and remote home monitoring, just to
name a few categories.
Analysts predict that billions of devices will be connected to the
Internet of Things in the coming years. One key consideration is how
all of these devices will be integrated and controlled, and common
standards are key to enabling simple, straight forward installation and
management of devices in the connected home.
The Z-Wave protocol is an interoperable, wireless, RF-based communi-
cations technology designed specifically for control, monitoring and
status reading applications in residential and light commercial
environments. Mature, proven and broadly deployed (with over 100
million products sold worldwide), Z-Wave is by far the world market
leader in wireless control, bringing affordable, reliable and
easy-to-use 'smart' products to many millions of people in every
aspect of daily life.
Introduction
The EVA LOGIK ZW97 is a Z-Wave enabled 15A receptacle designed for
using of most residential lighting and motor applications. It's compatible
with LED, halogen, incandescent, xenon, fluorescent and compact
fluorescent bulbs.The ZW97 fully works with the Fibaro, Smartthings,
Wink hub as well as all other certified Z-Wave controllers.
One Z-Wave controlled AC outlet for standard incandescent
lighting, CFL/LED. Total load capacity for both outlets is
15A(1800W) Resistive.
Plug the device you want to control into the Z-Wave Smart plug
controlled outlet .
NOTE: Plug directly into outlet, do not use with extension cords.
Parameter Settings
1: ADD/REMOVE
--Manual add mode: Press the button 3 times
--Auto-add mode: LED will blink within 30 seconds after power on
press 1x: On/Off the Left outlet
press 2x: On/Off the Right outlet
hold 3s: On/Off simultaneously.
2: Factory reset:
Manual : Click the button 2 times quickly, and hold for at least
10 seconds
Host reset: Remove it from the host and the device is factory reset.
3: Association
Support 3 groups, each group max support 2 devices
(LED flashes 2 times when the configuration parameter changed.)
Group 1 lifeline
Group 2 left outlet send basic set
Group 3 right outlet send basic set
4: LED Indicator
(LED flashes 2 times when the configuration parameter changed.)
quickly press 6x: change parameter
--Parameter =1, size =1 byte, value=00(default)output on, LED on
--Parameter =1, size =1 byte, value=01
--Parameter =1, size =1 byte, value=02
5:
Auto Turn-Off Timer
(LED flashes 2 times when the configuration parameter changed.)
--Parameter =2, size=4 byte, value= 1 – 65535 (Min), left outlet off
--Parameter =3, size=4 byte, value= 1 – 65535 (Min), right outlet off
6:
Auto Turn-On Timer
(LED flashes 2 times when the configuration parameter changed.)
--Parameter =4, size=4 byte, value= 1 – 65535 (Min), left outlet on
--Parameter =5, size=4 byte, value= 1 – 65535 (Min), right outlet on
7：Restores state after power failure(quickly press 10x: change Parameter)
(LED flashes 2 times when the configuration parameter changed.)
Parameter=6，Size=1，Value=0 output off
Value=1 output on
Value=2 out put the state after power(default)
output on, LED off
LED no work
