Summary of Contents for Mistral RDC 160 PV

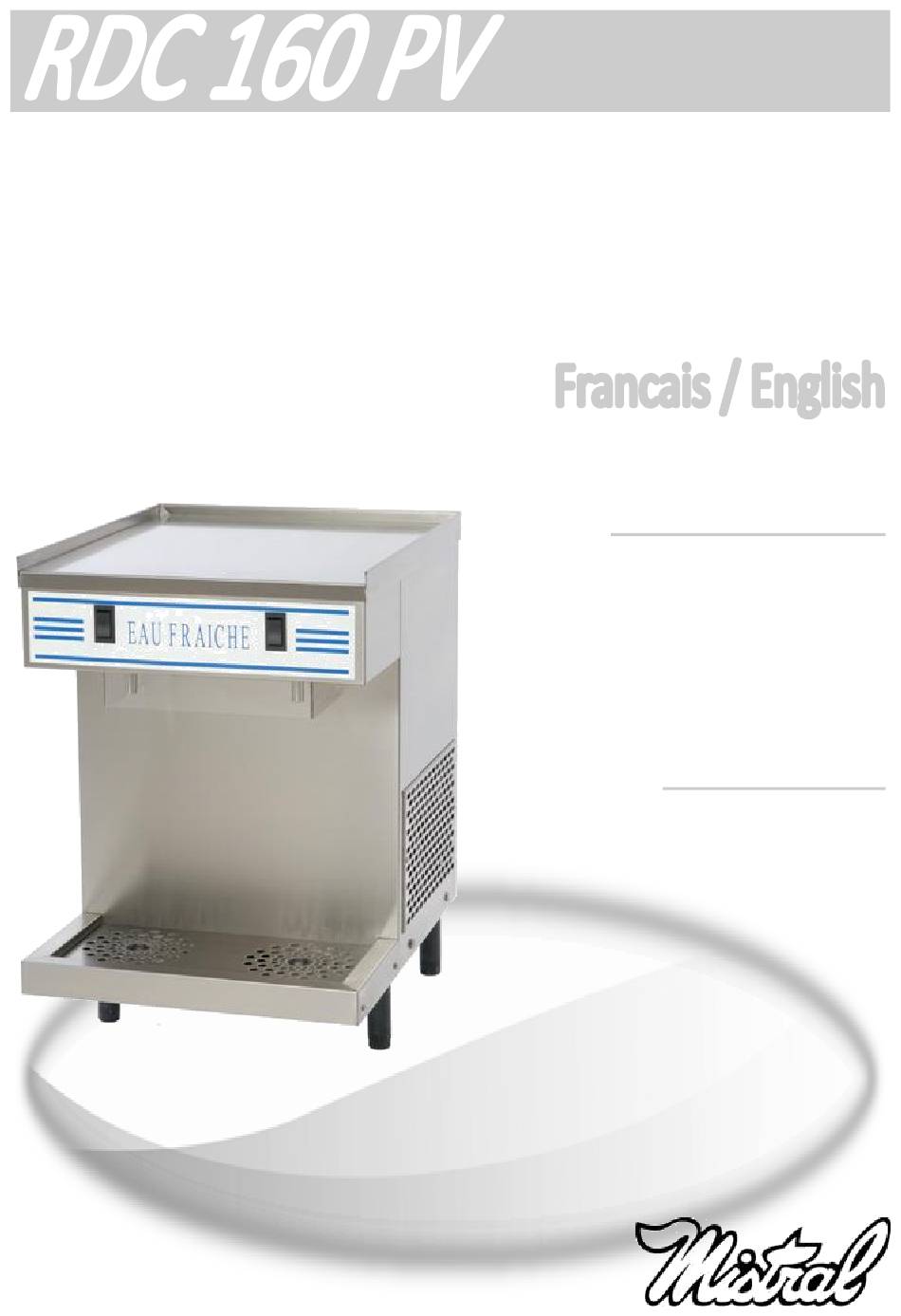

  • Page 1 Notice d’installation Manual Version disponible : froide Available version: cold 16042013...
  • Page 2: Table Of Contents

    RECOMMANDATIONS PAGE 3 - TRANSPORT PAGE 3 - STOCKAGE DES FONTAINES PAGE 3 - UTILISATION PAGE 3 PAGE 4 DONNEES TECHNIQUES EQUIPEMENT / IDENTIFICATION PAGE 5 CLAVIERS DE COMMANDE ET FONCTIONS PAGE 6 INSTALLATION PAGE 7 à 9 - POUR TOUTES LES VERSIONS PAGE 7 à...
  • Page 3: Recommandations

    Lire attentivement toutes les instructions et les conserver pour s’y référer plus tard. Pour votre sécurité, débrancher la fontaine de son alimentation électrique afin d’éviter les risques de blessures ou de choc électrique lors d’une intervention sur celle-ci. Ne pas introduire d’objets métalliques, ni vos doigts dans l’appareil pour ne pas l’endommager et éviter tout risque de choc électrique.
  • Page 4: Donnees Techniques

    DIMENSIONS (en mm) FONTAINE : 410x513x400 CARTON : 430x550x540 POIDS : 33 kg COMPRESSEUR : 1/5 ch CHARGE : 160g GAZ : R134A ALIMENTATION (Volt/Hz) : 220 - 240 VAC / 50-60Hz INTENSITE : 1,4 A PUISSANCE : 300 Watts SYSTEME DE DISTRIBUTION D’EAU : 24 V PRESSION D’ENTREE MAXIMALE SUPPORTEE : 4 Bars (0.4Mpa) DEBIT : 300 L / H...
  • Page 5: Equipement / Identification

    Une notice d’installation. Un tuyau d’arrivée d’eau 6x8mm noir. Un raccord instantané 12x17, 6/8mm mâle. Un tuyau de vidange 20x27 sortant de l’appareil pour l’évacuation. Un cordon électrique de 2 mètres. Un water block équipé avec son raccord (en option). Un filtre FILTROPURE triple action 5000 (en option).
  • Page 6: Claviers De Commande Et Fonctions

    Clavier pour version eau froide : Eau froide Eau froide...
  • Page 7 Les opérations d’installation et de maintenance doivent être réalisées uniquement par un personnel qualifié. Contactez le service ou l’entreprise en charge de la maintenance pour toutes interventions. Avant de commencer l’installation de la fontaine Branchement en eau : prévoir à gauche ou à droite, près de la fontaine, un robinet d’arrêt avec une sortie en ¾...
  • Page 8 Veillez à ce que la fontaine soit débranchée. A l’aide d’un tournevis plat, retirer les 2 visses situées sur les cotés, en haut de la fontaine. Puis soulever le capot de la fontaine. Soulever le couvercle noir de la cuve. Remplir la cuve de réfrigération en eau jusqu’à...
  • Page 9: Installation Page 7 À

    Branchement du filtre (en option). Fermer l’arrivée d’eau. Vider la pression du circuit d’eau. Retirer le raccord-coudé (1) situé au dos de la fontaine. Connecter le tube+rondelle (1) sur l’entrée du filtre (comme indiqué sur la photo). Respecter bien le sens de circulation d’eau du filtre matérialisation par une flèche.
  • Page 10: Entretien

    Entretien extérieur régulier Il est important de procéder à un nettoyage extérieur régulier de l’appareil afin de le maintenir propre pour ses utilisateurs. Nous préconisons un nettoyage hebdomadaire de votre fontaine : Nettoyer la carrosserie Inox avec PURINOX (ou équivalent) - La surface à...
  • Page 11: Desinfection Des Circuits D'eau

    Pour garantir la longévité du matériel et son bon fonctionnement, Mistral préconise 2 entretiens sanitaires par an qui doivent être réalisé par un technicien qualifié. Veillez à ce que la fontaine soit débranchée. Ne jamais verser de chlorure de sodium (sel marin) ou ses dérivés (eau de javel) dans la cuve du bac de réfri- gération contenant les serpentins inox.
  • Page 12: Maintenance Page 11 À

    Nettoyage du Clapet anti-retour Situé à l’arrière de la fontaine, le clapet anti-retour est un système efficace anti-pollution de l’eau. Contrôler le bon fonctionnement du clapet au moins une fois par an : - Fermer l’arrivée d’eau - Ouvrir la purge (1) - Contrôler le non retour de l’eau.
  • Page 13: Contrôle Des Pannes

    Contrôle des pannes TYPE DE PANNES CONTROLE A EFFECTUER PAS D’EAU LE ROBINET D’ARRIVEE D’EAU EST-IL OUVERT ? LE CORDON D’ALIMENTATION EST-IL BRANCHÉ ? LE WATER BLOCK EST-IL BLOQUE ? P.10 PAS DE FROID LE CORDON D’ALIMENTATION EST-IL BRANCHE ? LA CUVE EST-ELLE BIEN REMPLIE EN EAU ? LE COMPRESSEUR TOURNE -T-IL ? (Vibrations) LA COSSE DE LA POMPTE AGITATRICE EST-ELLE BRANCHEE ?
  • Page 14: Schemas

    Schémas SCHEMA HYDRAULIQUE PIECES ELEMENTAIRES SCHEMA ELECTRIQUE Désignation 5210100 Compresseur 1/5 ch vanne Contacteur 5754002 Relais Compresseur 1/5 CH 5512001 Klixon 5582002 Moteur Ventilateur 5 W vanne 5454002 Hélice Diamètre 200mm Contacteur 6102000 Tube PE Noir 6x8 5840008 Thermostat Froid BDG 5727009 Raccord Inst.Equerre Egale 6x8 5328003...
  • Page 15 PAGE 2 FRENCH VERSION RECOMMENDATIONS PAGE 16 - WATER COOLERS STORAGE PAGE 16 PAGE 16 - TRANSPORTATION - UTILISATION PAGE 16 PAGE 17 TECHNICAL SPECIFICATIONS WATER COOLER ACCESSORIES / PAGE 18 EQUIPMENT IDENTIFICATION CONTROL PANEL AND FUNCTIONS PAGE 19 INSTALLATION PAGE 20 to 22 CLEANING PAGE 23...
  • Page 16: Recommendations

    Please read through all of the following instructions carefully and keep them in a safe place for future reference. In case of servicing, for your security, always unplug the water cooler to avoid any risk of injuries or electric shocks. Never place your fingers or any metal object inside the water cooler.
  • Page 17: Technical Specifications

    MEASUREMENTS (en mm) COOLER : 410x513x400 : 430x550x540 WEIGHT : 33 kg COMPRESSOR : 1/5 ch CHARGE : 160g GAS : R134A ELECTRICITY (Volt/Hz) : 220 - 240 VAC / 50-60Hz INTENSITE : 1,4 A WATT : 300 W WATER DISTRIBUTION SYSTEM : 24 V MAXIMUM INPUT PRESSURE : 4 Bars (0.4Mpa) FLOW RATE : 300 L / H COLD WATER PRODUCTION : 80L/H delta T 10°C...
  • Page 18: Water Cooler Accessories

    One installation manual. One black 6x8mm tube. One touch fitting 12x17, 6/8mm male. One drain tube 20x27 for draining. One 2 meters electrical plug. One water block equiped with its connector (n option). One triple action 5000 FILTROPURE filter (in option). One pressure reducer kit (in option).
  • Page 19: Control Panel And Functions

    Panel control for cold water version: Cold water Cold water...
  • Page 20 The installation and maintenance operations have to be realised only by qualified persons. Please, contact your department or the company which is in charge of maintenances. Before setting up the water cooler Water supply : a stopcock with a female ¾ (20/27) output has to be located at the left or the right near the water cooler.
  • Page 21 Make sure that water cooler is disconnected. Using a screwdriver, remove the 2 screws, located on each top sides of the cooler. Then lift the lid. Remove the black cap from the tank. Fill the tank with water until the stainless steel coils im- mersive.
  • Page 22: Installation Page 20 To

    Filter connection (in option). Turn off the water supply. Empty water pression of the circuit. Pull off the stem elbow. Connect the tube+rounded part (1) on the filter entrance (cf photo). Respect water flow circula- tion (see the arrow). CAUTION Do not flush out the filter trought the taps because it will damage the solenoid.
  • Page 23: Cleaning

    Outside Cooler cleaning It is important to proceed to a regular cleaning of the machine in order to maintain the cooler clean for all end-users. We recommend a weekly cleaning of your water cooler with: Stainless steel cleaning PURINOX (or equivalent) For stainless steel areas, use PURINOX, professionnal product to clean et shine stainless steel surfaces: - The surface to clean must be dry.
  • Page 24: Sanitization Of The Water Circuits

    To ensure the longevity of the equipment and its proper functio- ning, Mistral recommands two maintenance per year, made by a qualified technician. Make sure that water cooler is disconnected. Never pour sodium chloride (salt) or its derivatives (bleach) in the tank containing stainless steel coils.
  • Page 25: Non-Return Valve Cleaning

    Non-return valve cleaning Located at the back, the non-return valve is an efficient systeme to keep water clear. Control the proper functioning of the non-return valve at least one a year: - Turn off the water supply - Open the purge (1) - Control the non return of the water.
  • Page 26: Fault Finding

    Fault finding FAULT CHECKING NO WATER IS THE WATER SUPPLY TAP TURNED ON? IS THE POWER CABLE PLUGGED IN? IS THE WATERBLOCK JAMMED? P.21 NO COLD WATER IS THE POWER CABLE PLUGGED IN? IS THE TANK FILLED? DOES THE COMPRESSOR WORK? (Vibrations) IS THE AGITATOR PUMP SWITH ON? TOO COLD IS THE THERMOSTAT SET?
  • Page 27: Service Page 24 To

    Spare parts drawing HYDRAULIC SCHEME MAINS SPARE PARTS ELECTRIC SCHEME Désignation vanne 5210100 Compressor 1/5 ch Contacteur 5754002 Relay Compressor 1/5 ch 5512001 Klixon 5582002 Fan engine 5w vanne Contacteur 5454002 Fan diameter 200mm 6102000 6x8 black PE tube 5840008 Cold thermostat 5727009 6x8 equal elbow connector...
  • Page 28 2, Avenue Ambroise Croizat - ZI du Bois de l’Epine 91031 Evry Cedex - Ris Orangis FRANCE Tel: 33 (0)1 60 79 37 61 Fax: 33(0)1 60 79 18 26 www.mistralcoolers.com Mistral Constructeur - Toute reproduction est interdite - Document non contractuel...
