Hubbell GAI-TRONICS 711-102 Manual

Pub. 42004-642L2F
G A I - T R O N I C S
®
A H U B B E L L C O M P A N Y
711-102 and 7115-102 Desk-Edge Subsets

Confidentiality Notice

This manual is provided solely as an installation, operation, and maintenance guide and contains sensitive
business and technical information that is confidential and proprietary to GAI-Tronics. GAI-Tronics
retains all intellectual property and other rights in or to the information contained herein, and such
information may only be used in connection with the operation of your GAI-Tronics product or system.
This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third
party.
The following are trademarks of GAI-Tronics Corporation:
® ® TM
SmartSeries Page/Party ADVANCE™ SmartVolume

General Information

Product Overview

The Model 711-102 Single Party and Model 7115-
102 Multi-party Desk-Edge Subsets are intended for
use in GAI-Tronics Page/Party and SmartSeries
systems.
The subsets enable paging and party line
communication when installed with a remote
amplifier and enclosure. The remote subset includes
a pressbar handset, a handset cradle, and a five-party
rotary selector switch (Model 7115-102 Subset
only).
The subset's compact design allows it to be mounted
where space is limited. The compact size is made
possible by housing most of the support electronics
in a separate remote amplifier enclosure.
The angle bracket, supplied with the subset, supports
a wide variety of mounting options. The integral
connectorized cable permits mounting the subset up
to eight feet from the amplifier.

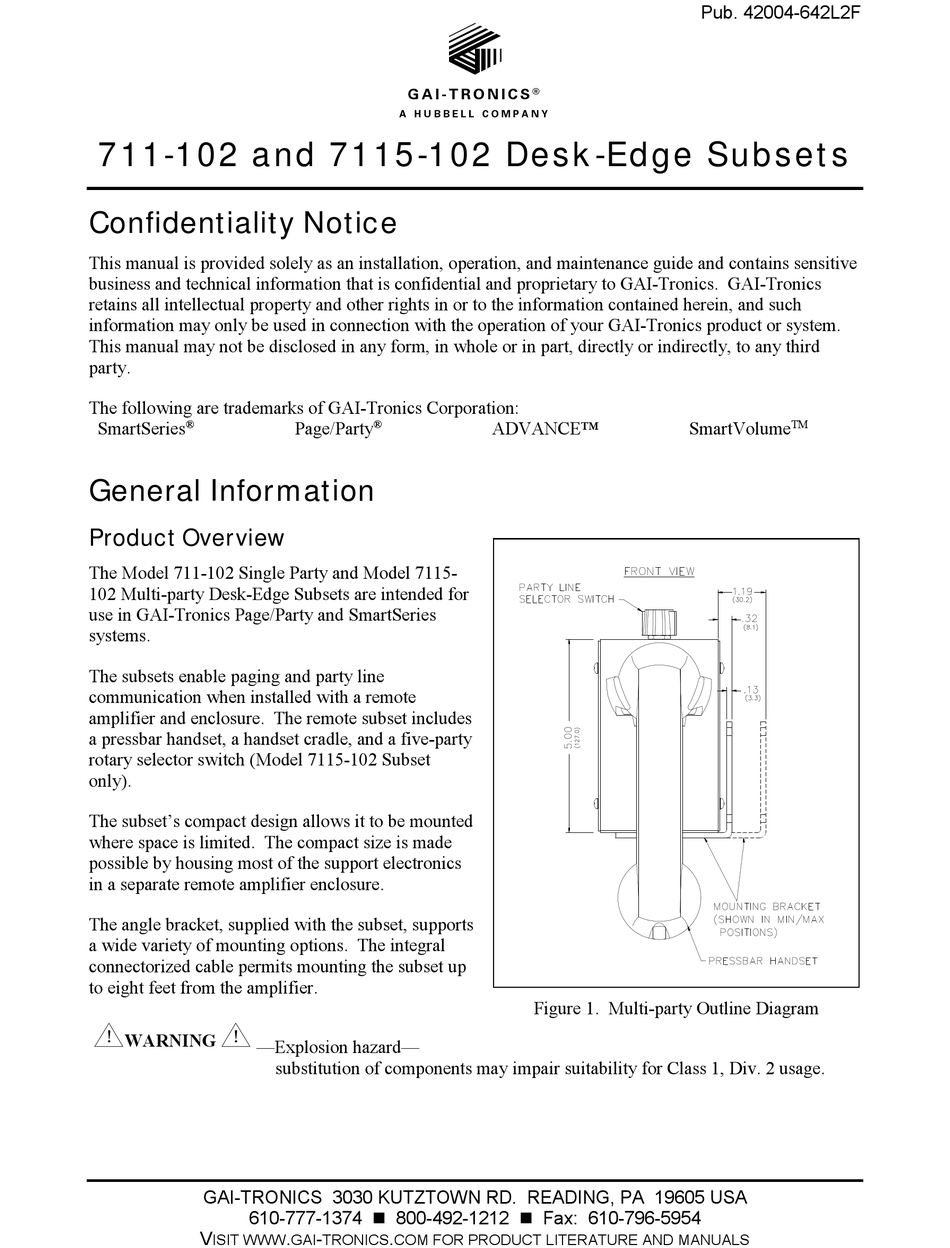

Figure 1. Multi-party Outline Diagram
WARNING
—Explosion hazard—
substitution of components may impair suitability for Class 1, Div. 2 usage.
GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA
610-777-1374  800-492-1212  Fax: 610-796-5954
V . - .
ISIT WWW GAI TRONICS COM FOR PRODUCT LITERATURE AND MANUALS
