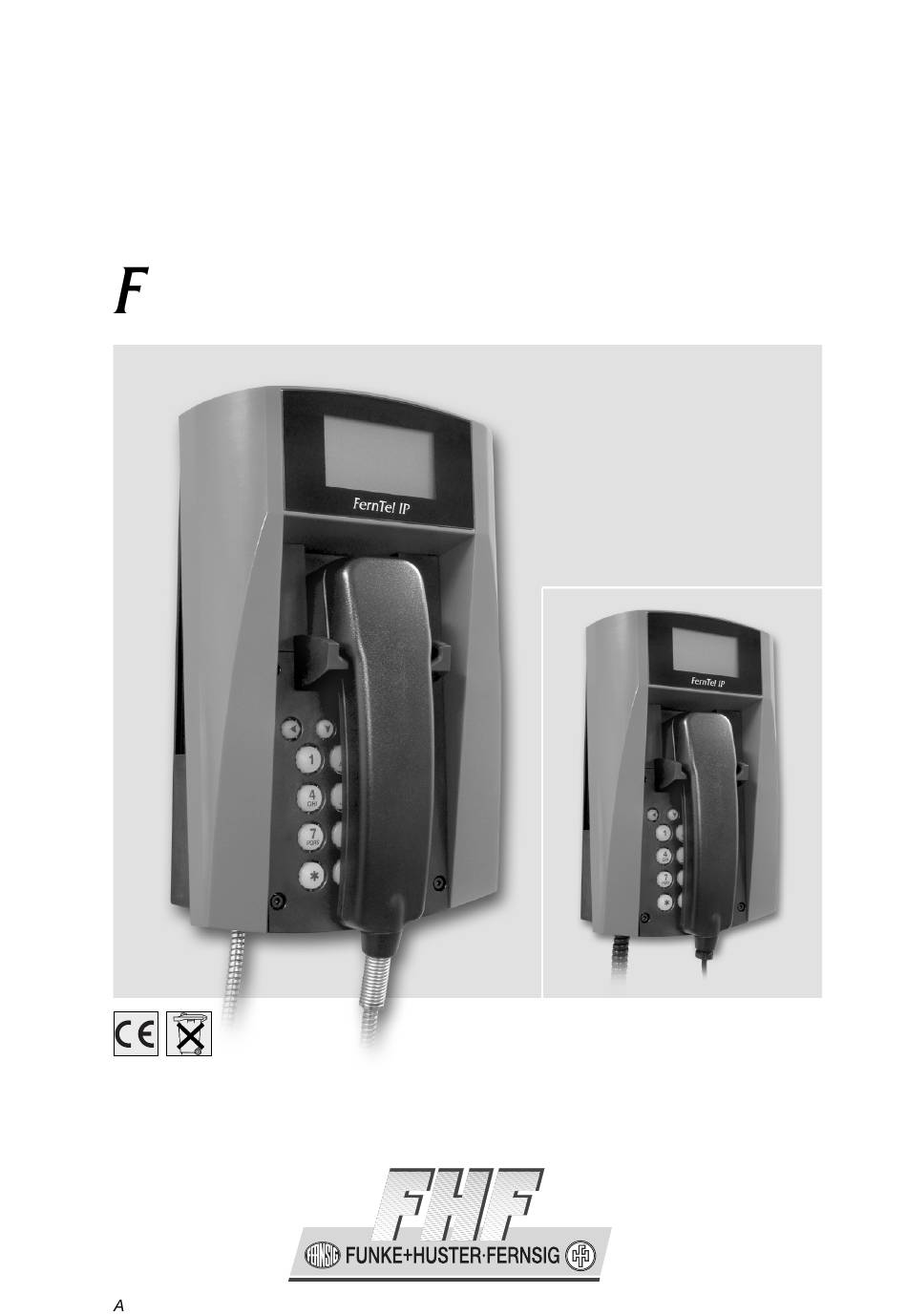

  • Page 1 Weatherproof VoIP-telephone ernTel IP Ship Short manual FHF B 9620-09 07/12...
  • Page 2 Texts and illustrations have been compiled and software created with the utmost care, however errors cannot be completely ruled out. This documentation is therefore supplied under exclusion of any liability or warranty of suitability for specific purposes. FHF reserves the right to improve or modify this documentation without prior notice. Note Please read the operating manual carefully before installing the device.

  • Page 3: Table Of Contents

    Table of Contents VoIP-Telephone FernTel IP Ship ........4 FernTel IP Ship Keypad Description..........4 Display................... 6 Mounting and Installing............... 7 1.3.1 Wall Mounting .................. 7 1.3.2 LAN-Connections ................8 1.3.3 General.................... 9 As-Delivered Condition ..............9 EMC Directive................9 Operating Manual ..............

  • Page 4: Voip-Telephone Ferntel Ip Ship

    1 VoIP-Telephone FernTel IP Ship 1.1 FernTel IP Ship Keypad Description Menu operations keys Menu Disconnect Last number redial Enquiry key _______________________________ Number keys Figure 1: Keypad of the VoIP-telephone FernTel IP Ship Page 4 Short manual FernTel IP Ship...
  • Page 5 The Asterisk and Hash keys have special functions for touchtone dialling. The Clearing key is used in input mode to delete the characters left to the cursor. Table 1: Keys and function elements FernTel IP Ship Short manual FernTel IP Ship Page 5...

  • Page 6: Display

    1.2 Display The display of the VoIP telephone FernTel IP Ship has 6 lines with max. 21 characters and a state line for showing information. The name and telephone number of the current registration is displayed in the first line.

  • Page 7: Mounting And Installing

    Place the telephone in the upper latches (A), swing it downwards until the lower latches audibly engage (B). Remove the keypad plate (6), and tighten the two locking screws (3) as far as they will go. Important: This preserves the IP65 degree of protection. Short manual FernTel IP Ship Page 7...

  • Page 8: Lan-Connections

    LAN cable with the short, 8pin piece of cable within the telephone. Follow the instructions on the bag for shortening and placing the individual conductors and secure the LAN cable to the connector. Please pay attention to the Page 8 Short manual FernTel IP Ship...

  • Page 9: General

    The device complies with the requirements of the new EMC-directive 2004/108/EC, the low voltage directive 2006/95/EC and the R&TTE directive 1999/5/EC. The conformity with the above directives is confirmed by the CE sign. Short manual FernTel IP Ship Page 9...

  • Page 10: Operating Manual

    Operating Manual 2.1 Operating Basics The keys below the display ( ) of the VoIP-telephone FernTel IP Ship serve menu navigation and edit field input purposes. These keys are assigned to additional functions, as explained below. Key assignment in menu: The function …...

  • Page 11: Adjusting The Volume

    The hookswitch LED will be switched on and you will be connected to the caller. To reject the call, press the key . The phone returns to the idle state and the caller will hear an engaged tone. Short manual FernTel IP Ship Page 11...

  • Page 12: Terminating A Call

    You can move the cursor with the keys and delete digits left to the cursor with the key 3. Pressing the key the dialling will be executed at once. Page 12 Short manual FernTel IP Ship...

  • Page 13: Dialling During Active Connection

    2. Use the arrow keys to select the desired entry. 3. To start dialling, pick up the handset or use the key respectively Short manual FernTel IP Ship Page 13...

  • Page 14: Call Back

    2. Use the arrow keys to select the desired entry. 3. To start dialling, pick up the handset or use the key respectively Page 14 Short manual FernTel IP Ship...

  • Page 15: Muting

    (see Figure 11). 2. Dial the call number. A further connection is established 3. To terminate the enquiry call, press the key . You return to the conversation partner previously put on hold. Short manual FernTel IP Ship Page 15...

  • Page 16: Switching

    The connection is established. If the called party answers, this can be treated like a second call, as above. 3. Press the key followed by the key . The caller will be connected with the dialled port. Page 16 Short manual FernTel IP Ship...

  • Page 17: Transferring A Call Directly

    A conference is set up between the active line and the line on hold. All the subscribers can now talk with each other (see Figure 15). Short manual FernTel IP Ship Page 17...
  • Page 18 3. To terminate the active line, you must press the key . The connection to the active conversation partner is terminated. Page 18 Short manual FernTel IP Ship...
  • Page 20 Subject to alterations or errors FHF Funke + Huster Fernsig GmbH Gewerbeallee 15-19 · D-45478 Mülheim an der Ruhr Phone +49 / 208 / 82 68-0 · Fax +49 / 208 / 82 68-286 http://www.fhf.de · e-mail: info@fhf.de...
