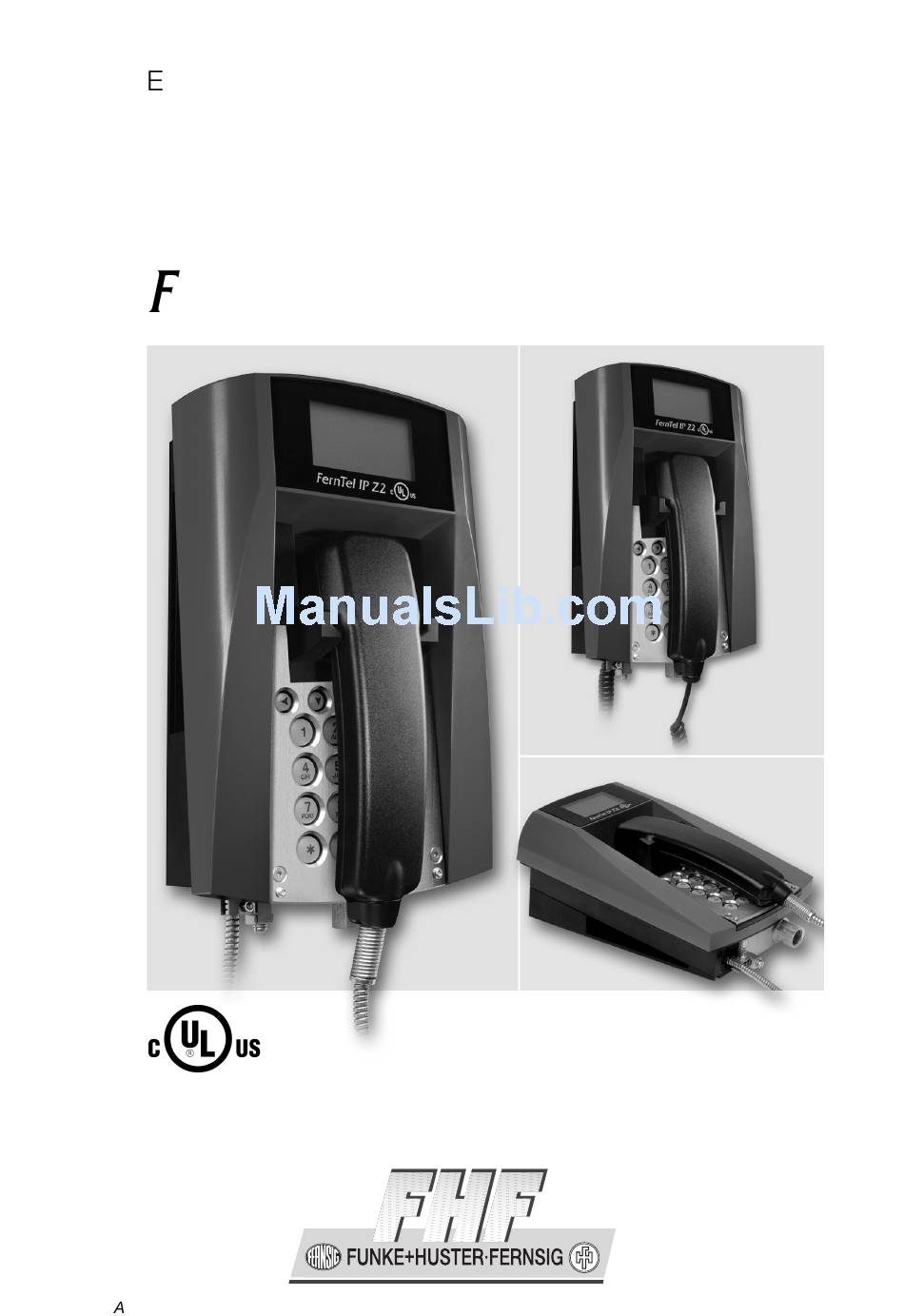

- Page 1 UL certified VoIP telephone ernTel IP Z2 UL Tabletop unit Manual FHF B 9620-51 09/12...
- Page 2 Texts and illustrations have been compiled and software created with the utmost care, however errors cannot be completely ruled out. This documentation is therefore supplied under exclusion of any liability or warranty of suitability for specific purposes. FHF reserves the right to improve or modify this documentation without prior notice. Note Please read the operating manual carefully before installing the device.
-
Page 3: Table Of Contents
Operating Position ............6 Information..............6 Service................6 Care and Maintenance ............. 7 Disposal................7 Warning and Security Instructions........7 Declarations and Approvals ........... 11 UL Certificates FernTel IP Z2 UL ........11 Technical Data..............13 Page Manual FernTel IP Z2 UL... -
Page 4: General
The FernTel IP Z2 UL telephone must be connected to a LAN (Local Area Network) connection equipped with PoE (Power over Ethernet). Contrary to the standard FernTel IP / IP150, the FernTel IP Z2 UL has no LAN cable plug bush. Also, there is no second LAN receptacle on the right-hand side of the telephone. -
Page 5: Lan Connection
2.1.1 LAN Connection Remove the keypad plate (Position 6) of the FernTel IP Z2 UL, guide the LAN cable through the cable gland (tube connection with ½” NPT thread)(Position 4) on the lower side of the telephone and secure the cable using the cable gland. -
Page 6: Connection Potential Equalisation
The FernTel IP Z2 UL delivery includes a bag with a connector socket with a cut-and clamp device for connecting the LAN cable with the short, 8 pin cable piece within the telephone. Follow the instructions on the bag for shortening and placing the individual conductors and secure the LAN cable to the connector. -
Page 7: Care And Maintenance
For repairing only original exchange parts are allowed, which have to be • changed professional. Other exchange parts may cause damages and the warranty will be lost. Page Manual FernTel IP Z2 UL... - Page 8 The potential equalisation must exist inside and outside of the explosion at risk area. The potential equalisation is necessary to support the explosion protection. Page Manual FernTel IP Z2 UL...
- Page 9 It is not allowed to operate the device with an additional cover. • Make sure the wiring is voltage-free upon connecting or disconnecting the wires in the terminal room. Page Manual FernTel IP Z2 UL...
- Page 10 Should these points not be observed, the explosion protection of the device cannot be guaranteed. The device then poses a potential threat to the user’s life and can cause the ignition of an explosive atmosphere. Page Manual FernTel IP Z2 UL...
-
Page 11: Declarations And Approvals
Declarations and Approvals 4.1 UL Certificates FernTel IP Z2 UL Page Manual FernTel IP Z2 UL... - Page 12 Page Manual FernTel IP Z2 UL...
-
Page 13: Technical Data
Electret-foil microphone Receiver inset Dynamic receiver inset with magnetic field generator Environmental conditions Ambient operating temperature -20°C…+55°C (-4°F…+131°F) At a temperature below -10°C (14°F) there may be a delayed reaction of the LCD display Page Manual FernTel IP Z2 UL... - Page 14 File numbers E304856, E337081 Enclosure type rating Type 3 Hazardous location designation Class I, Division 2, Groups A, B, C, D Operating temperature code User interface Web-interface (administration) English Telephone (user menu) 16 languages adjustable Page Manual FernTel IP Z2 UL...
- Page 16 Subject to alterations or errors FHF Funke + Huster Fernsig GmbH Gewerbeallee 15-19 · D-45478 Mülheim an der Ruhr Phone +49 / 208 / 82 68-0 · Fax +49 / 208 / 82 68-286 http://www.fhf.de · e-mail: info@fhf.de...
