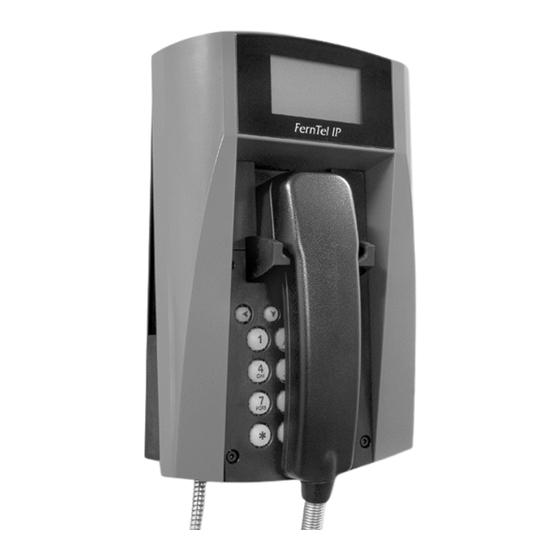

- Page 1 Weatherproof VoIP-telephone ernTel IP / IP150 Tabletop unit Short manual FHF B 9620-04 01/16 V8 / V9...
- Page 2 Texts and illustrations have been compiled and software created with the utmost care, however errors cannot be completely ruled out. This documentation is therefore supplied under exclusion of any liability or warranty of suitability for specific purposes. FHF reserves the right to improve or modify this documentation without prior notice. Note Please read the operating manual carefully before installing the device.
-
Page 3: Table Of Contents
Table of Contents VoIP-Telephone FernTel IP / IP150 ........ 4 FernTel IP / IP150 Keypad Description ......4 Display ................5 1.2.1 Default Display ..............5 1.2.2 Menu and Listing Display ............7 Mounting and Installing ..........8 1.3.1 Wall Version ................8 1.3.2 Table Version ................. -
Page 4: Voip-Telephone Ferntel Ip / Ip150
1 VoIP-Telephone FernTel IP / IP150 1.1 FernTel IP / IP150 Keypad Description Menu operations keys Menu Disconnect Last number redial Enquiry key _______________________________ Number keys Figure 1: Keypad of the VoIP-Telephone FernTel IP / IP150... -
Page 5: Display
Symbol Description and key function The Menu key is used to open the main menu or save changes. The Disconnect key is used to terminate calls or any menu. The Enquiry key is used to enable the "Hold" and "Switch" functions. - Page 6 Torsten 06.01.06 14:40 Figure 2: Display of the VoIP Telephone FernTel IP / IP150 Position Symbol Description Name (H.323 or SIP ID or nickname of the PBX configuration) Status line; provides information on the current status of the telephone by means of the following symbols. 06.04.10 Date 14:00 Time...
-
Page 7: Menu And Listing Display
1.2.2 Menu and Listing Display The first six lines are used for the menu and listing display. The last line is used for display of menu level, display name, scroll information and type of entry. 1 2 3 5 display name Figure 3: Menu and Listing Display of the VoIP Telephone FernTel IP / IP150 Position... -
Page 8: Mounting And Installing
1.3 Mounting and Installing 1.3.1 Wall Version Fasten the telephone mount with 4 screws (2). Place the provided washers Ø 18 mm under the screw head. Bore illustration (not to scale) Figure 4: Mounting on a Wall Place the telephone in the upper latches (A), swing it downwards until the lower latches audibly engage (B). -
Page 9: Table Version
Top view with Top view Bottom view keypad disconnected keypad *depending on version Figure 5: Set View Plug the ribbon cable onto the pin contact strip (7) of the keypad plate. Tighten the keypad plate (6) using four screws (8). The fixing screws (8) are provided with sealing plugs (10). -
Page 10: Lan-Connections
Side view Bottom view Top view keypad *depending on version Figure 6: Desktop Mounting The standard handset accommodation (for the wall version) (9) can be replaced for the table version. After loosening the two screws (12) on the bottom of the keypad plate you can remove the standard handset accommodation. -
Page 11: General
additional FernTel IP / IP150 directly. The TCP/IP data, sent to the telephone via the connector at position 4 in Figure 5, will not be redirected via the connector at the side of the telephone. The LAN-connector of the FernTel IP / IP150 at the side has to be closed with the cover mounted to the telephone during time of no use, to preserve the IP65 degree of protection. -
Page 12: Operating Manual
The appropriate standards, technical regulations und specifications you can take (optional) from the attached conformity declaration and the conformity declarations on our Website. Operating Manual 2.1 Operating Basics The keys below the display ( ) of the VoIP-telephone FernTel IP / IP150 serve menu navigation and for edit field input purposes. -
Page 13: Adjusting The Volume
2.1.1 Adjusting the Volume You can adjust the volume while establishing connections as well as during calls. The volume remains on this level after the call. The "Vol." indicator shows the current value (see Figure 7). You can increase the volume level by pressing the key You can reduce the volume level by pressing the key Martin Vol ... -
Page 14: Call Functions
2.2 Call Functions 2.2.1 Answering Calls You receive a call and your phone rings. The name or phone number of the caller is displayed. The name or phone number of the person for whom the call is intended is also displayed. This is particularly useful in the event of multiple registrations on your telephone in order to identify the actual caller when a call is diverted to your telephone. -
Page 15: Single Dialling
2.2.3.1 Single Dialling For single dialling take the following steps: Torsten 0211654321 Please dial 06.01.06 14:40 0:00 Figure 10: Direct Dialling 1. Pick up the handset. 2. Enter the phone number. In this case the VoIP telephone dials the number while it is being entered 3. -
Page 16: Redialling
2.2.4 Redialling Up to 100 of the last numbers dialled are saved automatically, together with the time and date, and can be dialled again. 01 06.02.05 11:30 Martin (Martin – 73) 02 06.02.05 11:30 Thomas (Thomas – 70) 03 06.03.05 11:29 Peter (Peter - 36) Calls (outbound) Figure 11: List of Recently Dialled Numbers... -
Page 17: Call Back
2.2.5 Call Back Up to 100 of the last incoming calls are saved automatically, together with the time and date, and can be called back, if the number of the caller was transmitted. 01 06.02.05 11:30 Martin (Martin – 73) 02 06.02.05 11:30 Thomas (Thomas –... -
Page 18: Muting
2.2.6 Muting You can mute the microphone during a call to make a confidential enquiry in the room without being heard on the phone. Torsten Thomas 06.01.06 14:40 0:22 Figure 13: Muting 1. Press the key during a call. The microphone symbol " " flashes (see Figure 13). -
Page 19: Switching
2.2.8 Switching You can switch between two connections using the switch function. Torsten Peter Torsten Thomas 06.01.06 14:40 0:22 Figure 15: Switching 1. Press the key twice or the key followed by the key during a call with an active line and a line on hold. The active line is put on hold and the line on hold is activated (see Figure 15). -
Page 20: Transferring A Call Directly
2.2.10 Transferring a Call directly You are making a call and would like to transfer it to another party directly. Transfer Figure 17: Transferring a Call directly 1. Press the key during a call. 2. You will be left. The actual connection will not be displayed. 3. - Page 21 2. You can end the conference by pressing the key respective the key followed by the key or twice the key . If you end the conference with pressing the key or the key followed by the key , the call put on hold prior to the initiated conference is now on hold again and the previously active call is active once again.
- Page 22 FHF Funke + Huster Fernsig GmbH Gewerbeallee 15-19 · D-45478 Mülheim an der Ruhr · Web: www.fhf.de Phone +49 - 208 - 8268-0 · Fax +49 - 208 - 8268-286 · Mail: info@fhf.de Orders: fhf-orders@eaton.com · Requests: fhf-sales@eaton.com Support: fhf-support@eaton.com...
