DirecTV TiVo TCD24 Series Upgrade Instructions

TIVO DVR UPGRADE INSTRUCTIONS (#79)
(c) 2001-2006, weaKnees. All rights reserved.
Instructions for TwinBreeze® Gen2 / DIRECTV DVR, TCD24 and similar architectures
Instructions are available online (in COLOR) at http://www.weaknees.com
A FEW WORDS OF CAUTION:
Upgrading a TiVo DVR presents a few physical hazards. As with most consumer electronics devices, components in the TiVo may still
carry a lethal charge, even after disconnecting from your power supply. Be aware of this while working inside your TiVo. Allow
sufficient time for discharging of components and avoid contact as much as possible with potential hazards. While we have done
everything we can to provide accurate, easy-to-follow instructions, we cannot be responsible for any damage done to your TiVo or to
yourself as a result of your upgrade. By opening your TiVo, you agree that neither weaKnees nor any of its members or affiliates is
responsible in any way for any harm done. Please be VERY careful when upgrading. NEVER open the TiVo while the unit is plugged in
and NEVER operate the TiVo if the lid is not securely fastened. PLEASE NOTE: Opening the TiVo voids the warranty.
IF YOU NEED TECHNICAL SUPPORT:
If you have purchased an upgrade kit that included one or two pre-configured hard drives: We are more than happy to answer any
questions that you might have regarding your installation. We answer email very frequently, and can often be reached that way at night or even
on weekends. We encourage you to try email first, but you are also free to call us any time if you have questions about your installation or these
instructions.
If you have purchased a TwinBreeze Bracket package (without a pre-configured drive): These kits are designed for people who already
know how to prepare a drive (or drives) for use in a TiVo. We unfortunately do not have the resources to teach our bracket customers how to
upgrade their TiVos.
Required Tool (not included): Phillips-head screwdriver.

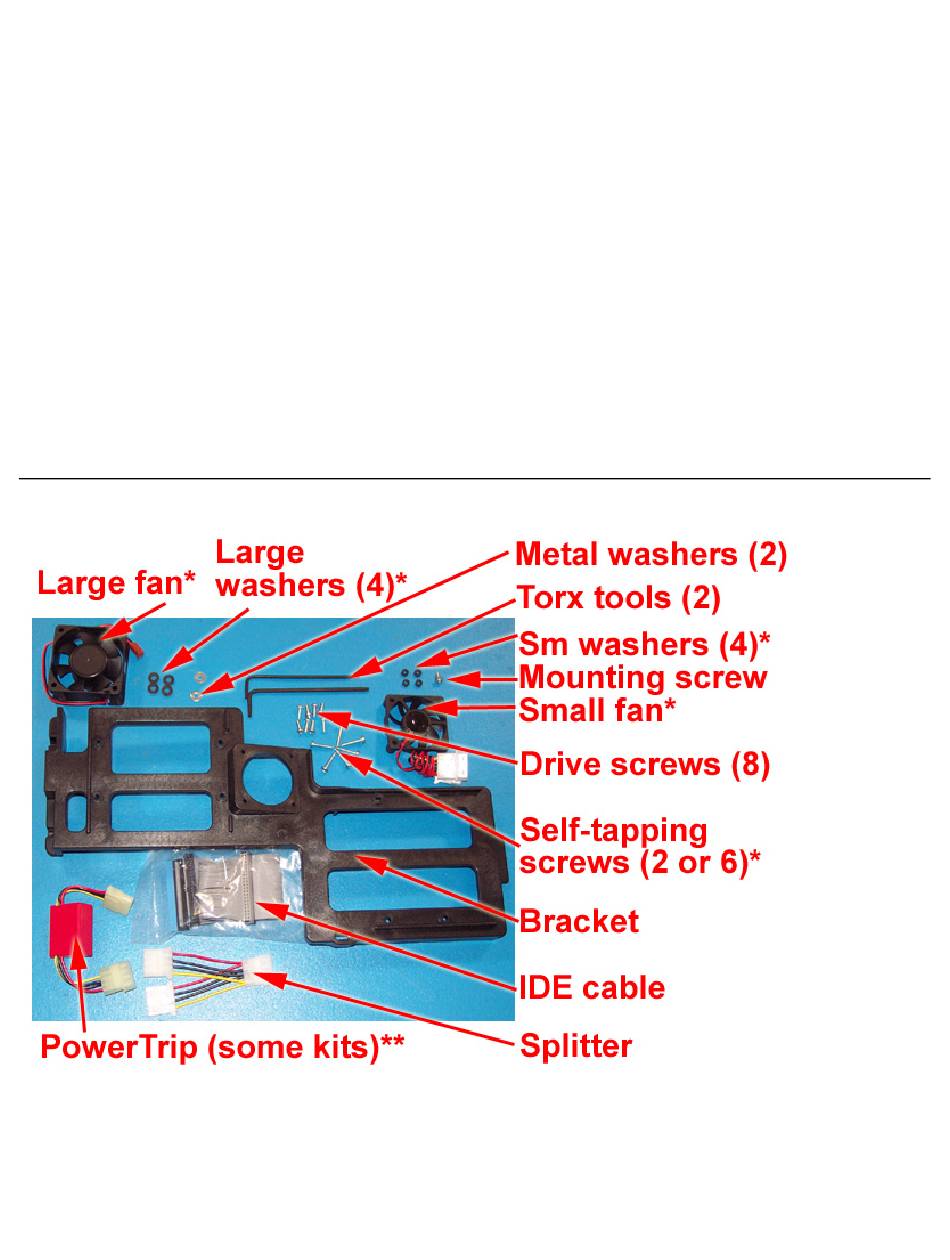

Kit includes all items shown below.
Figure 1
Not shown:
(1) Set of printed instructions
(1) or (2) Upgrade hard drive(s) (if applicable)
*Small fan, small washers & 4 self-tapping screws included in optional advanced cooling pak; large fan/large washers included in advanced
cooling pak for some models.
**PowerTrip included in kits for standalone (non-DIRECTV) TiVo DVRs.
1 of 7
