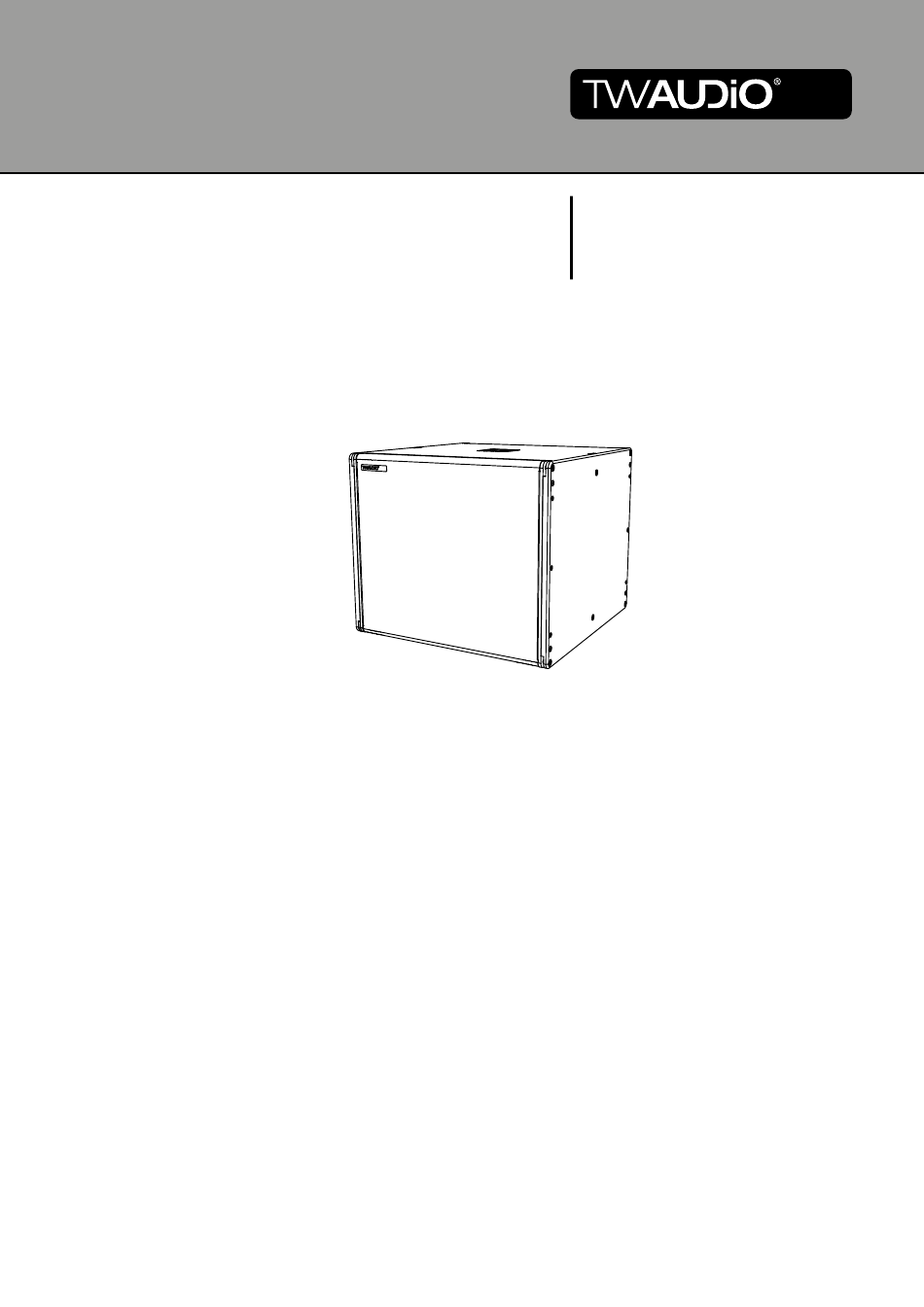

- Page 1 VERA S17i Operation manual...
- Page 2 Introduction Thank you for choosing a high-quality product “MADE IN GERMANY” from TW AUDiO. The VERA S17i is a compact, flyable install subwoofer in a symmetrically vented enclosure, equipped with one 18” long excursion driver. The specifically developed integrated rigging hardware allows a tightly screwed installation for perfect integration into VERA20i arrays with nearly invisible rigging parts, without the use of expensive locking pins and additional frames.
- Page 3 Operation manual VERA S17i This symbol in combination with the signal word “Note” identifies a potentially hazardous situation. Failure to comply with this safety instruction can lead to product damage. NOTE This symbol in combination with the signal word “Tip” identifies additional information or notes that will simplify working with TW AUDiO products on the basis of practical experience.
-
Page 4: Table Of Contents
Operation manual VERA S17i Content 1. Safety | Intended use ...................... 5 2. Overview ........................7 Components ......................7 3. Technical specifications ....................8 Data sheet ....................... 8 Connection diagram ....................8 4. Commissioning ....................... 9 Setup ........................9 Rigging ........................10 Connection options .................... -
Page 5: Safety | Intended Use
1. Safety | Intended use Please adhere to the following safety instructions to avoid risks when operating loudspeakers. The VERA S17i loudspeaker was developed for use in professional sound systems. The loudspeaker may only be used by trained and qualified personnel. - Page 6 Operation manual VERA S17i Ensure that the loudspeaker is not exposed to permanent thermal overloads. Thermal over- loads may cause a fire and result in serious personal injury and property damage. WARNING Note that TW AUDiO does not provide a warranty for damage that can be attributed to this type of overload and therefore cannot be held liable for any secondary damage.
-
Page 7: Overview
Operation manual VERA S17i 2. Overview Components Figure 2.1 - Overview Splay link (2 pieces) – enclosed separately Hexagon socket head cap screw M8x16-12.9 (9 pieces) – enclosed separately Lock washer VS-8-1.4301 (9 pieces) – enclosed separately Bracket (2 pieces) – enclosed separately... -
Page 8: Technical Specifications
Operation manual VERA S17i 3. Technical specifications Data sheet Drivers 1x 18“ LF Frequency response 37 - 110 Hz Power handling (program/Peak) 2400 / 4800 W Impedance 8 Ω Max. SPL / 1m 132 dB Dimensions (h x w x d) -
Page 9: Commissioning
Operation manual VERA S17i 4. Commissioning Setup The VERA S17i loudspeaker is designed for array operation. Make sure that all system structures are located on a firm, level surface and that the surface can bear the total weight! WARNING Make sure the speakers are securely fastened to prevent personal injury and property damage. -
Page 10: Rigging
Figure 4.2.1 - VERA S17i vertikal alignment An optional front grill for the rear of the twisted VERA S17i loudspeaker is available for a seam- less look when in cardioid setting. NOTE... - Page 11 Operation manual VERA S17i Only mount the VERA20i loudspeakers when all VERA S17i loudspeakers are mechanically connected to the VERA RF600i rigging frame through the front and the middle rigging tracks. Make sure that the load is never transferred from one rigging track to another rigging track WARNING through the speaker enclosure.
- Page 12 Operation manual VERA S17i Please note that the following system setup with VERA S17i loudspeakers is not permitted. WARNING Figure 4.2.3 - side view: improper use of the system setup of VERA S17i...
- Page 13 Operation manual VERA S17i Make sure never to fly multiple horizontally aligned VERA S17i loudspeakers under each other! WARNING Figure 4.2.4 - improper use of VERA S17i...
-
Page 14: Connection Options
TW AUDiO. NOTE Operation Operation of the VERA S17i speaker requires a DSP-Controller. For this purpose, only presets developed by TW AUDiO are recommended. The TW AUDiO system racks are ideally suited for this purpose. -
Page 15: Connecting The Cable
(1/2) are correct. Incorrect connection can lead to a significant change in the loudspeaker’s sound characteristics and may damage the driver. The pin connections of the VERA S17i loudspeaker can be found in section 3.2 (“Connection dia- gram”) on page 8. -
Page 16: Transport And Storage
Operation manual VERA S17i 5. Transport and Storage Due to the VERA S17i loudspeaker weighing over 20 kg [44.09 lbs.], two persons are required to handle and transport the unit. Ensure that the front grill of the loudspeaker is not damaged during transport and storage. -
Page 17: Disposal
Operation manual VERA S17i 7. Disposal It is prohibited to dispose of used electrical equipment with household refuse. All TW AUDiO GmbH products are so-called B2B-products. This means that they are sold by a commercial business to a commercial business. TW AUDiO products that bear the trash can symbol shown here may only be disposed of by TW AUDiO. - Page 18 Operation manual VERA S17i TW AUDiO GmbH Osterholzallee 140 71636 Ludwigsburg Germany Phone : + 49 (0) 71 41-48 89 89 0 Fax: + 49 (0) 71 41-48 89 89 99 E-Mail: info@twaudio.de WWW: www.twaudio.de...
