Instructions for use
REMKO Smart Com
Activation of Smart Com for Smart Control Touch regulation
to integrate the heat pump into a Smart Home system
SD
0239-2019-12 Edition 2, en_GB
Read the instructions prior to performing any task!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart Com and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REMKO Smart Com

Summary of Contents for REMKO Smart Com

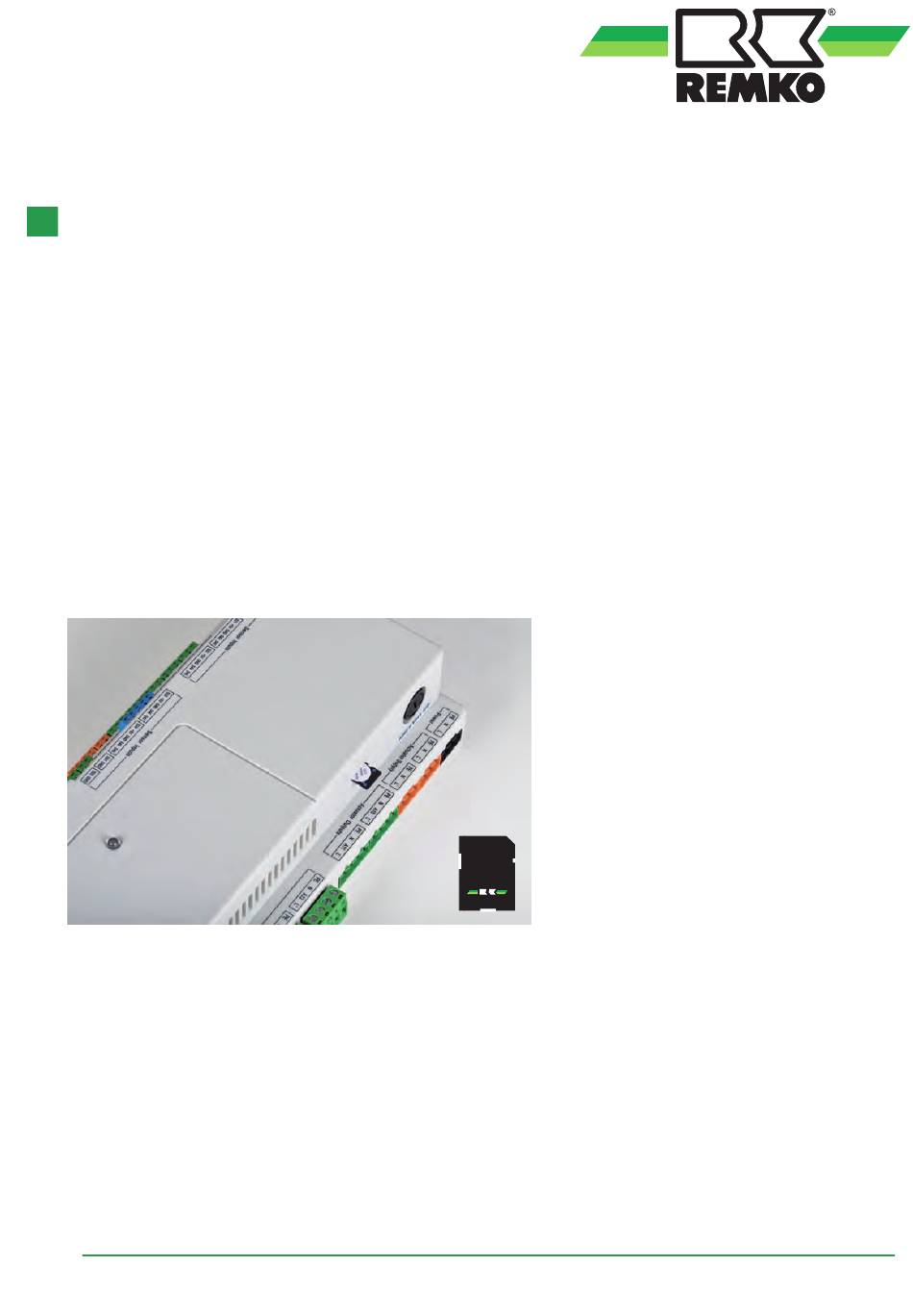

  • Page 1 Instructions for use REMKO Smart Com Activation of Smart Com for Smart Control Touch regulation to integrate the heat pump into a Smart Home system 0239-2019-12 Edition 2, en_GB Read the instructions prior to performing any task!
  • Page 2 Read these operating instructions carefully before commis- sioning / using this device! These instructions are an integral part of the system and must always be kept near or on the device. Subject to modifications; No liability accepted for errors or mis- prints! Translation of the original instructions for use...

  • Page 3: Table Of Contents

    1.12 Environmental protection and recycling..................6 System requirements..........................6 Electrical wiring............................. 7 Installing the Smart Com software....................12 Checking that the Smart Com is enabled..................13 Configuring the Smart Com function ....................13 Data points............................18 Application example........................... 26 Software update..........................28...

  • Page 4: Safety And Usage Instructions

    REMKO Smart Com Safety and usage instructions CAUTION! This combination of symbol and signal word 1.1 General safety notes warns of a potentially hazardous situation, which if not avoided may cause injury or mate- Carefully read the operating manual before com- rial and environmental damage.

  • Page 5: Safety Notes For Installation, Maintenance And Inspection

    1.9 Intended use cleaning work on the units. The setup, connection and operation of the The Smart Com function is to connect the Remko units and its components must be undertaken Smart Control controller to a factory fitted interface. in accordance with the usage and operating...

  • Page 6: Transport And Packaging

    Programming cannot be carried out by REMKO Service. WARNING! Prerequisite for using the Smart Com function: Plastic films and bags etc. are dangerous toys for children! Products with REMKO Smart Control con- troller as of software level 4.24. Check the...

  • Page 7: Electrical Wiring

    Electrical wiring The connection cables for the power supply and the connection to the KNX-BUS must be provided by the customer. The connection to KNX/EIB is established via a bus connection terminal. An IP interface requires additional operating voltage for operation. Also refer to the manufactur- er's documentation for this.
  • Page 8 REMKO Smart Com Fig. 2: HTS/WSP wiring diagram 1: Touch display 3: KNX-BUS 2: I/O module 4: 24V DC Fig. 3: WKF wiring diagram 1: Touch display 3: KNX-BUS 2: I/O module 4: 24V DC...
  • Page 9 2: Auxiliary voltage (24V DC) IP: 10.210.210.* (DHCP) 3: Bus voltage (29V throttled) C: Ethernet router (building network, optional) 4: KNX-BUS D: REMKO SMT controller (heat pump) 5: min. CAT 5 e IP: 10.210.210.2 (fixed) 6: Twisted Pair E: Touch display (heat pump)
  • Page 10 2: Auxiliary voltage (24V DC) IP: 10.210.210.* (DHCP) 3: Bus voltage (29V throttled) C: Ethernet router (building network, optional) 4: KNX-BUS D: REMKO SMT controller (heat pump) 5: min. CAT 5 e IP: 10.210.210.2 (fixed) 6: Twisted Pair E: Touch display (heat pump)
  • Page 11 REMKO Smart-Control Touch physical address and are also not permitted to The IP address for the REMKO SMT controller is be used by any other bus device. These phys- assigned statically via the controller configuration,...

  • Page 12: Installing The Smart Com Software

    The activation process can be repeated with the same SD card after a software update or re- commissioning. NOTICE! IMPORTANT! If you want to replace the complete Smart Con- trol controller, a new Smart Com SD card is required.

  • Page 13: Checking That The Smart Com Is Enabled

    Smart Com function Check the status of the activation as follows: The settings for the Smart Com function can be made in the Expert level. To do so, touch the REMKO logo in the upper right corner of the dis- User level play.
  • Page 14 KNX interface has address 1.1.1, the con- troller must receive address 1.1.2 or 1.1.3, for example. After you activate the Smart Com function, communication objects such as those shown in the following table are enabled to program the group address and communication flags. Communication flags:...
  • Page 15 After you activate programming mode, the following parameters are enabled for programming: Parameter Option / area Factory setting Customer setting (C-CRWT) On/off (switching) (CW) 5 / 0 / 1 0-15/0-7/0-255 (C-CRWT) Heating/cooling (switching) (CW) 5 / 0 / 2 0-15/0-7/0-255 (C-CRWT) Heating/cooling (status) (CRT) 5 / 0 / 3...
  • Page 16 REMKO Smart Com Parameter Option / area Factory setting Customer setting (C-CRWT) 4th mixed HC room temp. (CW) 5 / 0 / 22 0-15/0-7/0-255 (C-CRWT) Cooling circuit room temp. (CW) 5 / 0 / 23 0-15/0-7/0-255 (C-CRWT) Unmix. HC humidity...
  • Page 17 Parameter Option / area Factory setting Customer setting (C-CRWT) Unmix. HC operating mode (CRT) 5 / 0 / 44 0-15/0-7/0-255 (C-CRWT) 1st mixed HC operating mode (CRT) 5 / 0 / 45 0-15/0-7/0-255 (C-CRWT) 2nd mixed HC operating mode (CRT) 5 / 0 / 46 0-15/0-7/0-255 (C-CRWT) 3rd mixed HC operating mode...

  • Page 18: Data Points

    REMKO Smart Com Data points Data points Grp.- Communica- addr. Name Size tion flag Function description (0) Off: Switches room cli- mate mode to standby DPT 1.001 (DPT_Switch) On/off (1) On: Switches room cli- 5/0/1 1 bit mate mode to the operating...
  • Page 19 Grp.- Communica- addr. Name Size tion flag Function description DPT 9.001 The Smart Control con- (DPT_Value_Te Outside troller transfers the outside 5/0/6 2 byte temperature temperature to the KNX -273°C - 670 bus. 760°C The Smart Control con- troller converts the "hotter/ colder"...
  • Page 20 REMKO Smart Com Grp.- Communica- addr. Name Size tion flag Function description The Smart Control con- DPT 9.001 troller transfers the hot (DPT_Value_Te water temperature 1st mixed HC 5/0/14 2 byte (average of the inlet tem- actual temper. perature and the return -273°C - 670...
  • Page 21 Grp.- Communica- addr. Name Size tion flag Function description The room temperature is sent from the KNX bus to DPT 9.001 the Smart Control controller (DPT_Value_Te 3rd mixed HC and used for the circuit's 5/0/21 2 byte room temper. room temperature influ- -273°C - 670 ence.
  • Page 22 REMKO Smart Com Grp.- Communica- addr. Name Size tion flag Function description The room temperature is sent from the KNX bus to DPT 9.007 the Smart Control controller (DPT_Value_H 4th mixed HC and used for the circuit's 5/0/28 2 byte...
  • Page 23 Grp.- Communica- addr. Name Size tion flag Function description A room temperature target value is transferred from DPT 9.001 the KNX bus (e.g. from a (DPT_Value_Te 4th mixed HC KNX room temperature 5/0/36 room target 2 byte controller) to the Smart temper.
  • Page 24 REMKO Smart Com Grp.- Communica- addr. Name Size tion flag Function description DPT 20.102 (DPT_HVAC- Mode) The Smart Control con- troller transfers the oper- (0) Auto ating mode (HVACMode) to (1) Comfort Unmix. HC the KNX bus when 5/0/44 1 byte operating mode changed (e.g.
  • Page 25 Grp.- Communica- addr. Name Size tion flag Function description DPT 20.102 (DPT_HVAC- Mode) The Smart Control con- troller transfers the oper- (0) Auto ating mode (HVACMode) to (1) Comfort 4th mixed HC the KNX bus when 5/0/48 1 byte operating mode changed (e.g.

  • Page 26: Application Example

    REMKO Smart Com Application example The address in the relevant heating circuit (e.g. unmixed heating circuit) must be set to KNX to Connecting a room temperature controller activate the KNX room temperature controller's (RTC) room temperature influence. E.g.: Expert level Merlin 616919 ¯...
  • Page 27 Data points Grp.- Communica- addr. Name Size tion flags Function description DPT 9.001 The room temperature con- (DPT_Value_T troller transfers the actual Unmix. HC emp) 5/0/18 2 byte temperature to the Smart room temp. Control controller when -273°C... 670 changed. 760°C DPT 9.001 The Smart Control controller...

  • Page 28: Software Update

    Smart-Control controller/remote control has The procedure for loading new software onto the adopted the new data, the following image will controller/remote control of your REMKO heat appear on the display: pump is as follows: Disconnect the entire heat pump system (outside and indoor unit) from the mains supply before updating the software.
  • Page 29 When the new software is loaded, these functions confirm with “OK” can be activated according to the instructions of the relevant components, such as REMKO Smart- Com (from software version 4.24), Smart-Web or Setting the time Smart-Count.

  • Page 30: Index

    Programming ......14 Install the Smart Com ....12 Tunneling interface to the bus .
