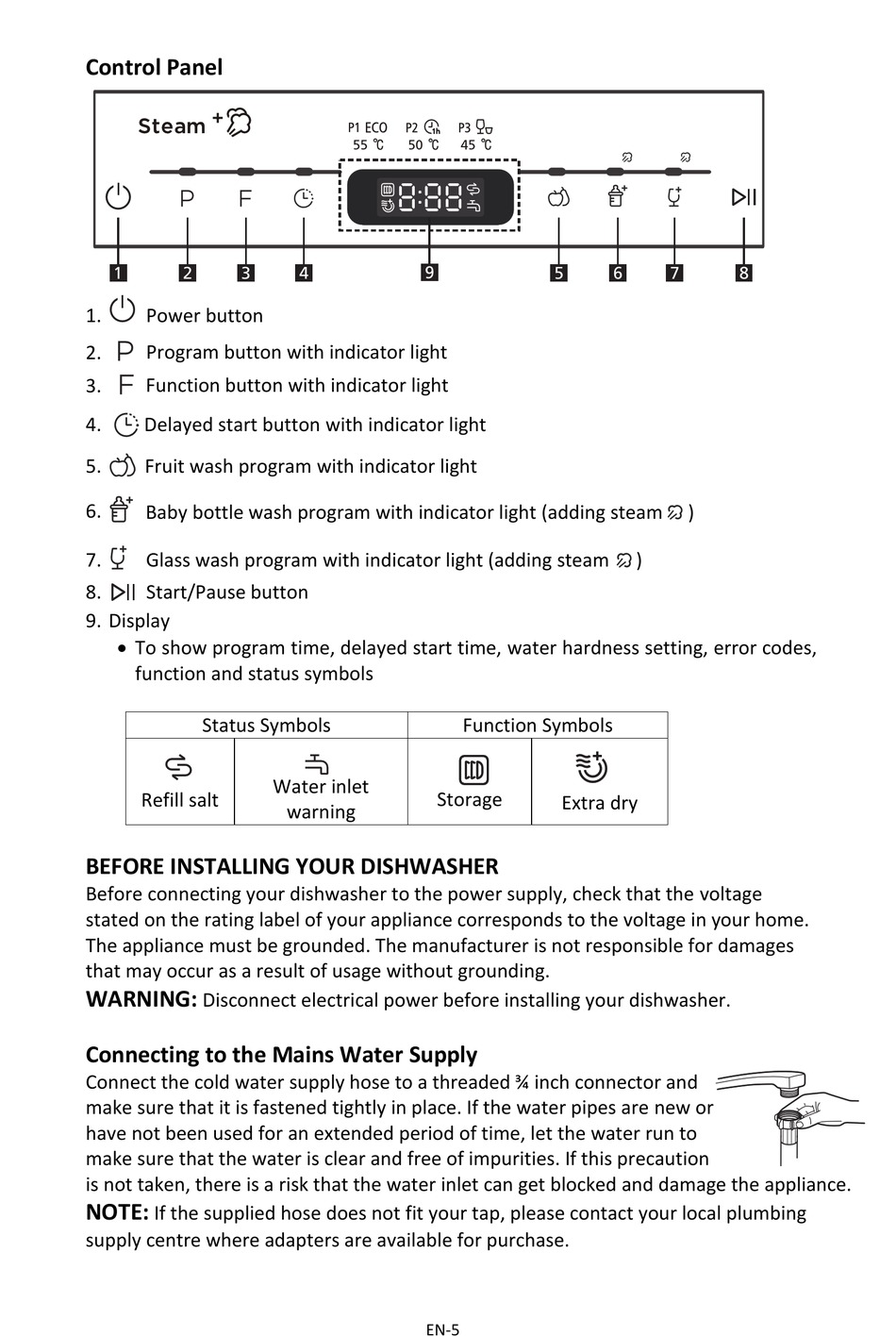

Control Panel

1 2 3
1. Power button
2. Program button with indicator light
3. Function button with indicator light
4. Delayed start button with indicator light
5. Fruit wash program with indicator light
6.
Baby bottle wash program with indicator light (adding steam
7. Glass wash program with indicator light (adding steam
8. Start/Pause button
9. Display
 To show program time, delayed start time, water hardness setting, error codes,
function and status symbols
Status Symbols
Refill salt

BEFORE INSTALLING YOUR DISHWASHER

Before connecting your dishwasher to the power supply, check that the voltage
stated on the rating label of your appliance corresponds to the voltage in your home.
The appliance must be grounded. The manufacturer is not responsible for damages
that may occur as a result of usage without grounding.
WARNING:
Disconnect electrical power before installing your dishwasher.

Connecting to the Mains Water Supply

Connect the cold water supply hose to a threaded ¾ inch connector and
make sure that it is fastened tightly in place. If the water pipes are new or
have not been used for an extended period of time, let the water run to
make sure that the water is clear and free of impurities. If this precaution
is not taken, there is a risk that the water inlet can get blocked and damage the appliance.
NOTE:
If the supplied hose does not fit your tap, please contact your local plumbing
supply centre where adapters are available for purchase.
55 50
4 9
Water inlet
Storage
warning
EN-5
45
5 6
Function Symbols
Extra dry
7 8
)
)
