INSTALLATION INSTRUCTIONS
LED TRACK HEAD
E-KCN SERIES
CAUTIONS

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1.
DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant
l'installation.
2.
This luminaire must be installed in accordance with the NEC
or your local electrical code. If you are not familiar with these
codes and requirements, consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code
électrique local. Si vous n'êtes pas familier avec ces codes et
ces exigences, veuillez contacter un électricien qualifié.
3.
Min 90°C supply conductors.
Les fils d'alimentation 90°C min.
4.
Wait until fixture has cooled down before installing or servicing
the fixture.
5.
Please read and understand all instructions thoroughly before
installing any part of the Track system.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE
Notes:
1.
All E-conolight Track sections are manufactured with a
Polarity Groove.
2.
All E-conolight Track fixtures are manufactured with
Indicator Arrows designed to point toward the Polarity
Groove once installed. See Figures 1-2.
3.
E-conolight Track fixtures are UL® Classified for use
with E-conolight E-K1 and E-K2 Series, Ruud T1 and
T2 Series, and Juno® (not affiliated with E-conolight or
Ruud) T and TU Series track systems only.
4.
All E-conolight Track fixtures are supplied with a Contact
Support to convert fixture from Single Circuit installation
to Two Circuit Installation. See Figure 3

DIMMING INFORMATION

For a list of approved dimmers visit www.e-conolight.com
FIXTURE INSTALLATION – SINGLE CIRCUIT
TRACK
1.
Insert Brass Contact on top of Track Adaptor into the Track
Channel. See Figures 1 and 3.
2.
Rotate the Track Adaptor 90° so that the Indicator Arrows
point toward the Polarity Groove once installed. See
Figure 2. Pull Adaptor Latch down as you rotate Track
Adaptor in order for Latch to clear track edge and allow it
to snap into place in the track.
3.
To remove or relocate track fixture location, pull Adaptor
Latch down, rotate the Track Adaptor 90° away from the
Polarity Groove and remove.
www.e-conolight.com
|
Document:
LPN00530X0001A0_A
Created By:
TMT
FIXTURE INSTALLATION – TWO CIRCUIT
1.
To install track fixture into lower circuit of two-circuit track,
follow directions for single circuit installation.
2.
To install track fixture into upper circuit of two-circuit track,
raise the Brass Contact labeled "P" by grasping Contact with
needle nose pliers and pulling up into position. See
Figure 3.
3.
Insert Contact Support by tipping and positioning it under the
"P" Contact. See Figure 3. Snap Contact Support in place.
NOTE: Once the contact support is in place, make sure the
"P" contact is fully seated in the support by using the needle
nose pliers to push the "P" contact into place.
4.
Refer to instructions 1-3 under "Fixture Installation on Single
Circuit Track" section.

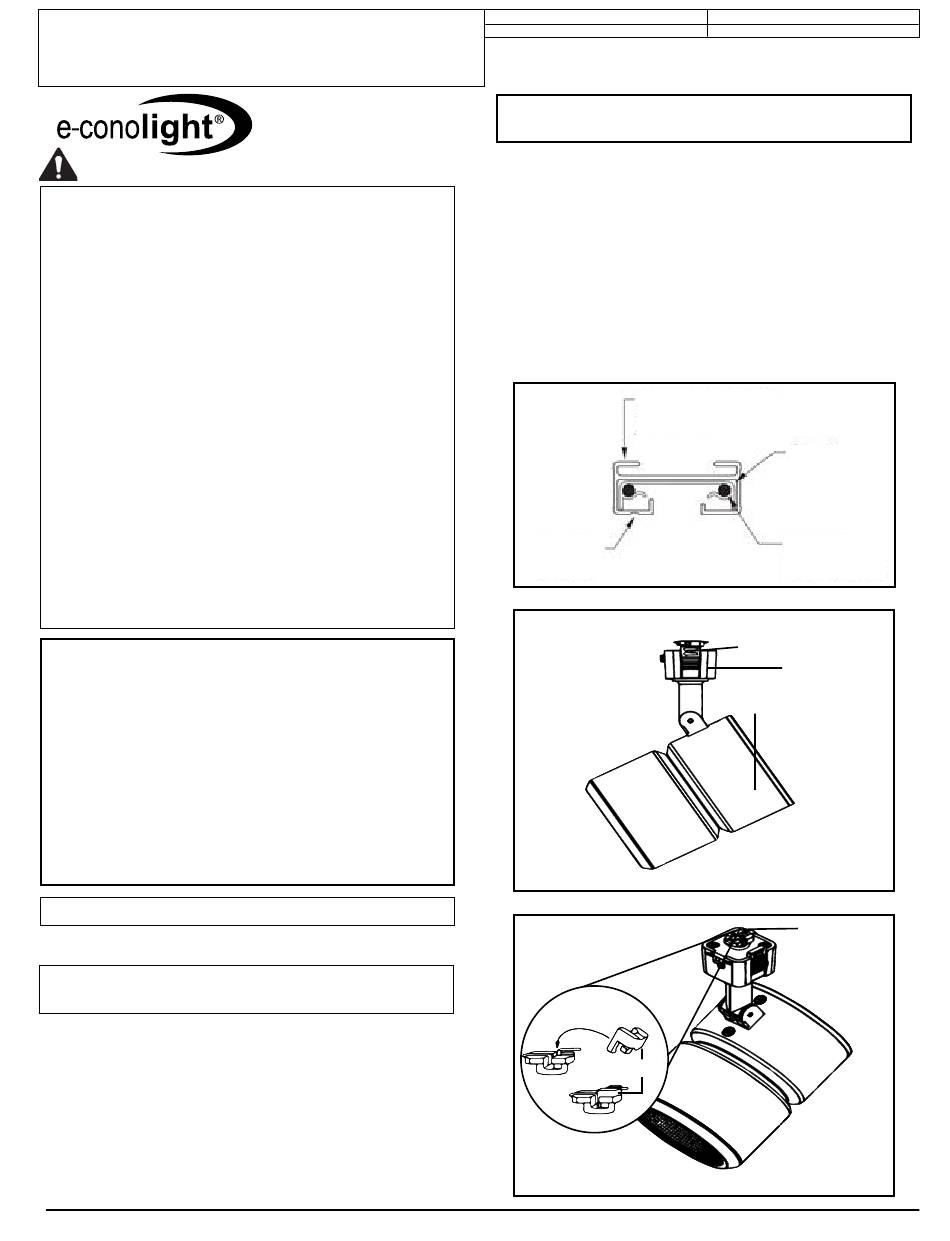

FIGURE 1
Polarity
Groove
FIGURE 2
FIGURE 3
888.243.9445
|
FAX: 262.504.5409
Date
ECO#
TRACK
Aluminum Track
Extrusion
Plastic
Insulator
Copper
Conductors
Indicator Arrows
Track Adapter
Luminaire
Movable Brass
Contact "P"
Contact
Support
2017-9-25
008328
