INSTALLATION INSTRUCTIONS FOR EMERGENCY LIGHTING FIXTURES

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions
should always be followed including the following:
1. To avoid the possibility of electric shock, turn off power supply before
installation or servicing.
2. Review the diagrams thoroughly before installation.
3. All electrical connections must be in accordance with the NEC and local codes.
A qualified electrician should do all the work.
4. Do not let power supply cords touch hot surfaces.
5. Do not mount near gas or electric heaters.
6. Equipment should be mounted in locations where it will not be readily subject to tampering by unauthorized personnel.
7. The use of accessory equipment not recommended by the original manufacturer may cause an unsafe condition.
8. Do not use this equipment for other than intended use.
9. All servicing should be performed by qualified personnel only.
SAVE THESE INSTRUCTIONS!
NOTE: Allow battery to charge for 24 hours before first use.

ELECTRICAL CONNECTIONS

1. Verify the power is off before installation.
2. Connect ground (Green) lead to suitable ground.
3. Connect fixture Neutral (White) lead to supply neutral (White) lead.
4. Determine supply voltage for fixture. Connect hot lead (Black for 120V or Red or Orange for 277V) to supply hot lead.
Cap unused fixture lead with wire nut.
1. Separate front cover from back plate with a flat blade screwdriver. Open from top slot first and then from side slots gently.
(See Figure1)
2. Remove knock out hole in the center of the back plate. Remove knock out slots on the back plate that correspond
to the size of the junction Box.
3. Feed AC supply leads through the center hole in the back plate. Then make the proper electrical connections. See electrical
connections section for proper instructions. Cap off unused hot lead.
4. Mount back plate to junction box with provided #8-32×0.875" screws. (See Figure 2 or Figure 4)
5. Attach battery connector and power connector.
6. Attach front cover to back plate. (Should snap right in)
7. Supply power and test the unit.

CEILING MOUNTING WITH SURFACE CONDUIT FEED

1. Separate front cover from back plate with a flat blade screwdriver. Open from top slot first and then from side slots gently.
(See Figure1)
2. Unscrew the pipe plug from top of back plate.
3. Secure back plate screw on the conduit. (See Figure 3 or Figure 5)
4. Make the proper supply lead connections. See Electrical connections section for proper instructions. Cap off unused hot lead.
5. Attach battery connector and power connector.
6. Attach front cover to back plate.
7. Supply power and test the unit.

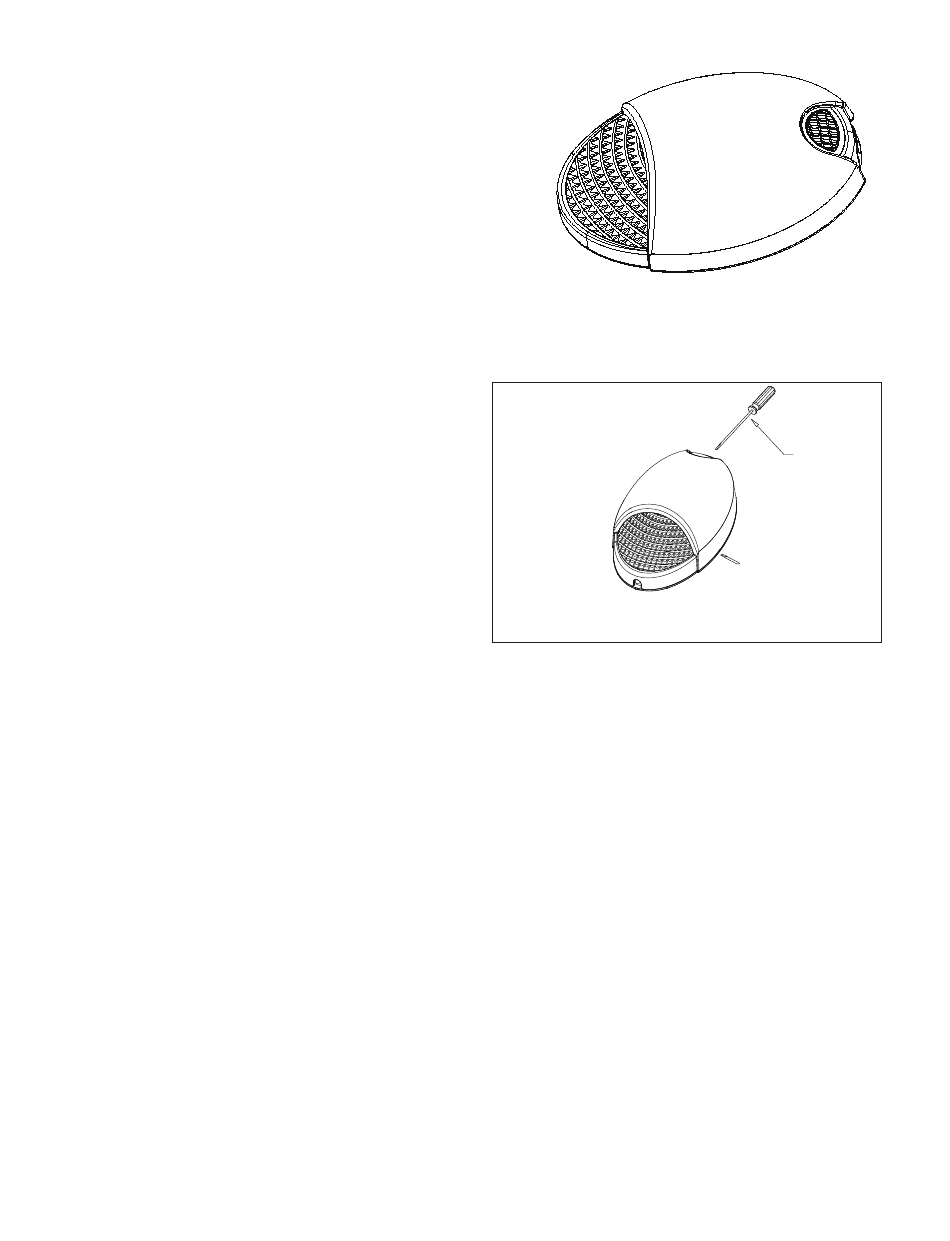

Figure 1
OPENING FRONT COVER
Open from top slot first then side slot
NOTICE-Use flat blade screwdriver to open. Insert screwdriver in the
slot (one on the top, two on the sides) and gently pry off the cover.
Page 1 of 4
Flat blade
screwdriver
Top slot
Side slot
