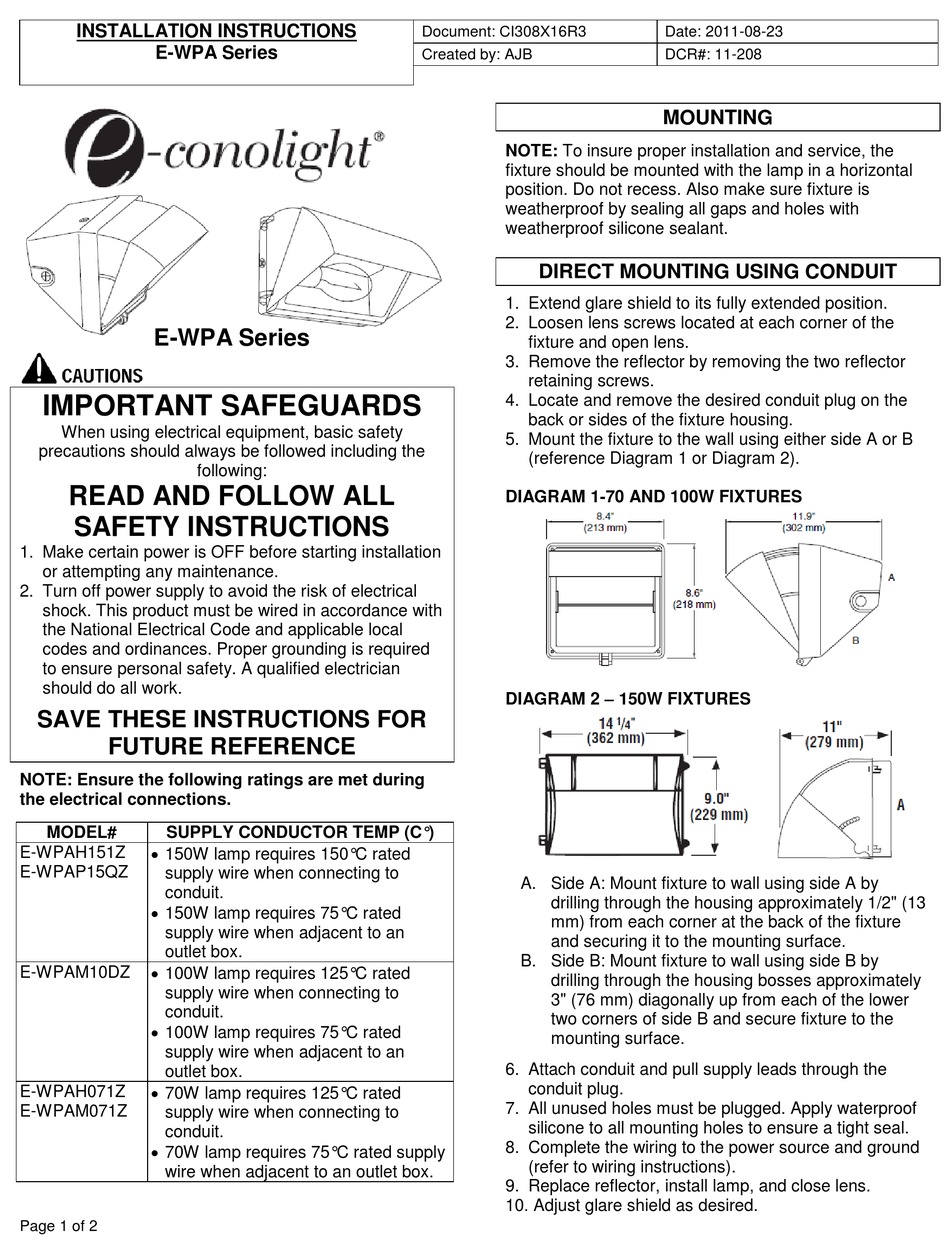

INSTALLATION INSTRUCTIONS
E-WPA Series
E-WPA Series
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety
precautions should always be followed including the
following:
READ AND FOLLOW ALL

SAFETY INSTRUCTIONS

1. Make certain power is OFF before starting installation
or attempting any maintenance.
2. Turn off power supply to avoid the risk of electrical
shock. This product must be wired in accordance with
the National Electrical Code and applicable local
codes and ordinances. Proper grounding is required
to ensure personal safety. A qualified electrician
should do all work.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE
NOTE: Ensure the following ratings are met during
the electrical connections.
MODEL#
SUPPLY CONDUCTOR TEMP (C°)
 150W lamp requires 150°C rated
E-WPAH151Z
E-WPAP15QZ
supply wire when connecting to
conduit.
 150W lamp requires 75°C rated
supply wire when adjacent to an
outlet box.
 100W lamp requires 125°C rated
E-WPAM10DZ
supply wire when connecting to
conduit.
 100W lamp requires 75°C rated
supply wire when adjacent to an
outlet box.
 70W lamp requires 125°C rated
E-WPAH071Z
E-WPAM071Z
supply wire when connecting to
conduit.
 70W lamp requires 75°C rated supply
wire when adjacent to an outlet box.
Page 1 of 2
Document: CI308X16R3
Created by: AJB
NOTE: To insure proper installation and service, the
fixture should be mounted with the lamp in a horizontal
position. Do not recess. Also make sure fixture is
weatherproof by sealing all gaps and holes with
weatherproof silicone sealant.
DIRECT MOUNTING USING CONDUIT
1. Extend glare shield to its fully extended position.
2. Loosen lens screws located at each corner of the
fixture and open lens.
3. Remove the reflector by removing the two reflector
retaining screws.
4. Locate and remove the desired conduit plug on the
back or sides of the fixture housing.
5. Mount the fixture to the wall using either side A or B
(reference Diagram 1 or Diagram 2).
DIAGRAM 1-70 AND 100W FIXTURES
DIAGRAM 2 – 150W FIXTURES
A. Side A: Mount fixture to wall using side A by
drilling through the housing approximately 1/2" (13
mm) from each corner at the back of the fixture
and securing it to the mounting surface.
B. Side B: Mount fixture to wall using side B by
drilling through the housing bosses approximately
3" (76 mm) diagonally up from each of the lower
two corners of side B and secure fixture to the
mounting surface.
6. Attach conduit and pull supply leads through the
conduit plug.
7. All unused holes must be plugged. Apply waterproof
silicone to all mounting holes to ensure a tight seal.
8. Complete the wiring to the power source and ground
(refer to wiring instructions).
9. Replace reflector, install lamp, and close lens.
10. Adjust glare shield as desired.
Date: 2011-08-23
DCR#: 11-208
MOUNTING
