Homeworks QS HQP6-MDU Product Specifications page 8

HomeWorks
®

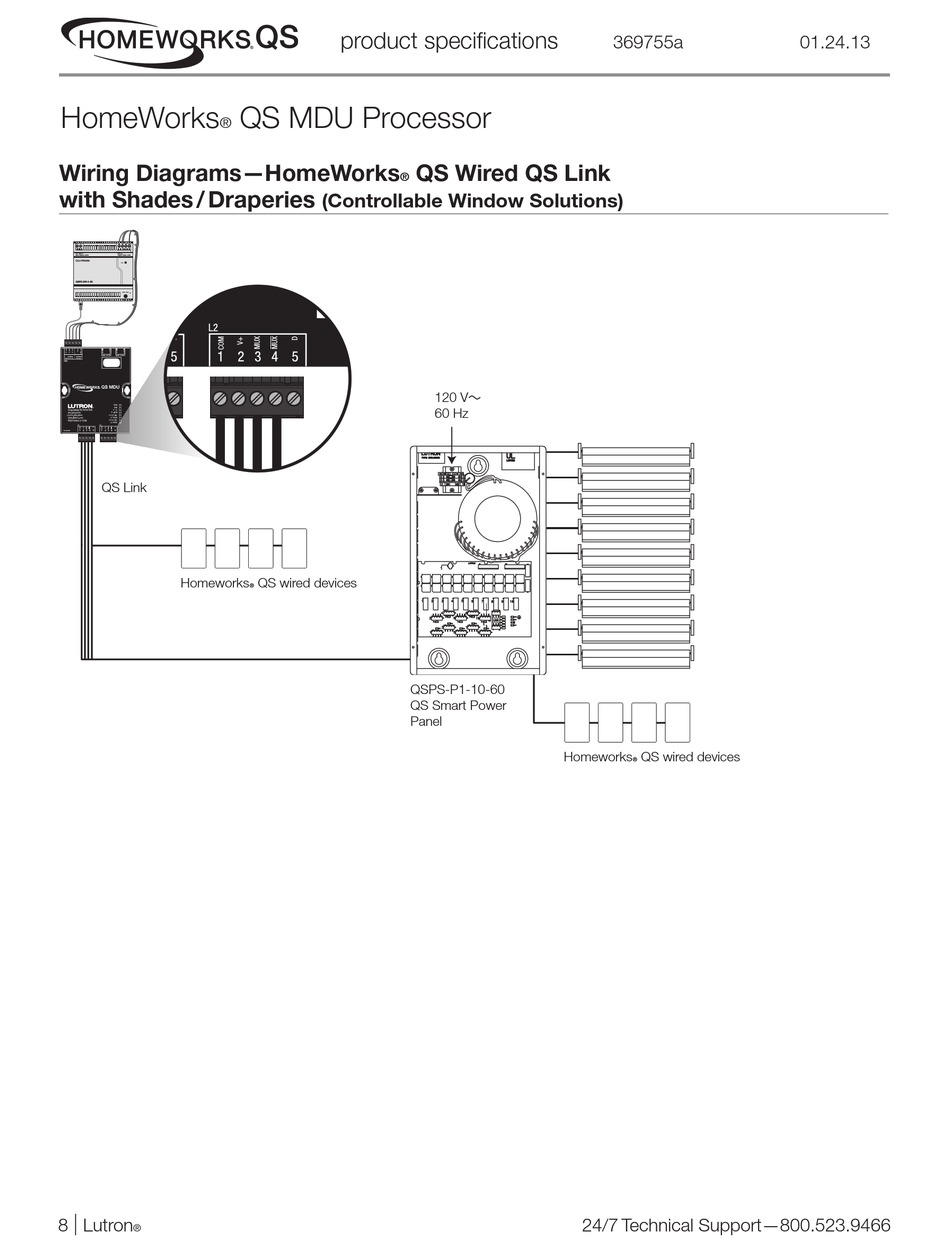

Wiring Diagrams—HomeWorks
with Shades / Draperies
L(+) N(-)
120 - 240 V 24 V
Input / Entrada / Entrée Output / Salida / Sortie
QSPS-DH-1-60
22.5 - 25 V
QS Link
HomeworksR QS wired devices
|
8 Lutron
®
product specifications
QS MDU Processor
QS Wired QS Link
®
(Controllable Window Solutions)
QSPS-P1-10-60
QS Smart Power
Panel
369755a
120 V~
60 Hz
HomeworksR QS wired devices
