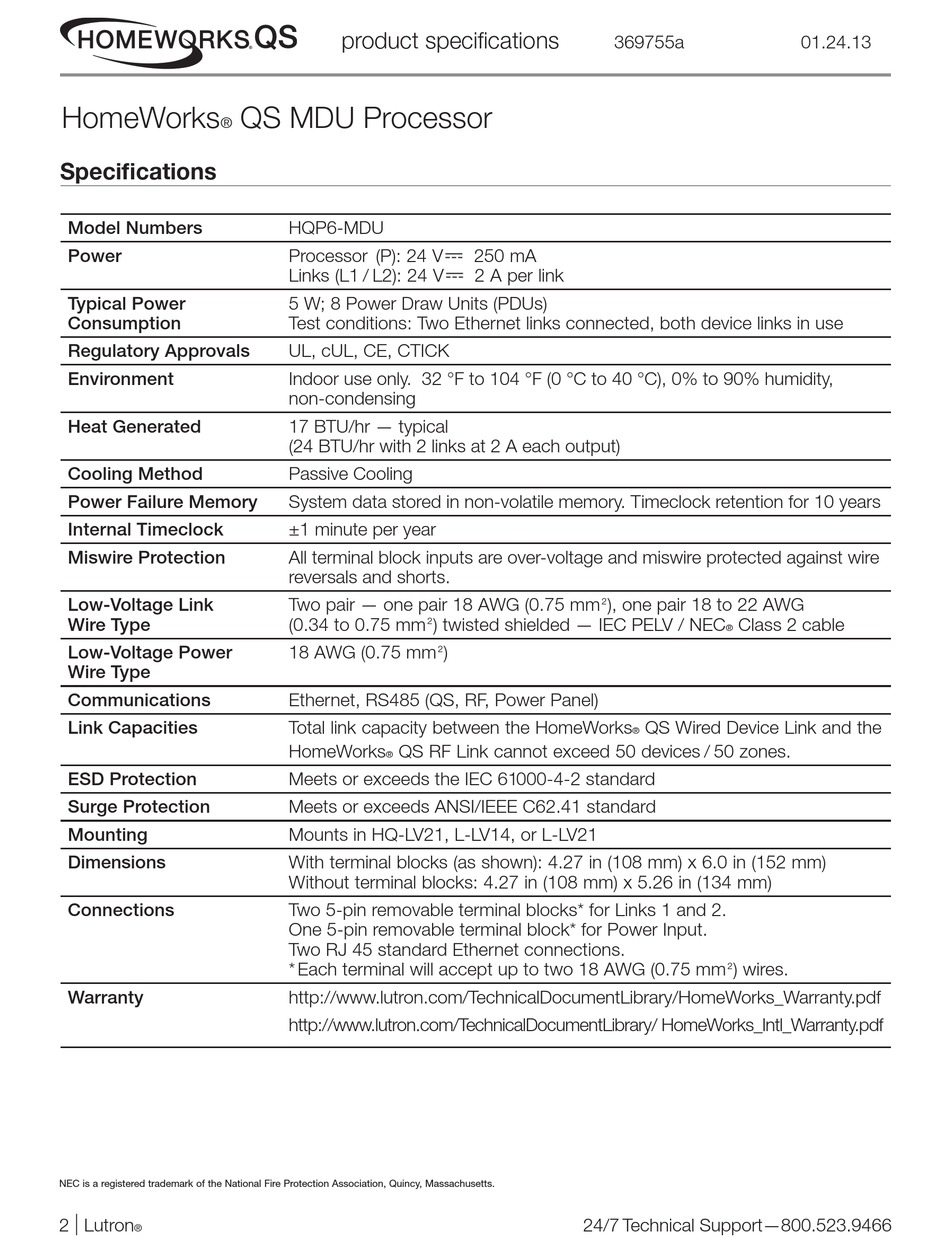

Specifications - Homeworks QS HQP6-MDU Product Specifications

HomeWorks
®

Specifications

Model Numbers
Power
Typical Power
Consumption
Regulatory Approvals
Environment
Heat Generated
Cooling Method
Power Failure Memory
Internal Timeclock
Miswire Protection
Low-Voltage Link
Wire Type
Low-Voltage Power
Wire Type
Communications
Link Capacities
ESD Protection
Surge Protection
Mounting
Dimensions
Connections
Warranty
NEC is a registered trademark of the National Fire Protection Association, Quincy, Massachusetts.
|
2 Lutron
®
product specifications
QS MDU Processor
HQP6-MDU
Processor (P): 24 V- 250 mA
Links (L1 / L2): 24 V- 2 A per link
5 W; 8 Power Draw Units (PDUs)
Test conditions: Two Ethernet links connected, both device links in use
UL, cUL, CE, CTICK
Indoor use only. 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity,
non-condensing
17 BTU/hr — typical
(24 BTU/hr with 2 links at 2 A each output)
Passive Cooling
System data stored in non-volatile memory. Timeclock retention for 10 years
±1 minute per year
All terminal block inputs are over-voltage and miswire protected against wire
reversals and shorts.
Two pair — one pair 18 AWG (0.75 mm
(0.34 to 0.75 mm
18 AWG (0.75 mm
Ethernet, RS485 (QS, RF, Power Panel)
Total link capacity between the HomeWorks
HomeWorks QS RF Link cannot exceed 50 devices / 50 zones.
®
Meets or exceeds the IEC 61000-4-2 standard
Meets or exceeds ANSI/IEEE C62.41 standard
Mounts in HQ-LV21, L-LV14, or L-LV21
With terminal blocks (as shown): 4.27 in (108 mm) x 6.0 in (152 mm)
Without terminal blocks: 4.27 in (108 mm) x 5.26 in (134 mm)
Two 5-pin removable terminal blocks* for Links 1 and 2.
One 5-pin removable terminal block* for Power Input.
Two RJ 45 standard Ethernet connections.
* Each terminal will accept up to two 18 AWG (0.75 mm
http://www.lutron.com/TechnicalDocumentLibrary/HomeWorks_Warranty.pdf
http://www.lutron.com/TechnicalDocumentLibrary/ HomeWorks_Intl_Warranty.pdf
2
) twisted shielded — IEC PELV / NEC
2
)
2
24/7 Technical Support—800.523.9466
369755a
), one pair 18 to 22 AWG
Class 2 cable
®
QS Wired Device Link and the
®
) wires.
2
01.24.13
