D45 System
D45 to 2 WIRE interface
Description
D45 System switch over interface through which we can install (inside the apartment)
the BTicino 2 WIRE door entry system. Interface allow to integrate and combine 2 WIRE
and home automation systems in order to create 2 wire technology risers and install the
BTicino enhanced colour video handsets. DIN rail installation.
Technical data
Power supply:
30 Vdc
Stand by absorption:
≤ 1 mA @ 30 V
Max. operating absorption: ≤ 20 mA @30 V
Operating temperature:
(-10)-(+40)°C

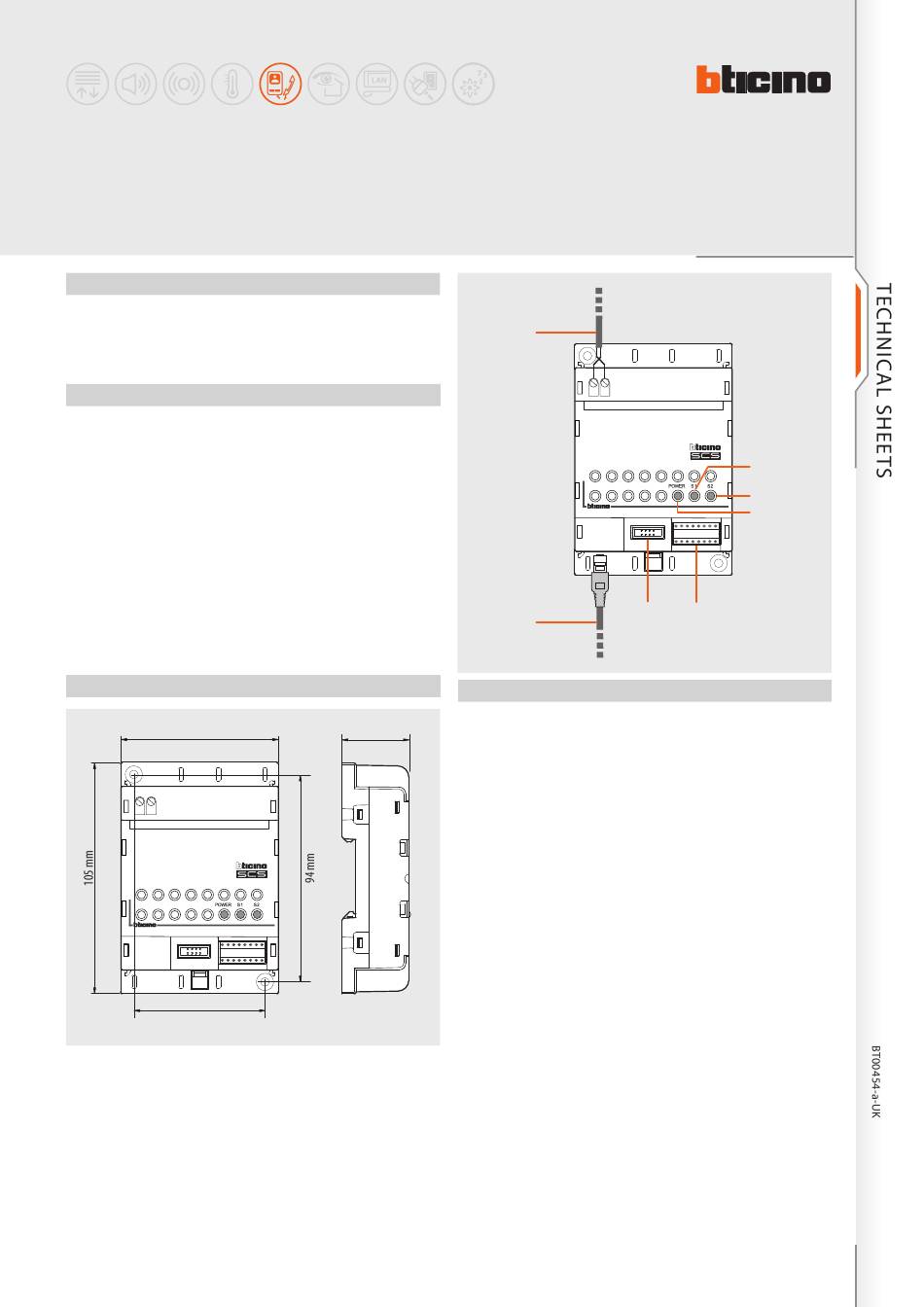

Dimensional data
72 mm
INT
346858
EXT
59,5 mm
Front view
1
7
Legend
INT connection, is the device external communication port. Connect to BTicino 2
1.
WIRE system plant (inside the apartment)
31 mm
S1 internal status LED indicator. LED ON = internal end engaged
2.
S2 external status LED indicator. LED ON = external end engaged
3.
Power supply status LED indicator. Red LED ON = power supply ON
4.
Phisical configurators socket
5.
Serial interface connector
6.
RJ45 connector for D45 System connection
7.
NOTE : during communication,both S1 and S2 LEDs will flash.
INT
346858
2
3
4
EXT
6
5
346858
INT
346858
EXT
1
