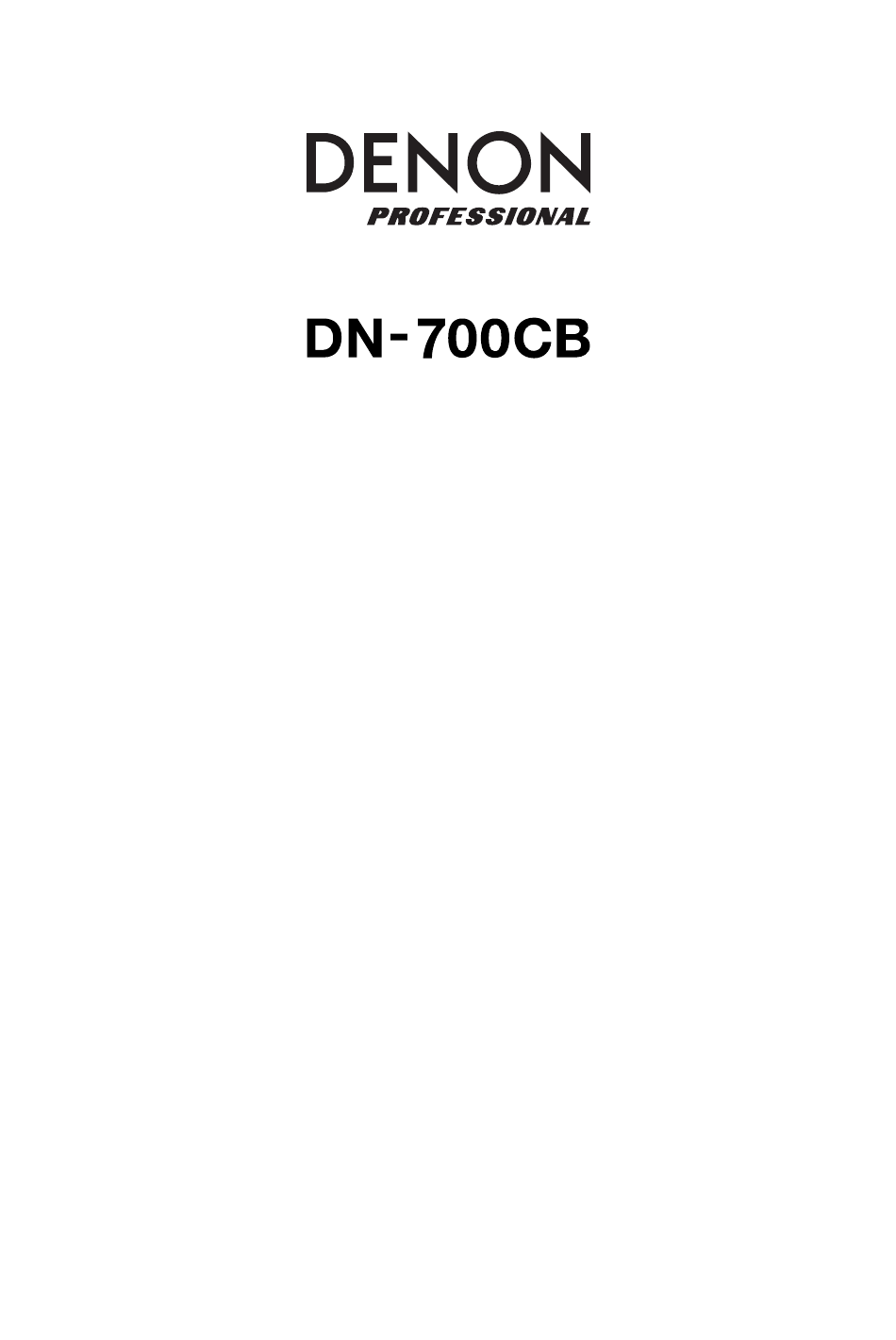

- Page 1 Serial Command Protocol Guide English...
-
Page 2: Table Of Contents
Table of Contents Introduction ..........................3 Support ..........................3 General Overview ........................3 Connecting the Host to DN-700CB ..................3 Communication Protocol ......................4 Types of Serial Communication .................... 4 Structure of the Codes ......................5 Rules on Transmitting Command Codes ................5 Control Command Codes ...................... -
Page 3: Introduction
For serial remote control, you must first connect the host to your DN-700CB. Use an RS-232C Straight Cable (9-Pin D-Sub Male) to connect the RS-232C input on the rear panel of your DN-700CB to the corresponding input on the host. -
Page 4: Communication Protocol
Communication Protocol Types of Serial Communication Three types of serial communication can be transmitted between the host and DN-700CB: 1. Control commands sent to DN-700CB from the host DN-700CB Host You can use control commands to make DN- Control 700CB perform a desired function (such as playing Command or skipping a track). -
Page 5: Structure Of The Codes
The required start character/ID and end character are the same in all codes, whereas the command portion varies with each code. For example, the full control command code that the host would use to power on DN-700CB would be @0PW00\r:... -
Page 6: Control Command Codes
Control Command Codes Control Commands (Host → DN-700CB) CATEGORY CONTENTS CODE DESCRIPTION Power On @0PW00 Powers on DN-700CB Power Power Off @0PW01 Powers off DN-700CB Play @02353 Plays the current track Pause @02348 Pauses the current track Track Playback Stop... -
Page 7: Status Request Command Codes/Status Information Codes
Status Request Command Codes/Status Information Codes Status Request Status Information Commands (DN-700CB → Host) (Host → DN-700CB) DESCRIPTION REQUEST CODE ANSWER CODE The power is on Power Status @0?PW No answer The power is off No Disc @0CDNC There is no disc in the CD slot... -
Page 8: Appendix
5 V / 500 mA power supply can be used for RTS. Trademarks & Licenses Denon is a trademark of D&M Holdings Inc., registered in the U.S. and other countries. Denon Professional products are produced by inMusic Brands, Inc., Cumberland, RI 02864, USA. - Page 9 denonpro.com Manual Version 1.2...
