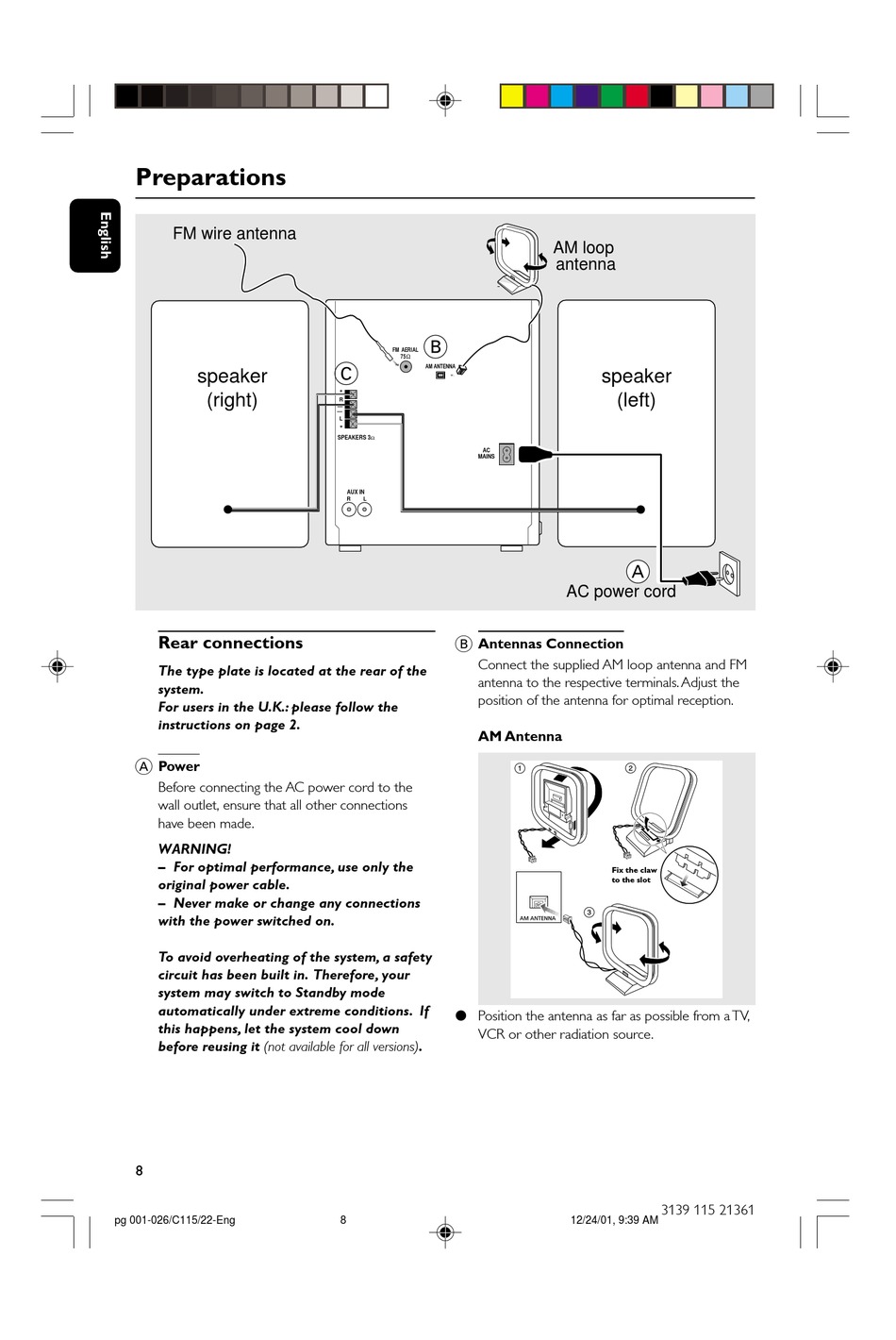

Preparations

FM wire antenna
speaker
(right)

Rear connections

The type plate is located at the rear of the
system.
For users in the U.K.: please follow the
instructions on page 2.
A

Power

Before connecting the AC power cord to the
wall outlet, ensure that all other connections
have been made.
WARNING!
– For optimal performance, use only the
original power cable.
– Never make or change any connections
with the power switched on.
To avoid overheating of the system, a safety
circuit has been built in. Therefore, your
system may switch to Standby mode
automatically under extreme conditions. If
this happens, let the system cool down
before reusing it (not available for all versions).
8
pg 001-026/C115/22-Eng
B
FM AERIAL
75
C
AM ANTENNA
+
R
—
—
L
+
SPEAKERS 3
AC
MAINS
AUX IN
R L
B

Antennas Connection

Connect the supplied AM loop antenna and FM
antenna to the respective terminals. Adjust the
position of the antenna for optimal reception.
AM Antenna
Position the antenna as far as possible from a TV,
VCR or other radiation source.
8
AM loop
antenna
speaker
(left)
A
AC power cord
Fix the claw
to the slot
3139 115 21361
