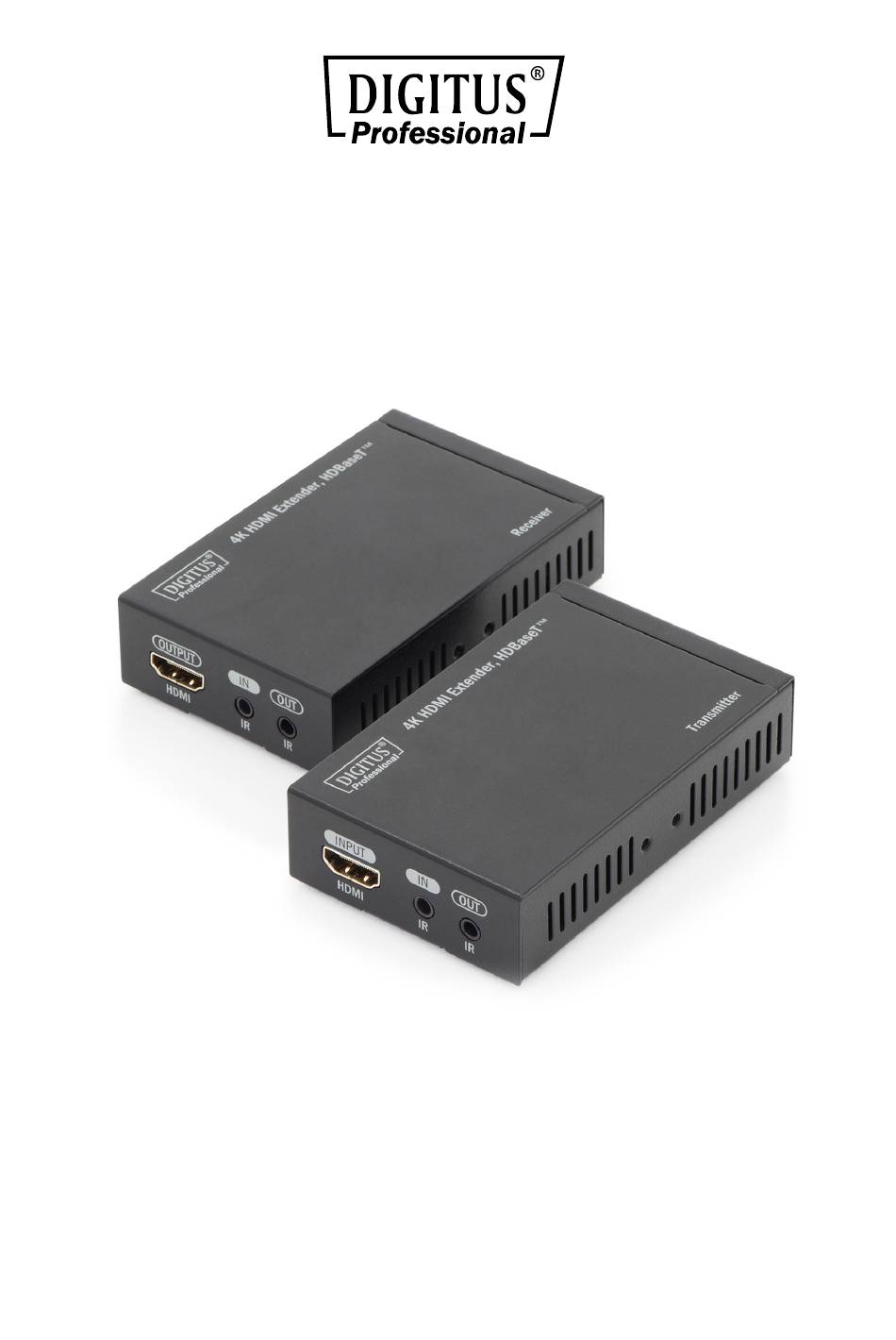

- Page 1 4K HDMI Extender, HDBaseT™ Manual DS-55500...
-
Page 2: Package Contents
Important safety notice Please read below safety instructions carefully before installation and operation: Please pay attention to all the warnings and hints on this device. Do not expose this unit to rain, moisture and liquid. Do not put any stuff into the device. ... -
Page 3: Installation Requirements
4. Installation Requirements HDMI source devices: With HDMI OUTPUT interface, DVD, PS3, STB, PC etc. Display devices: With HDMI INPUT port, SDTV, HDTV, projector Network cables: UTP/STP Cat5e/Cat6/Cat6A/Cat7 network cables are following the standard of IEEE-568B. 5. Panel description 5.1. -
Page 4: Installation Procedures
5.3. LED indicators working status ① It is lighting on with power on. ② It is lighting on when TX and RX are well connected. ③ It is lighting on when RX's HDMI OUT connects with HDMI display device and has HDMI signal output. - Page 5 6.3. Bi-directional IR pass back It supports bi-directional IR pass back. User cans control DVD at TX end and control TV at RX end. If control at RX end, please connect IR blaster extension cable with IR OUT of TX and connect IR receiver extension cable with IR IN of RX.
- Page 6 Specification Items Specifications 70m HDBaseT™ extender HDMI signal 4Kx2K,compatible with HDCP, support CEC and 24bits deep color Resolution Supported 480i/480P/576i/576P/720P/1080i/1080P/3D/4Kx2K Audio LPCM, DTS Digital, Dolby Digital Network cable CAT5E/CAT6/CAT6A/CAT7 UP to 1080P@60Hz 36bpp 1080p@60Hz 48bpp, 1080p@60Hz CAT5E/CAT6 3D, 4Kx2K@30Hz/60Hz video formats Transmission length UP to 1080P@60Hz 36bpp...
