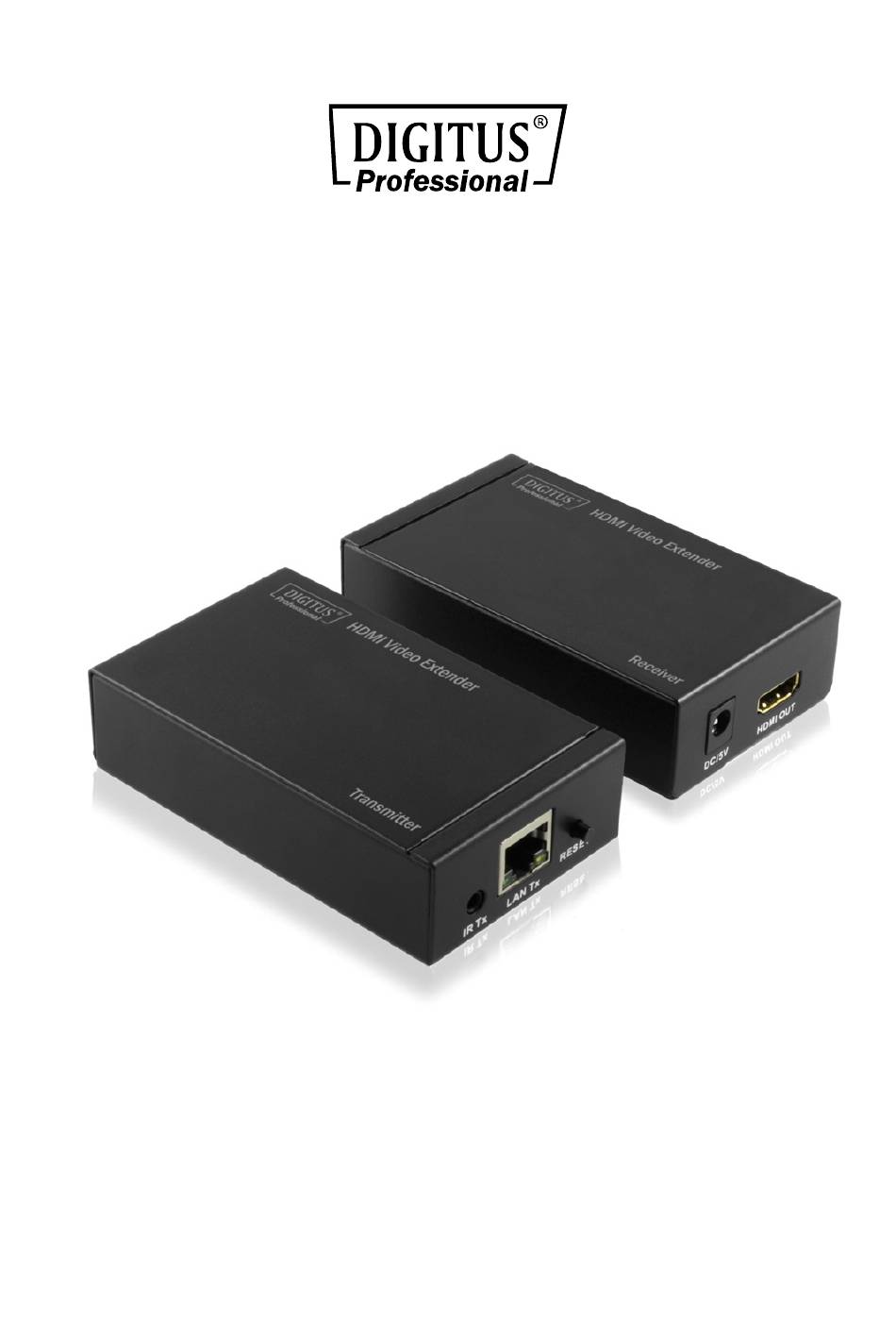

  • Page 1 HDMI VIDEO EXTENDER Manual DS-55120 • DS-55121 (Receiver only)
  • Page 2 (point-to-point connection). In conjunction with a simple network switch and the additional receiver units (DS-55121) you can easily show your video content up to 253 locations via the existing network up to 100 meters (over IP connection). Further the integrated bi-directional IR interfaces enables you to control the input source with a remote control.

  • Page 3: Specifications

    3.0 SPECIFICATIONS Signal input HDMI Signal Input Video Signal 0.5-1.0volts/p-p Output video HDMI Signal CAT-6 cable 120m for 1080p Vertical Frequency Range 50/60Hz Video Amplifier bandwidth Max up to 1.65Gbps/165MHz Interlaced (50&60Hz) 480i,576i,1080i Progressive(50&60Hz) 480p,576p,720p,1080p Operating Temperature 0℃ to +50℃ Operating Humidity 10% to 85 % RH (no condensation) Storage Temperature...

  • Page 4: Package Contents

     2 x Power Supply 5 V / 2 A  2 x Mounting brackets with screws  IR transmitter and receiver  Manual DS-55121 (receiver only)  HDMI Extender, receiver unit  1 x Power Supply 5 V / 2 A  2 x Mounting brackets with screws ...

  • Page 5: Connection And Operation

    6.0 Connection and Operation Multiple Receiver (DS-55121) configuration: In order to connect multiple Receiver units. The Receiver IP address should be changed first. 1. Connect Recevier unit to a computer with a network cable. 2. Set computer IP to the the same subnet 192.168.168.xxx with Receiver unit.
  • Page 6 Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the Directive 2011/65/EU for RoHS compliance. The complete declaration of conformity can be requested by post under the below mentioned manufacturer address. Note: If wrongly installed or improperly used in the living area, the device can cause interference in radios and other electronic devices.
