comprimento: 1810mm
altura: 1620mm
PROFUNDIDADE: 330mm
LENGTH: 1810mm
height: 1620mm
DEPTH: 330mm
LONGITUD: 1810mm
altura: 1620mm
PROFUNDIDAD: 330mm
PAPEL RECICLADO
RECYCLED PAPER
PAPEL RECICLADO
Revisão/REVIEW/COMENTARIO
00 - 23/03/2017
HOME SUSPENSO EPIC
ferramentas
Recomendamos o uso de chave de fenda
Philips, martelo e parafusadeira ao montar
o móvel
We recommend using screwdriver Philips,
hammer and screwdriver to assembre
mobile
Recomendamos el uso de un destornillador
Philips, martillo y un destonillador para
montar o móvil
Fone/Fax: (43) 3274 - 9900 - E-Mail: assistencia@hbmoveis.com.br
ARAPONGAS - PARANÁ - BRASIL
www.hbmoveis.com.br
01

Advertisement

loading
Need help?

Need help?

Do you have a question about the Home Suspenso Epic and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HB Moveis Home Suspenso Epic

Summary of Contents for HB Moveis Home Suspenso Epic

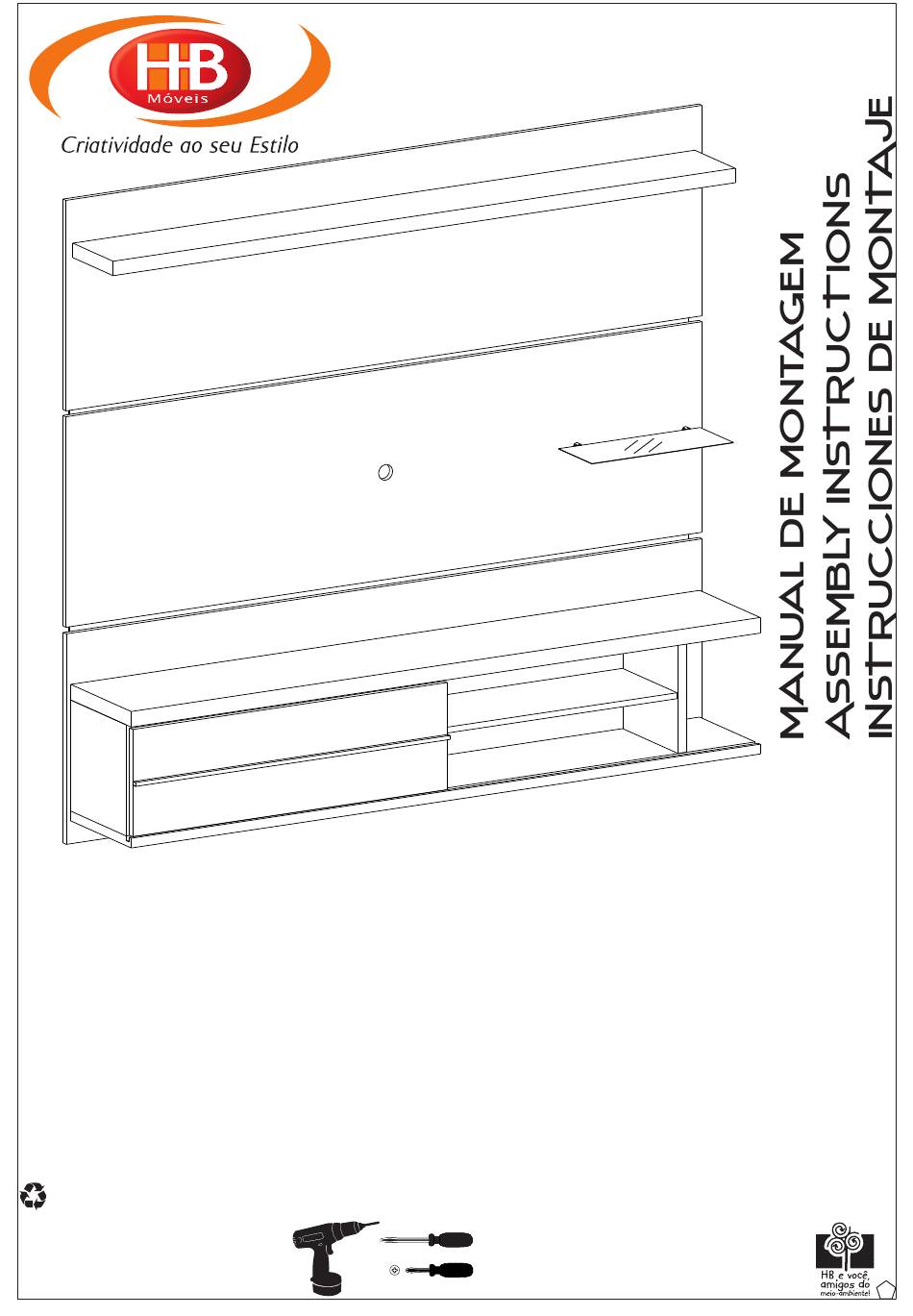

  • Page 1 HOME SUSPENSO EPIC ferramentas comprimento: 1810mm Recomendamos o uso de chave de fenda altura: 1620mm PROFUNDIDADE: 330mm Philips, martelo e parafusadeira ao montar o móvel LENGTH: 1810mm We recommend using screwdriver Philips, height: 1620mm hammer and screwdriver to assembre DEPTH: 330mm...
  • Page 2 IMAGEM IMAGE HARDWARE/ACESSORIES IMAGEN FERRAGENS/ACESSÓRIOS HARDWARE/ACESSORIOS Cavilha 80 X 30 Pin 80 X 30 Perno 80 X 30 Girofix Pino Mini Fix Screw Minifix Tornillo Girofix Tambor Mini Fix Round Nut Tambor Minifix Girofix Tampa Minifix Cover Minifix Cubierta Parafuso 6,0 X 75mm Screw 6,0 X 75mm Tornillo 6,0 X 75mm Parafuso Flangeado 40x14mm...
  • Page 3 1° PASSO/STEP/PASO 14x A 16x B 16x C 12x D 02x T 2° PASSO/STEP/PASO 04x M Obs: Obrigatório o uso de cola. Obs: Required the use of glue. Obs: Requiere el uso de pegamento 04 X M 04 X M 09-10 OBS: Fazer esse processo para 09-10...
  • Page 4 3° PASSO/STEP/PASO Obs: Parafuso 50x60 passa através da peça Nº 15,09 e 06. Obs: 50x60 bolt passes through the part No. 15, 09 and 06. Obs: 50x60 tornillo pase a través de la pieza Nº 15,09 y 06. 02x A 04x N 06x Q 4°...
  • Page 5 6° PASSO/STEP/PASO Passagem de cabos Cable Routing Tendido de Cables 17x E 17x G Distancia Sugerida Suggested distance Distancia Sugerida Piso/Floor/Piso Piso/Floor/Piso Piso/Floor/Piso 7° PASSO/STEP/PASO...
  • Page 6 8° PASSO/STEP/PASO 02x L 02x K 06x F 03x J 01x S 9° PASSO/STEP/PASO 02x I 02x H 02x P 02x U...
