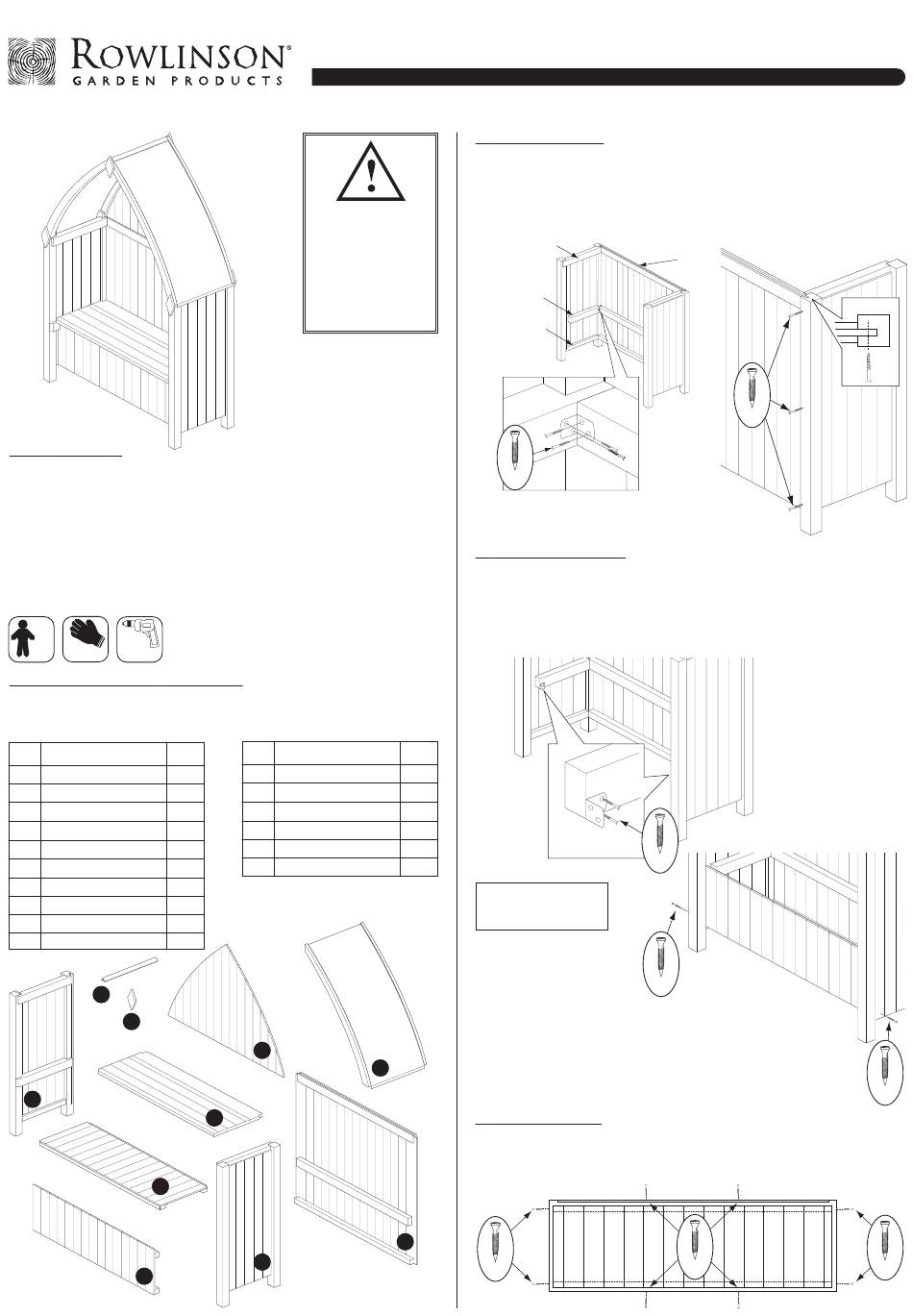

Rowlinson Winchester Arbour Assembly Instructions

Before assembly

•
We recommend that time is taken to read the instructions before
starting assembly, then follow the easy step by step guide.
The instruction sheet is only a guide to the assembly.
Certain items may not be shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no less than 2 people.
•
Some of the components may have sharp edges wear protective work
gloves while handling components.
•
Never attempt to erect the assembly in high winds.
•
Drill all components where indicated.
x 2
Gloves Drill
Recommended tools for assembly
•
Cross head screw driver
•
Drill with 4mm diameter drill bit
•
Step ladder
No. Components Qty.
1 Floor
2 Seat front
3 Left-hand upright
4 Right-hand upright
5 Seat
6 Seat back
7 Triangular panel
8 Roof sections
9 Coverstrip
10 Finials
9
10
3
1
2
Winchester Arbour
Assembly Instructions
Caution
Some of the building
components may have
sharp edges.
protective work gloves
while handling these
components.
No. Fixing Kit
11 Screws 70mm
1
1 12 Screws 50mm
1 13 Screws 40mm
1 14 Screws 30mm
15 L-brackets
1
16 Flat brackets
1
1
2
1
6
7
5
4

1. Back to uprights

Fit the back panel into the slots of the left-hand upright. Make sure the seat bearer
is on the inside and that the rebated rail is at the top. Secure together by using
3 x 40mm screws, screw through the leg of the upright, ensuring the screw goes
through the rebate in the leg and back panel, secure the seat bearers of the
2 panels with L-brackets and 4 x 40mm screws per bracket. Repeat for the right-
hand upright.
Upright top frame
Wear
Seat bearer
Bottom frame
40mm

2. Seat front and floor

Fit L-brackets flush to the front end of the seat bearer on each upright as shown
using 2 x 40mm screws per bracket. Prior to fitting the seat front, have the floor
in place. Lift the seat front between the uprights. Ensure the top of the panel is
level with the top of the seat bearers and secure with the L-brackets using 2 x
40mm screw per bracket. Fix the panel at the bottom by screwing through the
upright panel into the end of the framing at the bottom of the front panel using
1 x 50mm screw at each end.
Qty.
4
10
62
16
9
1
Important
Have the floor panel in
place prior to fitting the front.
8

3. Secure the floor

Secure the floor using 4 x 50mm screws, screw 2 through each upright into the
ends of the floor framing,using 4 x 70mm screws, screw 2 through the front and
2 through the back panel into the floor framing.
6
50mm
English SS121D
Back view
Rebated rail
40mm
40mm
50mm
70mm
Top view
50mm
50mm
