Rowlinson Modena Arbour Assembly Instructions

Advertisement

Quick Links

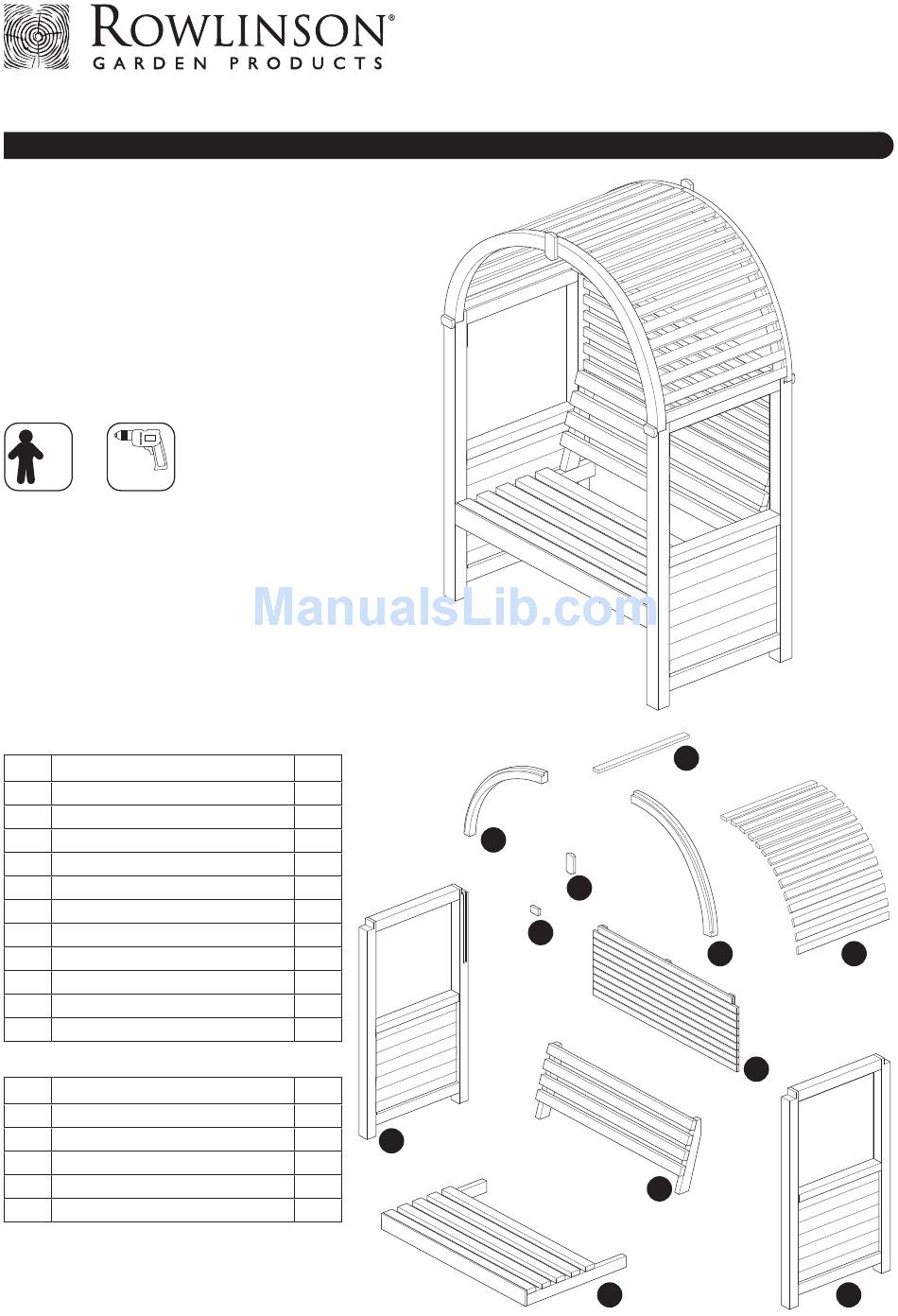

Modena Arbour
Assembly Instructions

Before assembly

• We recommend that time is taken to read
the instructions before starting assembly,
then follow the easy step by step guide.
The instruction sheet is only a guide to
the assembly. Certain items may not be
shown to scale.
• Check all components prior to assembly
• This product should be assembled by no
less than two people
• Drill all components where indicated
x 2
Drill

Recommended tools for assembly

• Power drill/screwdriver
• 3mm drill bit
• Crosshead screwdriver bit
No.

Components

1
Right-hand upright
2
Left-hand upright
3
Seat
4
Seat back
5
Back panel
6
Back right/front left rafter
7
Front right/back left rafter
8
Centre roof slat
9
Roof slat sections
10
Small finial
11
Large finial
No.

Fixing Kit

12
Wooden dowels
13
60mm screws
14
50mm screws
15
40mm screws
16
35mm screws
Qty.
1
1
1
1
1
2
2
1
2
4
2
Qty.
2
14
2
8
84
6
English SS412
7
11
10
4
3
8
6
9
5
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Modena Arbour and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rowlinson Modena Arbour

  • Page 1 Modena Arbour English SS412 Assembly Instructions Before assembly • We recommend that time is taken to read the instructions before starting assembly, then follow the easy step by step guide. The instruction sheet is only a guide to the assembly. Certain items may not be shown to scale.
  • Page 2 1. Seat to uprights Drill four holes in each of the seat frames as shown in the diagram. Position the seat between the two uprights, 360mm from the bottom of the upright. Secure through the drilled holes into the upright legs using 8 x 60mm screws. Important Note: Ensure rebate slots for back panel are on the...
  • Page 3 3. Back panel Slot the back panel into the rebates of the uprights and slide down until it rests on the seat back. Ensure the top edge of the panel is level with the top of the uprights. Secure the in place using 6 x 35mm screws. 35mm 4.
  • Page 4 Green Lane components shown and are only correct at time Wardle Nr. Nantwich of printing. We reserve the right to change the Cheshire specification of our products without prior notice. CW5 6BN 2017 © Rowlinson Garden Products Ltd www.rowgar.co.uk...
