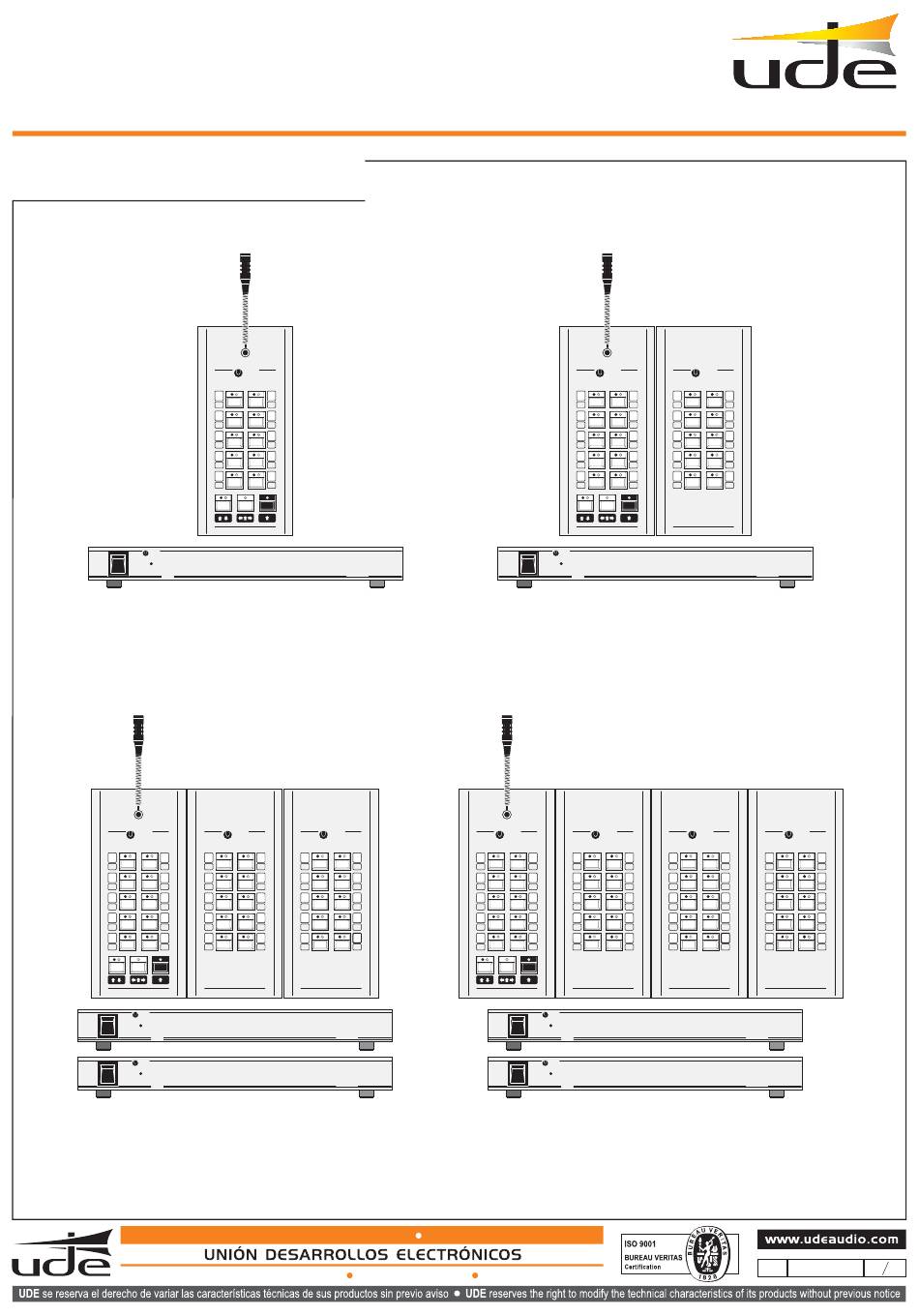

  • Page 1 PZ-510/M PZ-520/M PZ-530/M PZ-540/M MICROPHONES WITH ZONE SELECTORS PZ-510 PZ-510 PZ-511 UDE WZ-2 UDE WZ-2 PZ-510/M PZ-520/M PZ-510 PZ-511 PZ-511 PZ-510 PZ-511 PZ-511 PZ-511 UDE WZ-2 UDE WZ-2 UDE WZ-2 UDE WZ-2 PZ-530/M PZ-540/M EQUIPOS Y SISTEMAS MEGAFONÍA / INTERCOM PUBLIC ADDRESS SYSTEMS 610.138A...
  • Page 2 The function for muting the music signal while messages are being broadcast is a standard feature in the amplifiers UDE AX-109, AX-309 and AX-459. In other models in the range (AX-59, PX-9) this is obtained with the multifunction priority module and pre-message carillon WX-30 or with the simple priority module WX-33.

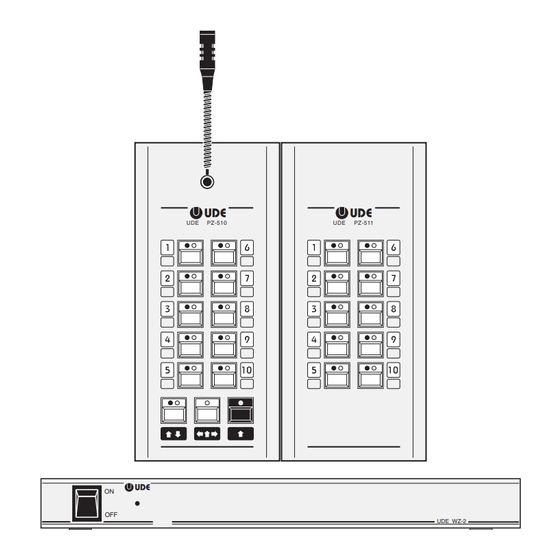

  • Page 3 PZ-510/M / PZ-520/M / PZ-530/M / PZ-540/M DESCRIPTION PZ-510 Microphone for announcements with gooseneck and table stand (console) with 10 zones selector, all-call selector, and "speak" push-button, build-in. Luminous signal build in each zone selector and all-call selector. Lamp "speech" build-in (lamp is "ON" if the system is equipped with chime board WX-30).
  • Page 4 PZ-510/M / PZ-520/M / PZ-530/M / PZ-540/M BASIC INSTALLATION DIAGRAMS PZ-510/M PZ-540/M PZ-510 PZ-511 PZ-511 PZ-511 PZ-510 PZ-510 PZ-511 PZ-511 PZ-511 PZ-510 WZ-2 WZ-2 WZ-2 230 V. 230 V. 230 V. CA-03 1-10 1-10 21-30 11-20 31-40 MICRO 1 100 V...
