IPU-100P
PAGING DESK
INDEX
UNION DESARROLLOS ELECTRONICOS
Barcelona
Avda. BARCELONA, 24
08970 - SANT JOAN DESPÍ
BARCELONA - ESPAÑA
User Manual
00.00

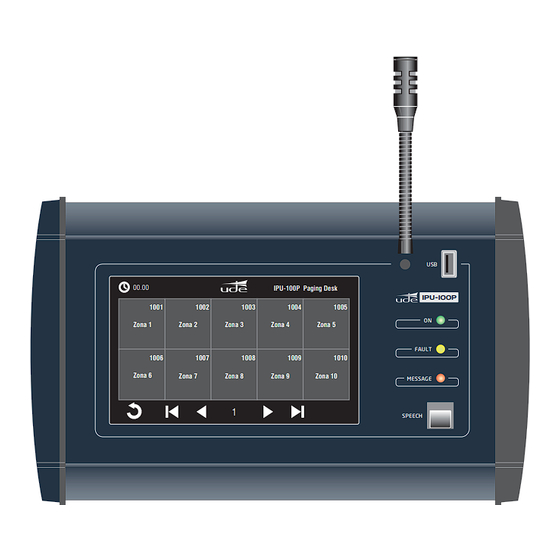

IPU-100P Paging Desk
1001
1002
1003
1004
Zona 1
Zona 2
Zona 3
Zona 4
1006
1007
1008
1009
Zona 6
Zona 7
Zona 8
Zona 9
1
1.- TECHNICAL DATA
2.- TYPICAL APPLICATION OF IPU-100P
3.- FRONT AND REAR VIEW
4.- DEVICE CONFIGURATION (WEBSERVER)
4.1.- Home page (HOME)
4.2.- SIP Configuration
4.3.- Extension SIP Configuration
4.3.1.- Erasing & Editing
4.3.2.- P.A. Zones edit page
4.4.- Device Configuration (Device)
4.5.- Time Configuration (TIME)
4.6.- Date Configuration (DATE)
4.7.- Reset to Factory
4.8.- Remote Reboot
5.- INITIALIZE PROCESS
5.1.- Initialize process
5.2.- P.A. Buttons Display
5.3.- Main screen description
5.4.- Select Zones
UDE reserves the right to modify the technical characteristics of its products without previous notice
Tel: +34 93 477 28 54
Fax: +34 93 261 17 52
ude@udeaudio.com
Audio over IP
USB
IPU-100P
1005
ON
Zona 5
FAULT
1010
Zona 10
MESSAGE
SPEECH
Madrid
C/ LUIS I, 88, 3ª planta
Tel: +34 91 311 60 76
28031 - MADRID
Fax: +34 91 450 19 97
ESPAÑA
centro@udeaudio.com
PAGE
2
3
4
6
7
9
12
13
14
20
22
22
23
23
24
24
25
26
27
PUBLIC ADDRESS
Systems
610.462A
1
28
Rev. 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPU-100P and is the answer not in the manual?

Questions and answers

Related Manuals for Ude IPU-100P

Summary of Contents for Ude IPU-100P

  • Page 1 5.1.- Initialize process 5.2.- P.A. Buttons Display 5.3.- Main screen description 5.4.- Select Zones UNION DESARROLLOS ELECTRONICOS UDE reserves the right to modify the technical characteristics of its products without previous notice Barcelona Madrid PUBLIC ADDRESS C/ LUIS I, 88, 3ª planta...

  • Page 2: Technical Data

    IPU-360 SIP server that will centralize and coordinate all communication of IP paging elements ensuring maximum functionality of all of them, with minimal risk. The IPU-100P paging desk allow the user to manage the IP PA system calling individual or groups of zones with user friendly graphic interface in a 7” full color touch screen.

  • Page 3: Typical Application Of Ipu-100P

    0dB audio signal. The IP Paging Desk, model IPU-100P, through an intuitive graphical interface, built-in a 7 " color touch screen, allows the operator to navigate and select the areas where to send a message using the microphone on the same device.

  • Page 4: Front View / Rear View

    Remember! If you experience problems with the LINK FAIL, so if it ever turns on sporadically, then it is recommended to reboot the IPU-100P and IPU-100 or IPU-1025 to solve the communication problem between them. If the problem is no solve it, contact the technical staff of the installation.
  • Page 5 IPU-100/P 100-240 VAC The IPU-100P has 2 powering methods available; the power input by the IPW-25 adaptor, is the highest-priority entry and disables the rest. The less priority power is the audio link power supply. I / O. This connector allows connection of an IPU-100P or allows the expansion and control, of external devices through the digital bus, also has a balanced analog audio input and one output that allow the exchange of audio between the IP Paging Desk and the IPU-100 (encoder / decoder).

  • Page 6: Device Configuration (Webserver

    EXTENSION SIP CONFIGURATION (ONLY IPU-100P mode). The public address zone configuration with an IPU-100P desk control must be done with a IPU-100 codifier. It is not possible to make the desk control configuration with the touch screen. The extension web server of the IPU-100 menu will allow erasing all IPU-100P zone buttons or editing the PAbuttons of the IPU-100P desk control.

  • Page 7: Home Page (Home

    If you have any doubts consult the technical department of UDE. Menus.
  • Page 8 Shows the state of the activation signals of different basic functions such as: VOX activated, MIC activated, etc... Sensor level status. It shows the voltage measurement of the sensors included on the device: 24V Adaptor, 24V Backup Battery, VOX signal level detected, Microphone supply. Area 5: Time and Date. User Manual - IPU-100P 610.462A Rev. 0...

  • Page 9: Sip Configuration

    Choose ON to use the UDE PAsignaling information. In case of priority or IPU-100P installations, the box must stay in ON option. In case of 100% SIP standard compliance OFF option. SIP Server IPAddress (format: XXX.XXX.XXX.XXX): Defines the IP address where the SIP server host.
  • Page 10 It is the IPU-100 SIP identifier for registering to the IPU-360 (SIP server) to be identified as unique equipment in the SIP net, of the public address by IP protocol. In the systems with UDE Audio equipments, the extensions must be contained in a specific rank: Extensions from 1000 to 1999: Decoders...
  • Page 11 SIP Streaming Priority Level (Max:01...min:99): f the UDE PA system is active and the IPU-100 in codifier mode, a priority can be applied and the IPU-360 will manage. This priority should be between 01 (max priority) in consequence will cut other emitters and 99 (lowest priority).

  • Page 12: Extension Sip Configuration

    4.3 Extension SIP Configuration (ONLY IPU-100P mode). The public address zone configuration with an IPU-100P desk control must be done with a IPU-100 codifier. It is not possible to make the desk control configuration with the touch screen. The extension web server of the IPU-100 menu will allow erasing all IPU-100P zone buttons or editing the PAbuttons of the IPU-100P desk control.

  • Page 13: Erasing & Editing

    Depending on the amount of information saved on memory, the erasing process can spend from 10 seconds to 44 minutes to erase all data. The IPU-100P screen while the erase process is execute will keep out of work for any paging call. Also a deleting data message will be printed to give user information.

  • Page 14: P.a. Zones Edit Page

    4.- DEVICE CONFIGURATION (WEBSERVER) 4.3.2 P.A. ZONES EDIT PAGE (Extensions). Each IPU-100 can be linked only with one IPU-100P. The connection between the codifier and the desk control must be done point-to- point, and other configuration must be rejected. To access the edit zone page, click on “...

  • Page 15: Add Extension

    (number 1) is automatically processed. Extension cache: The extension are saved in a cache memory waiting to be sent to the IPU-100P (the Rank of the extensions is between 1000 and 1999). For example when extension 1300 (typing 300), and clicking “...
  • Page 16 IPU-100P 4.- DEVICE CONFIGURATION (WEBSERVER) Button configuration example This example contains the configuration of 3 IPU-100P buttons, with this characteristics: 00.00 IPU-100P Paging Desk 1001 #002 #003 Zone 1 Main room Yard 1001 #002 #003 Zone 1 Main room Yard...
  • Page 17 In button number one has only one extension to call (1001), there is no other extension to configure and configuration must be uploaded. Click on button: Send data. Button 1 configuration has been saved and screen shows the new button. 00.00 IPU-100P Paging Desk 1001 Zona 1 User Manual - IPU-100P 610.462A Rev. 0...
  • Page 18 In button number two has only two extensions to call (1002, 1400), there is no other extension to configure and configuration must be uploaded. Click on button: Send data. Button 2 configuration has been saved and screen shows the new button. 00.00 IPU-100P Paging Desk 1001 #002 Zone 1 Main room User Manual - IPU-100P 610.462A Rev. 0...
  • Page 19 Click on button: Send data. Button 3 configuration has been saved and screen shows the new button. 00.00 IPU-100P Paging Desk 1001 #002 #003 Zone 1 Main room Yard User Manual - IPU-100P 610.462A Rev. 0...

  • Page 20: Audio Link

    The IPU-100 will act as an audio emitter point (VOICE mode) being synchronized with the IP Paging Desk connected to the AUDIO LINK. Attention! Do not use the IPU-100P Mode when no IP Paging Desk is connected to the AUDIO LINK terminal as it can lock the IPU-100 temporarily until you perform a reboot of the device.

  • Page 21: Server Specifications

    DESK.MIC IN Volume (format: XXX): Select between 070 and 127, the gain level to be applied to audio from the desk control IPU-100P connected to the IPU-100. This configuration parameter can only be used in IPU-100P modeAlways use a 3-digit format.

  • Page 22: Date Configuration (Date

    Enter the day, month and year desired, considering always use 2 digits format. Click on "Save DATE" to update the system calendar. Always use the format: (dd/mm/yy) Example: Day (dd): 20 Month (mm): 01 Year (yy): 13 User Manual - IPU-100P 610.462A Rev. 0...

  • Page 23: Reset To Factory

    IPU-100 4.- DEVICE CONFIGURATION (WEBSERVER) 4.7 RESET TO FACTORY (Reset to Factory) The IPU-100 can be configured with the factory configuration. IPU-100 Caution! The erasing process is irreversible; in case of error the memory information cannot be recovered. 4.8 REMOTE REBOOT (Reboot) The IPU-100 can be remote rebooted just click to the Reboot icon on the left menu and confirm clicking on...

  • Page 24: Initialize Process

    When the device is initialize shows the first processing screen, in that moment the desk control is managing the information and synchronizing with the IPU-100 or IPU-1025 to be connected to the net. IPU-100P Paging Desk Initializating IPU-100P ... Please Wait The main screen have different areas: 08.15...
  • Page 25 In page number 1, there are In page number 2, there are In page number 3, there are the the 10 first buttons. 10 buttons more. 3 last buttons. 7 buttons are inactive. User Manual - IPU-100P 610.462A Rev. 0...
  • Page 26 Area 3: PA zone buttons. The page has a maximum number of 10 zones and in the system can be until 25 pages, the whole system can manage 250 PA zones from one IPU-100P. Area 4: Navigation icons. The navigation icons allow move through all pages of the desk control. The different icons are: 00.00...

  • Page 27: Select Zones

    Zona 7 Zona 8 Zona 9 Zona 10 just press the PTT SPEECH again (the IPU-100P keeps in memory the last zone selection) 00.00 IPU-100P Paging Desk The operator can reset all button selection tapping on the 1001 1002 1003...
  • Page 28 User must begin to speak when the SPEECH RED led is on. Even if pressing the Speech button the "Message" LED is off, the IPU-100P will prompt a message in the up-right corner. Finally if the "Message" LED never turns on, contact the technical staff of the installation.
