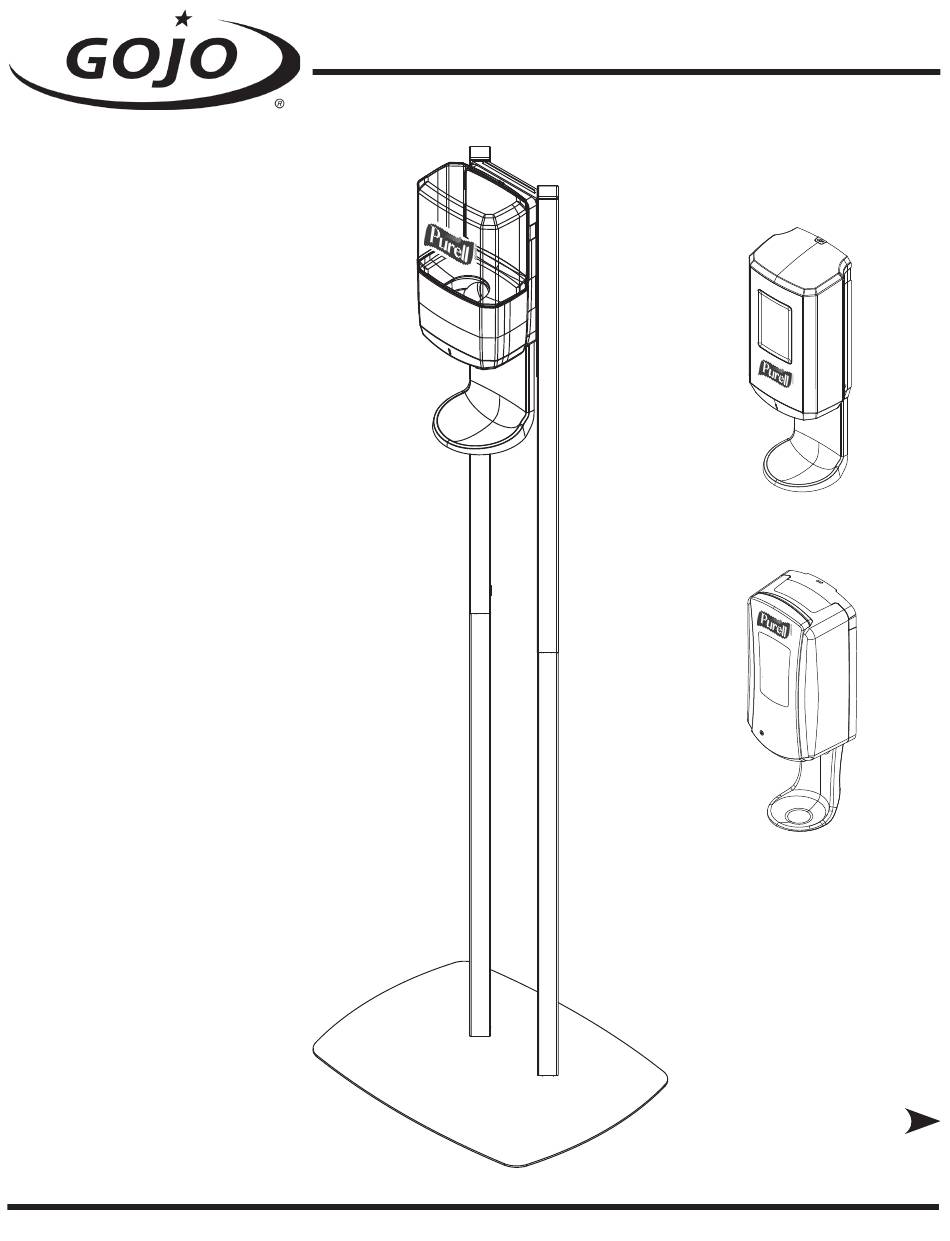

- Page 1 PURELL® CS6/8 ES 6/8 LTX-12™Dispenser Floor Stand SETUP INSTRUCTIONS WORKS FOR: C6 / C8 LTX-12™ Continued on opposite side. <23818-2> 0620 <23818-3ABCD> 0620 Questions? Call customer service at 1-800-321-9647.
- Page 2 FRAME ASSEMBLY & GRAPHIC INSTALLATION HOLE (for push pin) END A LOWER TUBE PUSH END B END A SLOT FRONT BASE BACK FLAT HEAD SCREW ALLEN WRENCH Position lower tubes, with End A at top, as shown. Make sure each Fit each tube of upper frame down over End A of each lower tube.
- Page 3 DISPENSER INSTALLATION Screw Hole Location REFILL NOZZLE ES6 / ES8 Screw Hole Location CS6 / CS8 LTX-12™ Mount dispenser to mounting plate by matching its key holes in its back Install refill into dispenser. panel onto all (4) holes of the mounting plate as shown above. Complete installation by closing cabinet to hide refill nozzle.
- Page 4 PURELL® CS6/CS8 ES 6/ES8 LTX-12™ présentoir de plancher et distributeur INSTRUCTIONS D’INSTALLATION Fonctionne Pour C6 / C8 LTX-12™ Suite au verso. <23818-2> 0620 <23818-3ABCD> 0620 Questions? Appelez le service à la clientèle au 1 800 321-9647.
- Page 5 ASSEMBLAGE DU CADRE ET INSTALLATION DES ILLUSTRATIONS TROU (pour le clou à dessin) EXTRÉMITÉ A TUBE INFÉRIEUR CLOU À DESSIN EXTRÉMITÉ B EXTRÉMITÉ A FENTE AVANT BASE LANGUETTE ARRIERE VIS À TÊTE FRAISÉE CLÉ HEXAGONALE Placez les tubes inférieurs avec l’extrémité A au haut, comme Faites passer chaque tube du cadre supérieur sur l’extrémité...
- Page 6 INSTALLATION DU DISTRIBUTEUR emplacement du trou de vis RECHARGE EMBOUT ES6 / ES8 emplacement du trou de vis CS6 / CS8 LTX-12™ Montez le distributeur sur la plaque de montage en faisant correspondre ses Installez une recharge dans le distributeur. trous de clé...
Need help?
Do you have a question about the PURELL C6 and is the answer not in the manual?
Questions and answers

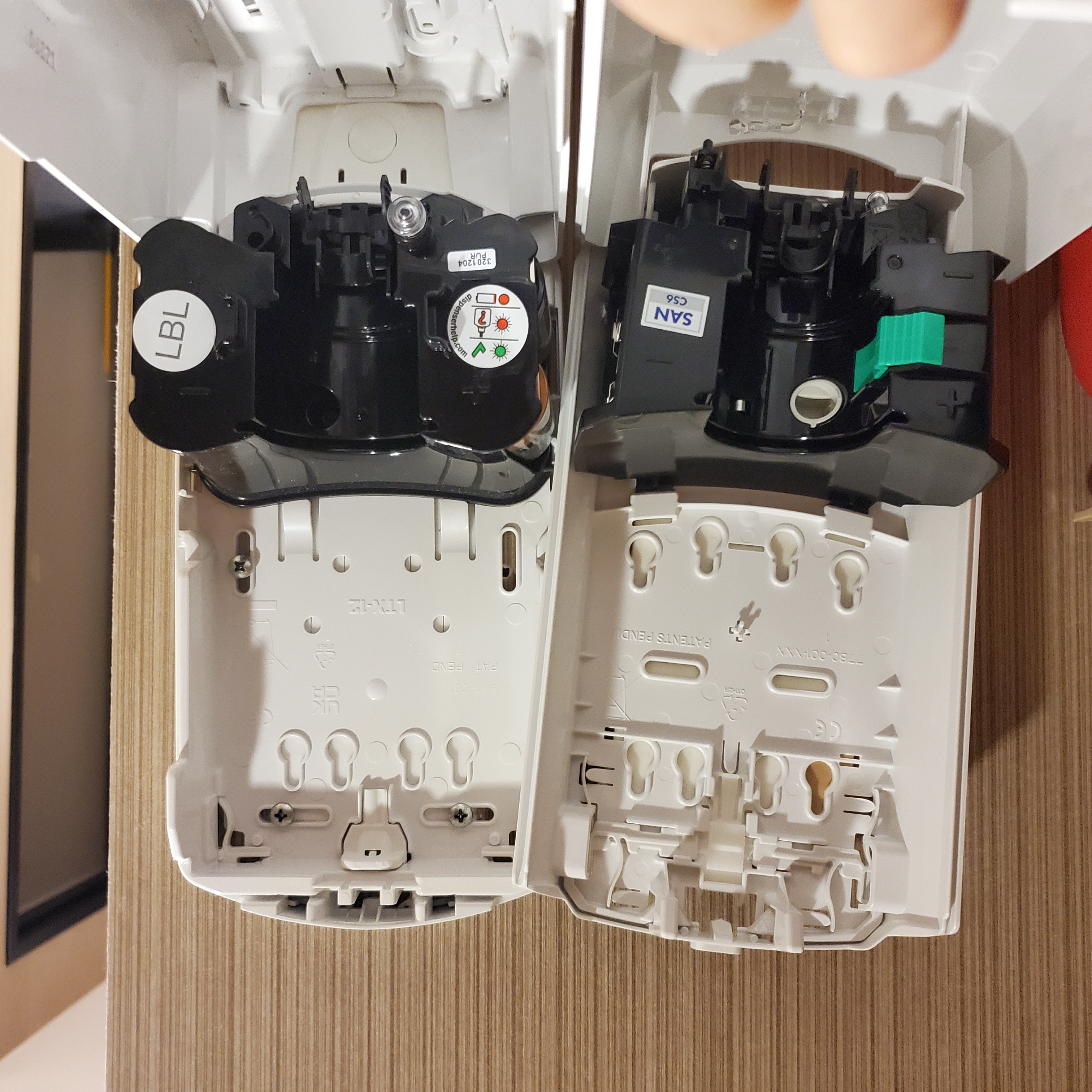

Hello, I am replacing LTX-12 sanitizer dispensers with CS6 sanitizer dispensers. Is it possible to use the same sanitizer packs from the LTX-12 dispensers on the CS6 dispensers. The dispense holes are not in same locations. Pic attached showing different hole locations for sanitizer dispensing. Please advise so I know how to proceed. Thank you.
