Delta Light TWEETER X W 930 Installation Instruction

Installation instruction

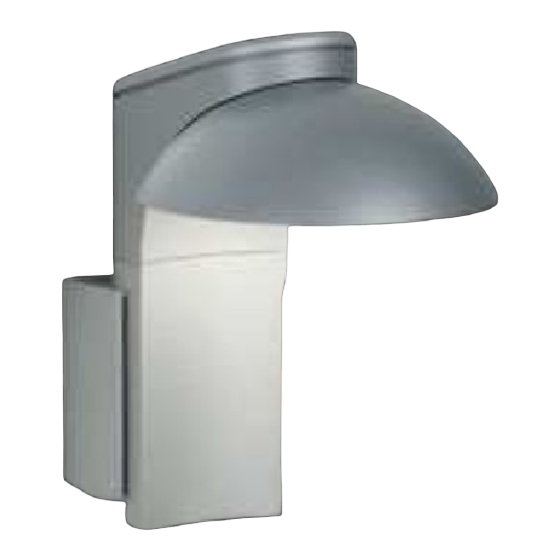

TWEETER X W 930
6 206 40 811 930
= N
TWEETER X W 950
6 206 40 811 950
= N
120mm
4"-3/4
0°-45°
100mm 350°
3"-15/16
71mm
50mm
2"-13/16
2"
HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca
Ø134mm
Ø5"-5/16

Application

Wall surface mounted
Installation to a standard 4" octagonal box with optional Mud kit or coverplate
202mm
For indoor & outdoor use
7"-15/16

Color Finish

N - Dark Grey

Light source

1x POWERLED WHITE 7,1W

Product description

Corrosion protected, powder coated aluminum
Adjustable with patented rotation/aiming system
Electronic power supply included. 120V input, 350mA current controlled class 2 output.
Suitable for wet, damp or dry locations
Dust-tight - Protected against splashing water
Weight: 1,8lbs 0,8kg

Accessories not supplied (option)

6 207 02 02
6 204 99 116
NORTH AMERICAN EDITION
MUD KIT 2
COVERPLATE S 116
TWEETER X W
4"
IP54
Conforms to ANSI/UL Std. 1598
Cert. to CAN/CSA Std. 22.2 No. 250.0
Last Update ALLU 15/10/2018
