Installation instruction

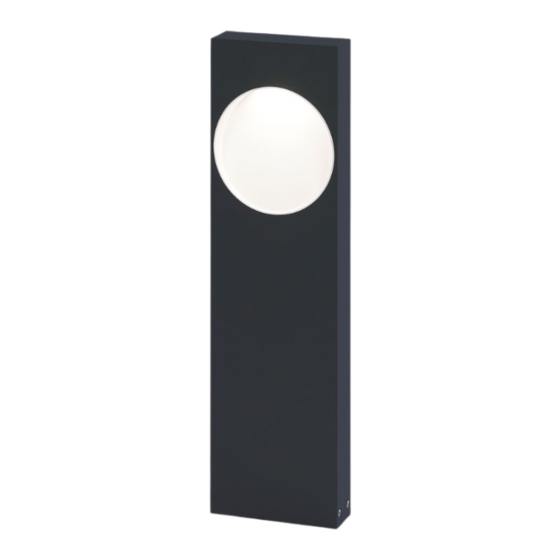

SKELP X P 40
6 320 23 12
= A / N
SKELP X P 70
6 320 26 12
= A / N
5"-15/16
50mm
150mm
2"
5"-15/16
410mm
16"-1/8
HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca
50mm
150mm
2"
Application
710mm
Floor surface mounted
27"-15/16
For indoor & outdoor use
Color Finish
A - Alu grey
N - Dark grey
Light source
1 x POWERLED 7W / 3000K
Product description
Powder coated corrosion protected aluminum construction
Electronic power supply included. 120V / 60Hz input, 350mA current controlled
class 2 output.
5' SJ00W cable 3x18 AWG included
Suitable for wet locations
Dust-protected - Protected against splashing water
SKELP X P 40 / Weight:
SKELP X P 70 / Weight:
Accessories not supplied (Option)
229 01 12
229 02 07
6 216 12 00
6 216 12 02
NORTH AMERICAN EDITION
5.7lbs
2,6kg
11.4lbs
5,2kg
PIN 12
PLATE 7
JUNCTION BOX
IP68 CONNECTOR 3P
SKELP X P
IP54
Conforms to ANSI/UL Std. 1598
Cert. to CAN/CSA Std. 22.2 No. 250.0
Last Update 05/09/2014
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Delta Light SKELP X P 40
Summary of Contents for Delta Light SKELP X P 40
- Page 1 Electronic power supply included. 120V / 60Hz input, 350mA current controlled class 2 output. 5’ SJ00W cable 3x18 AWG included Suitable for wet locations Dust-protected - Protected against splashing water IP54 SKELP X P 40 / Weight: 5.7lbs 2,6kg SKELP X P 70 / Weight: 11.4lbs 5,2kg...
- Page 2 SAVE! MOUNTING TEMPLATE 65mm 2"-17/32 32,5mm 1"-1/4 25mm 31/32" EXAMPLE: SKELP X P 40 / 6 320 23 12 Use 1/2” conduit or any other local code compliant method! OPTION Use 1/2” conduit or any JUNCTION BOX other local code compliant...
- Page 3 SKELP X P Installation instruction Maintenance instructions NORTH AMERICAN EDITION HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca...
