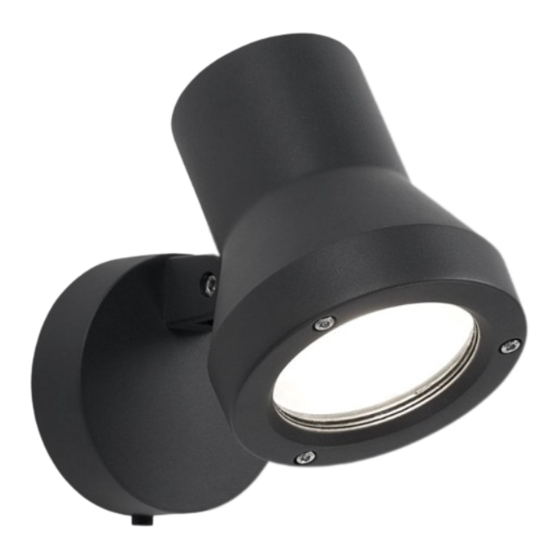

Delta Light KIX 1 930 Installation Instruction

Installation instruction
KIX 1 930
6 232 101 811 930
= A / N
KIX 1 93011
6 232 101 811 931
= A / N
KIX 1 93030
6 232 101 811 932
= A / N
KIX 1 93055
6 232 101 811 933
= A / N
KIX 1 935
6 232 101 811 950
= A / N
KIX 1 93511
6 232 101 811 951
= A / N
KIX 1 93530
6 232 101 811 952
= A / N
KIX 1 93555
6 232 101 811 953
= A / N
Ø105mm
Ø4"-1/8
122mm
4"-13/16
Ø94mm
Ø3"-11/16
HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca
Application
Wall surface mounted
For exterior and interior use
Installation to standard 4" octagonal box with optional coverplate or mudkit installation
Color Finish
A - Alu gray
N - Dark gray
Light source
1 x POWERLED 7,1W
Product description
Surface treated aluminum construction
remote 24Vdc, Class 2 power supply required
Suitable for dry, damp locations or wet locations
Dust-tight - Protected against water jets
Weight: 2.0lbs 0,9kg
Accessories not supplied (not supplied)
90°
232 10 00
232 10 03
31mm
Options
1"-1/4
6 207 02 02
6 204 00 116
NORTH AMERICAN EDITION
IP65
KAP KIX
HONEYCOMB KIX
MUD KIT 2
Coverplate R116
KIX 1
4"
Conforms to ANSI/UL Std. 2108
Cert. to CAN/CSA Std. 22.2 No. 9.0
1
Last Update ALLU 15/10/2018
